High Vacuum Fast Acting Protection Valve for Semiconductor Applications

High Vacuum Fast Acting Protection Valve for Semiconductor Applications

Our high-vacuum fast-acting protection valve is engineered for critical applications in semiconductor processing and chip manufacturing. Featuring rapid pneumatic response, robust axial sealing, and multi-material construction (aluminum/stainless steel), this valve provides reliable emergency shut-off and contamination control for high-vacuum systems ranging from 5×10⁻⁸ Pa to 1×10⁵ Pa.

Inquire Now

Product Details

High-Performance High Vacuum Fast Protection Valve

This high-performance High Vacuum Fast Protection Valve is a safety emergency cut-off device specifically designed for semiconductor processes, chip storage, and long-term stable high-vacuum operations. Utilizing a rapid pneumatic gate structure, it is suitable for the full range from high vacuum to atmospheric pressure (5×10⁻⁸ Pa to 1×10⁵ Pa). It can extremely quickly cut off airflow in the event of a probabilistic failure of equipment components, preventing gas leakage, environmental contamination, or system damage. With core advantages such as rapid response, stable dynamic balance, corrosion resistance, and full flange compatibility, it is an essential safety component for high vacuum systems, ensuring emergency protection, pollution prevention, and leak defense in high-security environments.

Core Features
Rapid Pneumatic Response: Utilizes fast pneumatic driving (double-acting or with solenoid valve) to cut off airflow in milliseconds for emergency shutdown protection.
Coupled Feed & Axial Sealing: Features a unique coupled feeding device and axial sealing design, ensuring excellent airtightness and an extended service life.
Precision Multi-Drive Control: Supports both pneumatic double-acting and pneumatic with solenoid valve modes. The solenoid models support emergency interlocking for enhanced safety.
Universal Flange Compatibility: Compatible with ISO-F, CF-F, ASA, JIS B, and ISO-K series, making it a versatile choice for various vacuum pump accessories and systems.
Dual Material Options: Available in Stainless Steel or Aluminum Alloy to provide superior corrosion resistance across different process environments and temperatures.
Stable Sealing: Employs high-quality rubber ring seals to meet the stringent requirements of ultra-high vacuum stability.

Technical Specifications

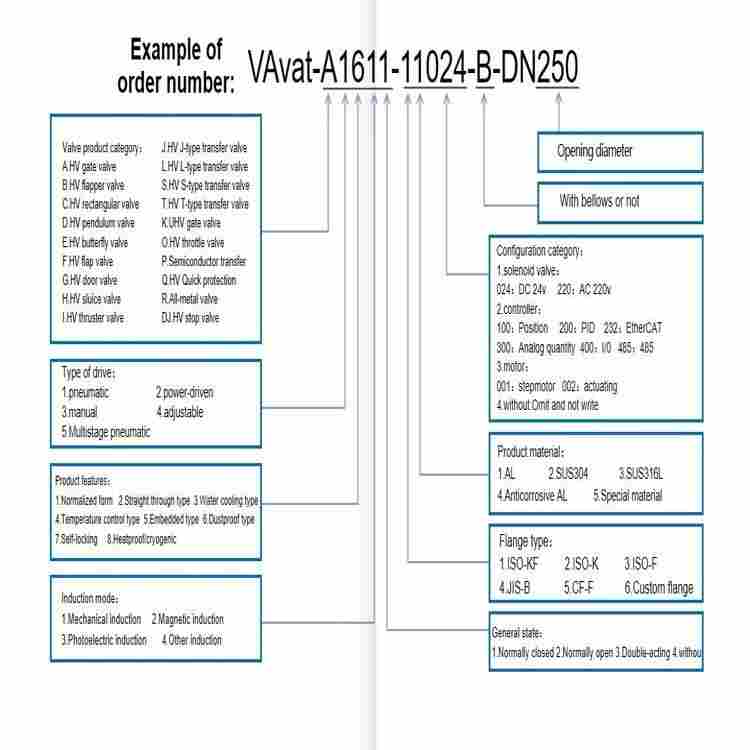

Bore Size (DN)	Main Material	Actuator Type	Example Model Number
DN60 ~ 320	Aluminum Alloy / Stainless Steel	Pneumatic, Double Acting	VAvat-Q1113-21-DN60~320
DN60 ~ 320	Aluminum Alloy / Stainless Steel	Pneumatic, with Solenoid Valve	VAvat-Q1113-21024-DN60~320

Primary Application Fields

Our protection valves are integrated into the most demanding industrial vacuum solutions across various sectors:

Semiconductor & Chip Storage: Essential for preventing particle contamination in continuous, long-term high-vacuum manufacturing environments.
Scientific Research: Protects ultra-high vacuum experimental setups and material analysis equipment from environmental interference.
Toxic Gas Processing: Rapidly isolates systems containing hazardous or toxic gases to protect personnel and the environment.
Industrial Vacuum Equipment: Ideal for vacuum coating, vacuum furnaces, and other systems requiring high-level stability and dual-layer protection.

Why Choose Our High Vacuum Fast Protection Valve?

When it comes to vacuum valve technology, our fast protection valve stands out as the ultimate guardian for semiconductor and chip manufacturing. Unlike standard valves, it offers millisecond response times and comprehensive safety interlocking. Whether you are dealing with corrosive gases or require extreme airtightness, our valve provides a robust solution that combines rapid response, high reliability, and wide adaptability.

The design allows for installation in any orientation without compromising the vacuum seal, and the dynamic balance ensures that the valve operates smoothly even after thousands of cycles. It is the preferred choice for facilities that prioritize safety and uptime.

Frequently Asked Questions (FAQ)

1. What is the primary purpose of this valve?

It is used as a standard safety cut-off for high vacuum systems in semiconductor and chip production to prevent contamination and leakage during equipment failure.

2. How fast is the response time?

Thanks to the high-speed pneumatic actuator, the valve can trigger and fully close within milliseconds, ensuring immediate isolation of the vacuum chamber.

3. What flange types are supported?

We support all major standards including ISO-F, CF-F, ASA, JIS B, and ISO-K, ensuring seamless integration into your existing https://www.taixingpump.com/ infrastructure.

4. Can it handle corrosive gases?

Yes, by choosing the stainless steel body option and specific seal materials, the valve exhibits excellent resistance to various corrosive process gases.

Conclusion: The High Vacuum Fast Protection Valve is Suitable for semiconductor manufacturers, research laboratories, and industrial vacuum facilities. The core advantage is its millisecond rapid pneumatic response combined with multi-standard flange compatibility and superior axial sealing for ultimate system safety.
