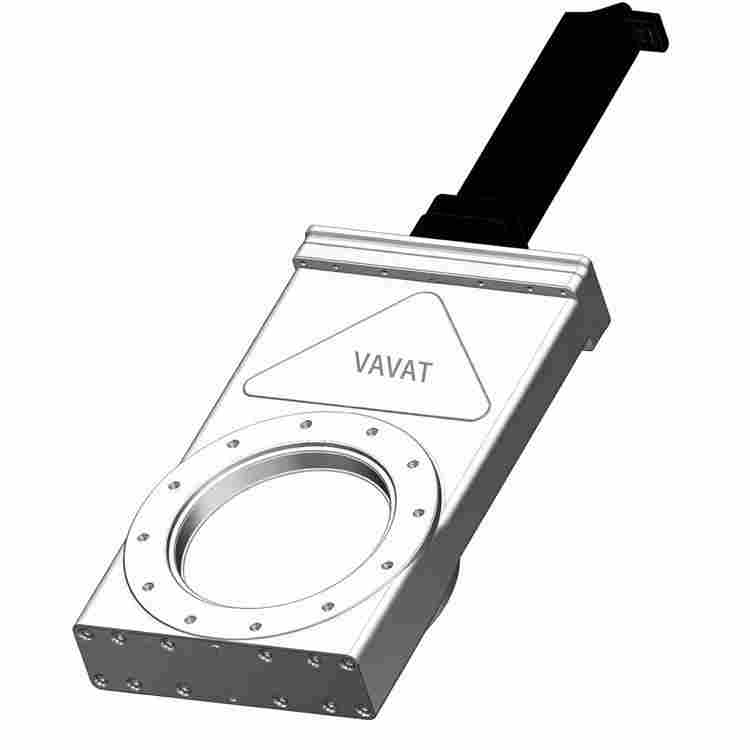

High Vacuum Aluminum Gate Valve for Turbo Molecular Pump Isolation

The high-performance High Vacuum Gate Valve Aluminum Alloy Series is a standard vacuum isolation device specifically engineered for ultra-high vacuum environments, molecular pump matching, and vacuum isolation conditions. Utilizing a sophisticated slide-plate push-pull opening and closing structure, this series is perfectly suited for the full pressure range from 5×10⁻⁸ Pa to 1×10⁵ Pa. It facilitates rapid isolation and sealing between vacuum pipelines, molecular pumps, and chambers. Characterized by its lubricant-free operation, high reliability, and flexible installation, it has become a core component in scientific research and industrial production.

Core Features & Technical Advantages

• Push-Pull Structure: Ensures smooth operation and excellent conductance, making it the ideal High Vacuum Gate Valve for molecular pump integration.
• Pneumatic Double-Acting Drive: Offers stable and reliable performance. When paired with a solenoid valve, it can be locked in the closed position to eliminate the risk of vacuum loss due to pneumatic failure.
• Premium Aluminum Alloy: Constructed from high-quality imported materials without lubricants, ensuring safety for various imported molecular pumps and extending equipment lifespan.
• Rubber Ring Sealing: Provides a zero-leakage, reliable seal that meets the stringent requirements of any high-end vacuum system.
• Standard Flange Compatibility: Equipped with ISO-B/JIS B standard flanges, ensuring seamless connection and easy installation across diverse vacuum setups.
• Flexible Installation: Can be mounted at any angle, adapting to complex pipeline layouts and limited installation spaces with high cost-effectiveness.

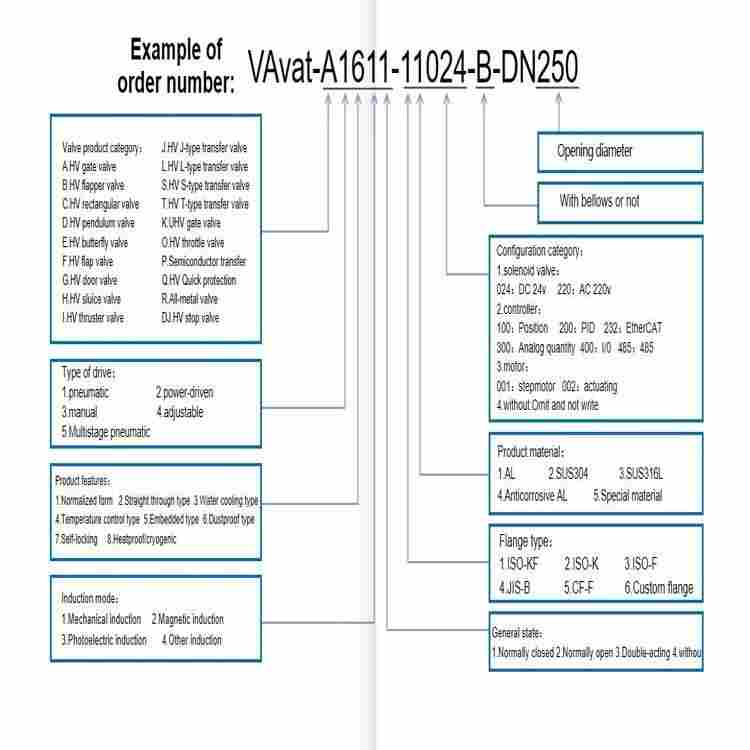

Product Specifications

Wide Range of Applications

This series is widely utilized across multiple sectors requiring precision vacuum isolation solutions:

• Molecular Pump Matching: Acts as the standard isolation valve for imported molecular pumps, protecting the pump from atmospheric pressure during chamber venting.
• Scientific Research: Essential for vacuum pipeline isolation and flow control in laboratories and experimental vacuum apparatus.
• Industrial Production: Applied in various industrial vacuum equipment for chamber isolation and process control.
• System Maintenance: Enables fast isolation during maintenance and inspection, significantly reducing downtime and ensuring system safety.

Why Choose the Aluminum Alloy Series?

The Aluminum Alloy High Vacuum Gate Valve is designed for scenarios demanding high reliability and low maintenance. Its core advantage lies in being "Molecular Pump Friendly." By eliminating lubricants, it prevents contamination of sensitive molecular pump components. Furthermore, the use of mechanical sensors provides high precision and strong anti-interference capabilities, even in complex industrial environments. Maintenance is remarkably efficient, typically requiring only 5 to 10 minutes, which drastically lowers long-term operational costs.

Summary

The High Vacuum Gate Valve Aluminum Alloy Series combines a lubricant-free design, rapid maintenance, and high reliability into a single package. It is the benchmark for high-end vacuum isolation. Whether you are managing a scientific research project or a large-scale industrial production line, this valve provides a safe, stable, and efficient solution for all your vacuum isolation needs.
