The Pirani capacitive gauge PCR 280 is used with the gauge display
The Pirani capacitive gauge PCR 280 is used with the gauge display
The Pirani capacitive gauge PCR 280 is used with the gauge display
The Pirani capacitive gauge PCR 280 is used with the gauge display
The Pirani capacitive gauge PCR 280 is used with the gauge display

The Pirani capacitive gauge PCR 280 is used with the gauge display

Product description Pirani / capacitive gauge PCR 280, built-in Pirani and capacitive diaphragm, this gauge has a measurement accuracy independent of gas type, vacuum range 5X10-5 to 1500 hPa, DC voltage: 15-30 V, output signal: 1.2 - 8.68 V, can be used with vacuum gauge display.
  • Item NO :

    PCR 280

Pirani capacitive vacuum gauge PCR 280

Pirani Capacitive Gauge PCR 280 Available Models:

Vacuum gauge PCR 280 80 °C DN 16 ISO-KF



Vacuum gauge PCR 280 80 °C DN 16 CF-F



Pirani Capacitive Gauge PCR 280 Technical data:

Model

Interface

Measuring range hPa

Bake temperature

Measurement accuracy

Ultimate pressure

Weight g

PCR 280

DN 16 ISO-KF
DN 16 CF-F

5X10-5 to 1500

80 °C

5X10-4 to 1X10-3 hPa: ± 50 %
1X10
-3 to 100 hPa:   ± 15 %
100 to 950 hPa: ± 5 %
950 to 1100 hPa: ± 2.5 %

5,000  hPa

120



Pirani Capacitive Gauge PCR 280 Size and pumping speed:

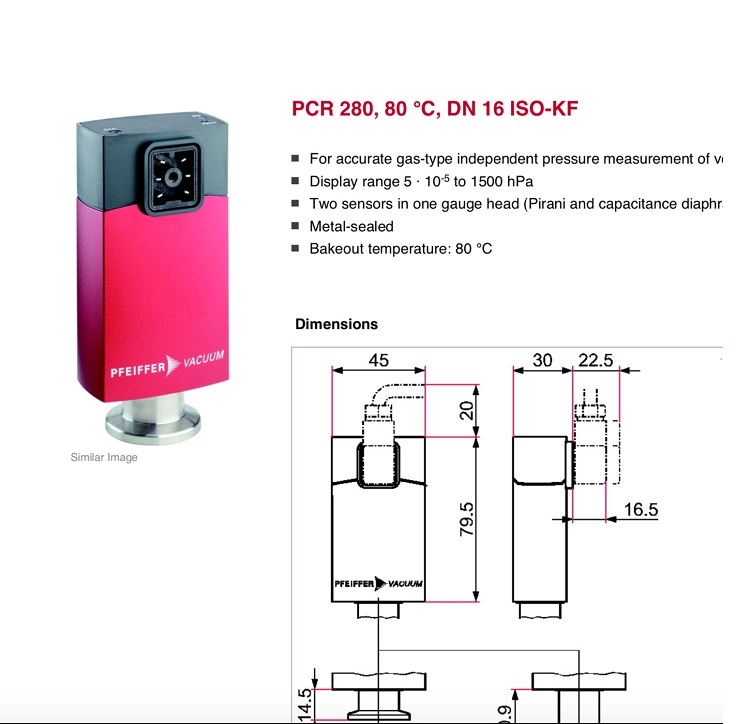

Pfeiffer Pirani / Capacitive Vacuum Gauge PCR 280 dimensional drawing
