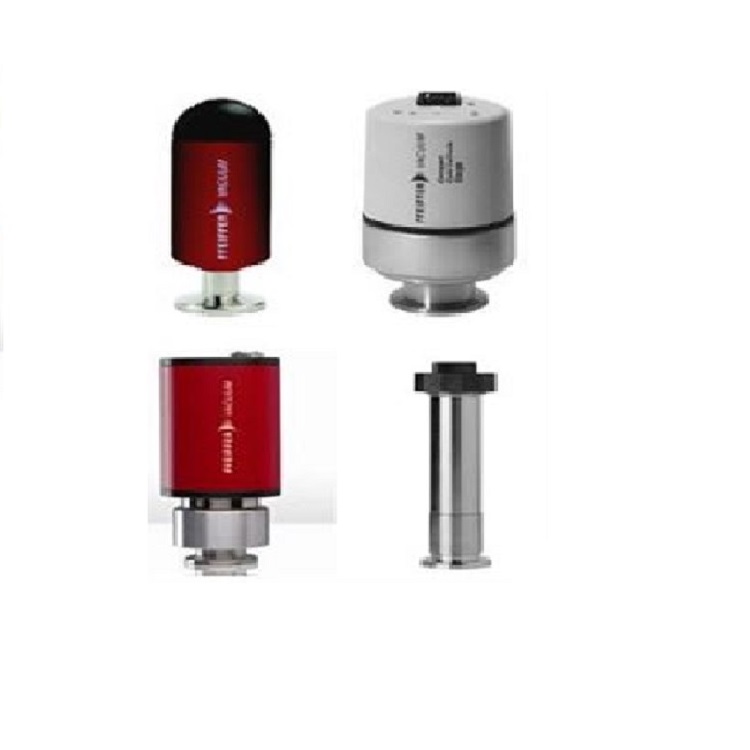

Pfeiffer vacuum gauge

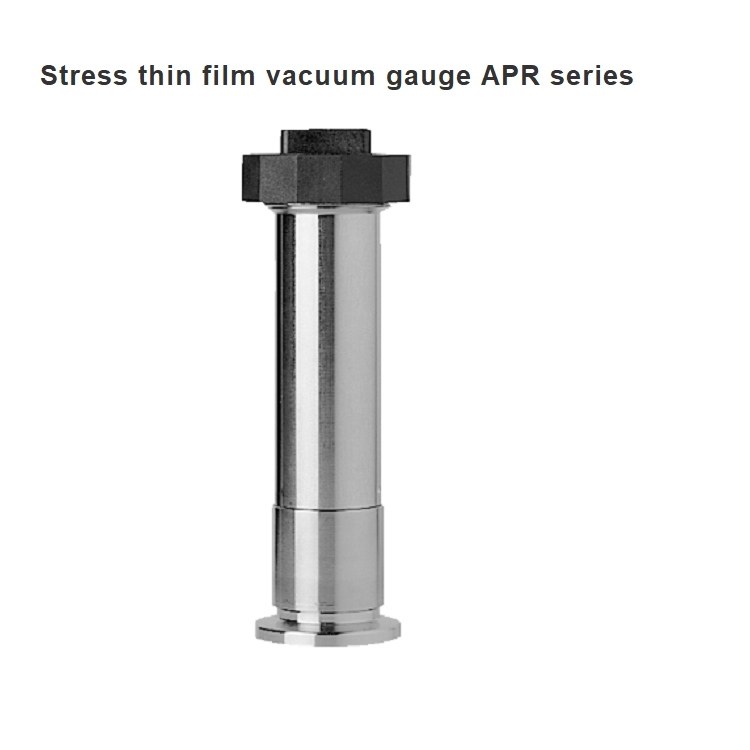

Stress thin film vacuum gauge APR series

Stress thin film vacuum gauge APR series

Product description The APR series of stress thin film gauges measuring from 1 hPa to 55,000 hPa, the robust design of the gauges for harsh industrial environments, and the stress film gauges APR series are corrosion resistant and can measure a wide range of gases or gas mixtures. Models include stress film gauge APR 250/APR 260/ APR 262/APR 265/ APR 266/ APR 267, which can assist customers in selection and provide perfect after-sales service

Inquire Now

Product Details

• Stress film vacuum gauge APR series Product advantages:

· 1. It can only measure dynamic pressure changes, not static measurements

· 2. The vacuum gauge has simple structure, small size, light weight and long service life

· 3. Anti-corrosion, radiation resistance

· 4. Can be used with Pfeiffer vacuum gauge display TPG

Stress film vacuum gauge APR series technical parameters:

Model	Interface	Vacuum gauge measuring range	Operating temperature	Measurement accuracy	Ultimate pressure	Weight（g）
APR 250	DN 16 ISO-KF	0.1 hPa to 1100 hPa	10- 80°C	2 % F.S	3,000 hPa 2,250 Torr 3,000 mbar	120 g
APR 260	DN 16 ISO-KF DN 16 ISO-KF	0.1 hPa to 1100 hPa	10- 80°C	1 % F.S	3,000 hPa 2,250 Torr 3,000 mbar	120g
APR 262	G 1/4"	0.2 hPa to 2200 hPa	10- 80°C	2 % F.S	4,000 hPa 3,000 Torr 4,000 mbar	120g
APR 265	G 1/4"	0.5 hPa to 5500 hPa	10- 80°C	2 % F.S	7,500 hPa 5,625 Torr 7,500 mbar	120g
APR 266	G 1/4"	1 hPa to 11000 hPa	10- 80°C	2 % F.S	15,000 hPa 11,250 Torr 15,000 mbar	120g
APR 267	G 1/4"	5 hPa to 55000 hPa	10- 80°C	2 % F.S	75,000 hPa 56,250 Torr 75,000 mbar	120g

Stress Film Gauge APR Series Models on Sale:

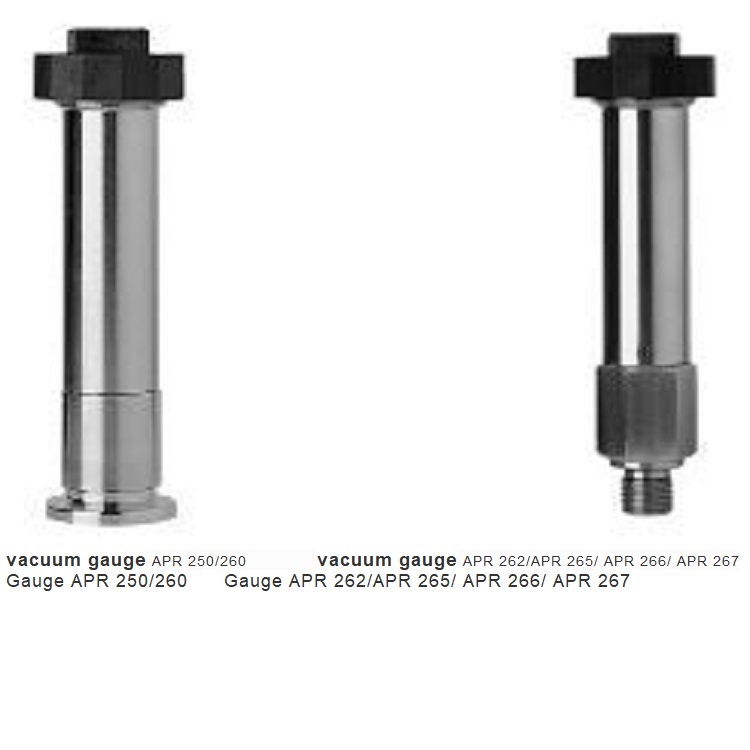

Stress film gauge APR 250, DN 16 ISO-KF, 2 % F.S CN

Stress film gauge APR 260, DN 16 ISO-KF, 1 % F.S CN

Stress film gauge APR 260, DN 16 CF-F, 1 % F.S CN

Stress thin film gauge APR 262, G", 2200 hPa CN

Stress thin film gauge APR 265, G", 5500 hPa

Stress thin film vacuum gauge APR 266, G", 11000 hPa CN

Stress thin film gauge APR 267, G", 55000 hPa CN

• Stress film vacuum gauge APR series Applications:

Air conditioning and refrigeration industry

Principle of Stress (Piezo) thin film vacuum gauge: Stress sheet (Piezo) thin film vacuum gauge is to sense the change of force on the designed film through the stress plate, and know the current gas pressure.

Piezoelectric effect principle: When some dielectrics are deformed by external forces in a certain direction, due to the polarization phenomenon of internal charges, a charge with opposite polarity will be generated on their surface accordingly. When the external force disappears, it returns to an uncharged state.
