Vacuum gauge

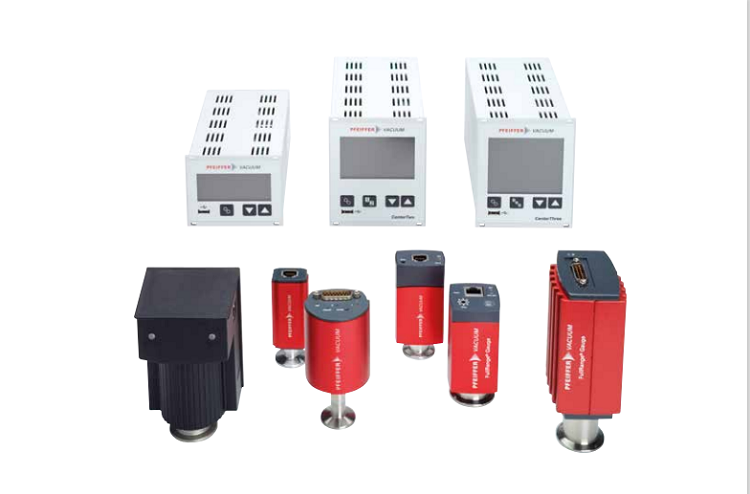

The new series of vacuum gauges, CenterLine, covers almost the entire vacuum range

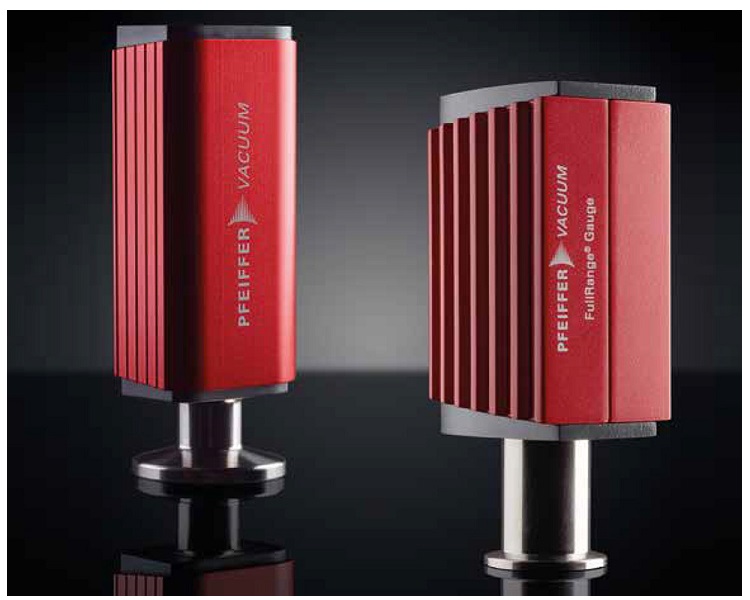

Product Description: The CenterLine series of total pressure measuring gauges is 100 % compatible with Leybold gauges in terms of size, connection and output signal, making it easy to replace or add equipment. Taking the vacuum gauge PTR 91 as an example, compared with its competitors, the magnetic field of this gauge is smaller, and the innovative measuring chamber design ensures a longer service life of the gauge. The new series of vacuum gauges CenterLine, which covers almost the entire vacuum range, can be used with gauge displays CenterLine 1, CenterLine 2, CenterLine 3

Item NO :
ITR、PTR、TTR、CCR
Type :
Vacuum gauge CenterLine

Inquire Now

Product Details

• Vacuum gauge CenterLine product advantages:

1. Covers all types of vacuum gauges. Full range, full scale

2. Compact design saves installation space

3. Integrated electronic components, more versatile

4. Additional functionality due to direct set point on the gauge

5. Easy self-diagnosis

6. The controller is equipped with USB and network port, which can automatically detect and prevent installation errors

7. Complete replacement of Oerlikon Leybold's existing vacuum gauge models

Vacuum gauge CenterLine application areas:

1. Research

2. Analyze the equipment

3. Coatings research and production facilities

4. Leak detection system

5. Semiconductors

6. Coating

7. Industry

Vacuum gauge CenterLine technical data：

Model	Type	Measuring range hPa	Air intakes	Job Temperature °C	measurement Accuracy %, hPa	device plug
ITR 90	Pirani Bayard Alpert	5X10-10 to 1000	DN 25 ISO-KF	150	±15	D-sub 15 cores
ITR 90	Pirani Bayard Alpert	5X10-10 to 1000	DN 40 CF-R	150	±15	D-sub 15 cores
PTR 225	Cold cathode in Panning	1X10-9 to 1X10-2	DN 25 ISO-KF	150	±30	FCC68/RJ45 8 cores
PTR 225 S	Cold cathode in Panning	1X10-9 to 1X10-2	DN 25 ISO-KF	150	±30	FCC68/RJ45 8 cores
PTR 237	Cold cathode in Panning	1X10-9 to 1X10-2	DN 40 CF-F	150	±30	FCC68/RJ45 8 cores
PTR 91*	Cold cathode	5 X10-9 to 1000	DN 25 ISO-KF	150	±30	FCC68/RJ45 8 cores
PTR 91*		5 X10-9 to 1000	DN 40 ISO-KF	150	±30	FCC68/RJ45 8 cores
PTR 91*		5 X10-9 to 1000	DN 40 CF-F	150	±30	FCC68/RJ45 8 cores
TTR 101	Pirani capacitance	5X10-5 to 1500	DN 16 ISO-KF	80	5X10^-4to 1X10^-3±50% 1X10^-3 to 100 ±15% 100 to 950 ±5% 950 to 1050 ±2,5 %	FCC68/RJ45 8 cores
TTR 101 S2	Pirani capacitance	5X10-5 to 1500	DN 16 ISO-KF	80		FCC68/RJ45 8 cores
TTR 91	Pirani	5 X10-4 to 1000	DN 16 ISO-KF	80	±15 Tungsten filament	FCC68/RJ45 8 cores
TTR 91 S		5 X10-4 to 1000	DN 16 ISO-KF	80	±15 Tungsten filament	FCC68/RJ45 8 cores
TTR 96 S		5 X10-4 to 1000	DN 16 ISO-KF	80	±15 Nickel filament	FCC68/RJ45 8 cores
CCR 36x	capacitance	Four measuring ranges	Tube AD ½“, DN 16 ISO-KF, DN 16 CF-R, Cajon 8 VCR			D-sub 15 cores
CCR 37x	capacitance	Four measuring ranges	Rohr AD ½“, DN 16 ISO-KF, DN 16 CF-R, Cajon 8 VCR			D-sub 15 cores
