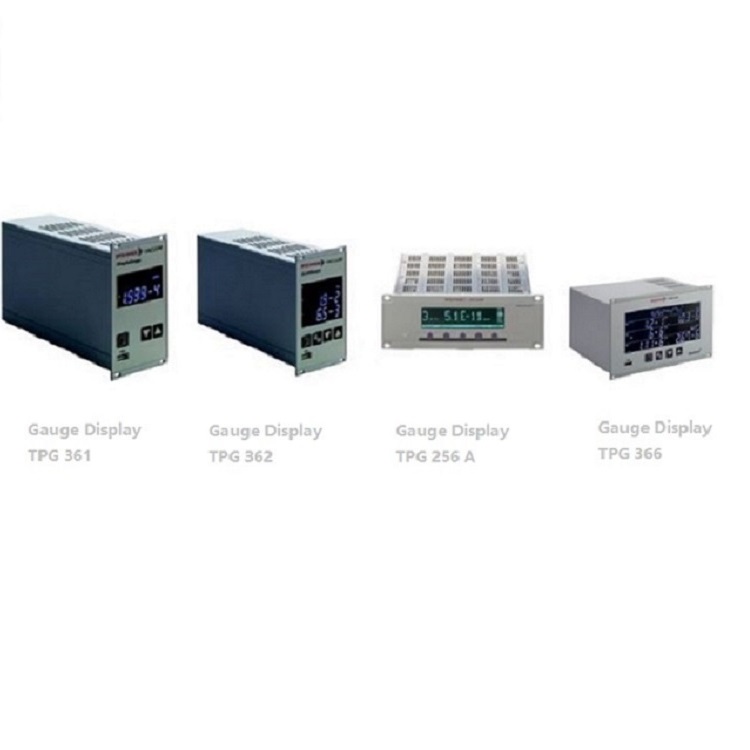

ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366
ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366
ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366
ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366
ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366
ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366

ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366

Analog signal vacuum gauge ActiveLine dedicated display controller, universal power supply, easy operation, accurate reading. The gauge display TPG series consists of gauge displays TPG 361 (replacing model TPG 261), TPG 362 (replacing model TPG 262) and TPG 256 A as well as the new TPG 366.
  • Item NO :

    TPG 361,TPG 362,TPG 256 A,TPG 366

ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366



New model vacuum gauge display TPG 361/362 has the following advantages:





1. It can be used with Pfeiffer TPR/PKR/CMR and other different types of vacuum gauges

2. Easy operation and accurate value

3. Data is stored in USB in real time

4. New backlit LCD display: more vivid colors and clearer display



5. Vacuum gauge display three languages optional: German, English, French

6. Measurement unit: hPa, Micron, V, 6-digit digital display

7. Dual channel vacuum gauge display TPG 362: Dual channel readings can be displayed simultaneously

8.2 USB ports; Ethernet connection is available

9. Universal voltage design









Picture on the back of the new vacuum gauge display TPG 361/362:



ActiveLine Gauge Display Controller TPG 361, TPG 362, TPG 256 A, TPG 366 Technical data:




Model

Measuring range
hPa

Measurement channel

Measurement rate

Set the voltage maximum

Operating temperature
°C

Communication interface

TPG 361
substitute

 TPG 261

55,000-
5x10
-11

1

≥ 100 1/s

60 V DC
30 V DC

5-50

USB, RS-485, Ethernet

TPG 362
substitute

 TPG 262

55,000-
5x10
-11

2

≥ 100 1/s

60 V DC
30 V DC

5-50

USB, RS-485, Ethernet

TPG 256 A

55,000-
5x10
-11

6

≥ 100 1/s

60 V DC

5-40

RS-232
RS-422

TPG 256 A

55,000-
5x10
-11

6

≥ 100 1/s

60 V DC

5-40

RS-232
RS-422,RS-485

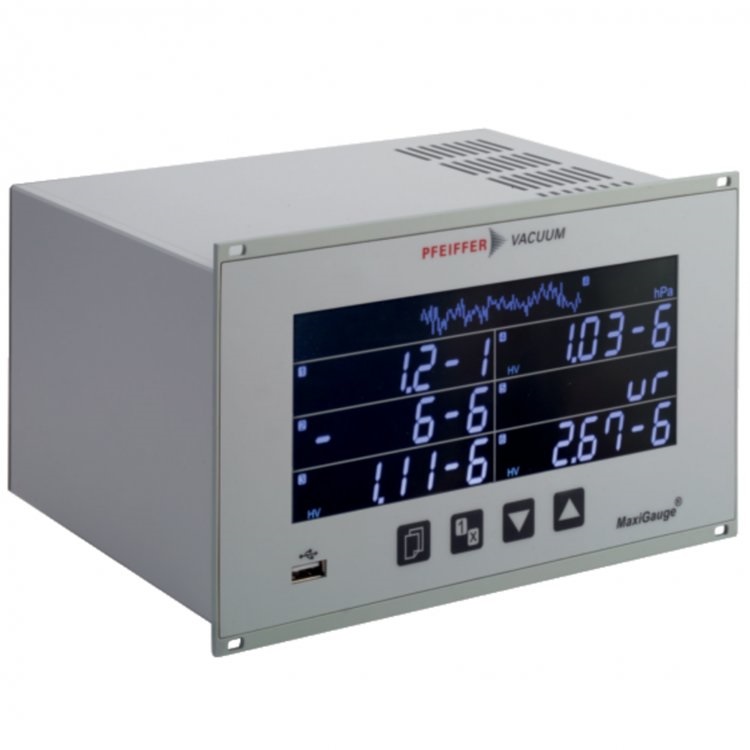

TPG 366

55,000-
5x10
-11

6

≥ 100 1/s

60 V DC

5-40

USB, RS-485, Ethernet



ActiveLine Gauge Display Controller TPG 361, TPG 362, TPG 256 A, TPG 366 Optional accessories:

Mating connector

Sensor cable



Dedicated software





ActiveLine gauge display controllers TPG 361, TPG 362, TPG 256 A, TPG 366 models available:

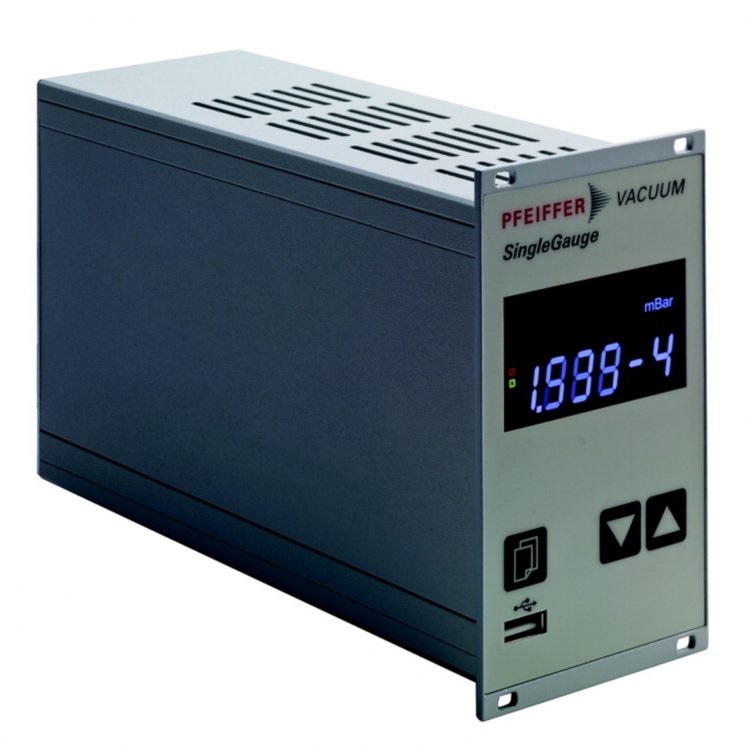

The single-channel gauge displays the controller TPG 361

The two-channel gauge displays the controller TPG 362



The six-channel gauge shows the controller TPG 256 A
