The Modular Gauge ModulLine is suitable for use in highly radiation environments
The Modular Gauge ModulLine is suitable for use in highly radiation environments

The Modular Gauge ModulLine is suitable for use in highly radiation environments

 The Modular Gauge ModulLine is suitable for use in highly radiation environments
  • Type :

    Measuring regulations TPR, IKR and IMR
  • Motor power :

    Controller IMG 400

Product description

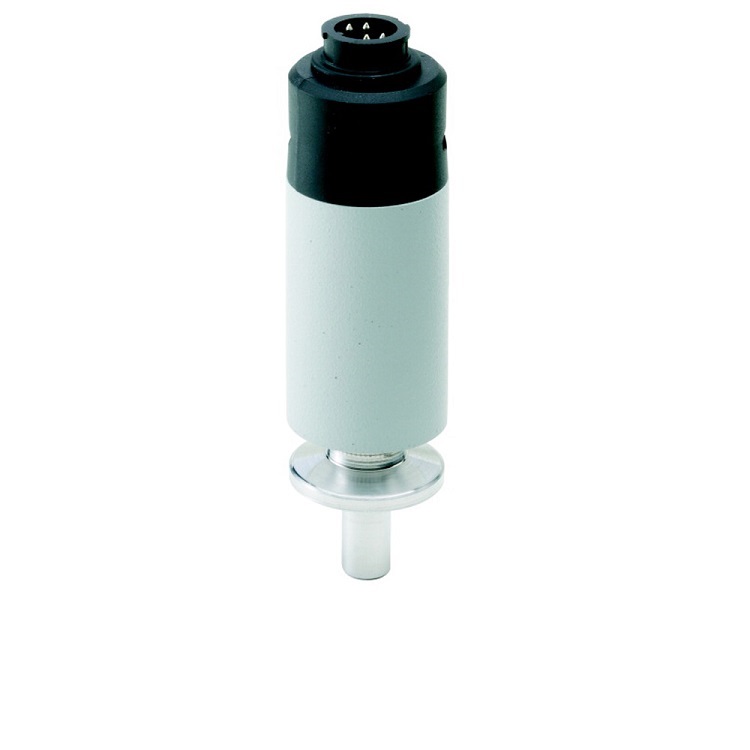

Shanghai Bodong German Pfeiffer Modular Vacuum Gauge ModulLine, specially developed for ionizing radiation environments. The modular gauges do not contain any electronic components and are therefore suitable for use in highly radiation environments. The Modular Gauge ModulLine series consists of three types of measuring gauges TPR, IKR and IMR. The TPG 300 display controller can be individually configured according to your exact needs and can be selected for up to two measuring plates to control four gauges simultaneously. Universal RS-232/RS-485 interface and relay contacts can also be connected to fieldbuses. The controller IMG 400 is used to connect measuring tubes of the IMR version. In the case of two controllers, the Profibus-DP field total can be connected via an optional interface card

Modular Gauge ModulLine Technical parameters:

Regulatory model

  interface

Measuring range

hPa

X-ray limit

hPa

Job

Temperature °C

roast

Temperature °C

Display the controller



TPR 010

DN 10 ISO-KF

8X10-41000

-

0-70

100

TPG 300



TPR 017

DN 16 ISO-KF
DN 16 CF-F

8X10-4 1000

-

0-80

250

TPG 300




TPR 018

DN 16 ISO-KF
DN 16 CF-F
DN 40 CF-F

8X10-4 1000

-

0-80

250

TPG 300





IKR 050

DN 25 ISO-KF
DN 40 ISO-KF
DN 40 CF-F

2X10-9  5X10-3

-

5-80

150

TPG 300





IKR 060

DN 40 ISO-KF
DN 40 CF-F

1X10-10 5X10-3

-

5-80

250

TPG 300




IKR 070

DN 40 ISO-KF
DN 40 CF-F

1X10-11 5X10-3

-

5-80

250

TPG 300




IMR 420

DN 40 CF-F

1X10-2 2X10-11

<1X10-12

-

400

IMG 400



IMR 430

DN 40 CF-F

1X10-4  2X10-12

<1X10-12

-

400

IMG 400





·      Pfeiffer 模块化真空计 ModulLine 应用领域:

1、加速器

2UHV 应用

3、接触辐射的应用
