vacuometer

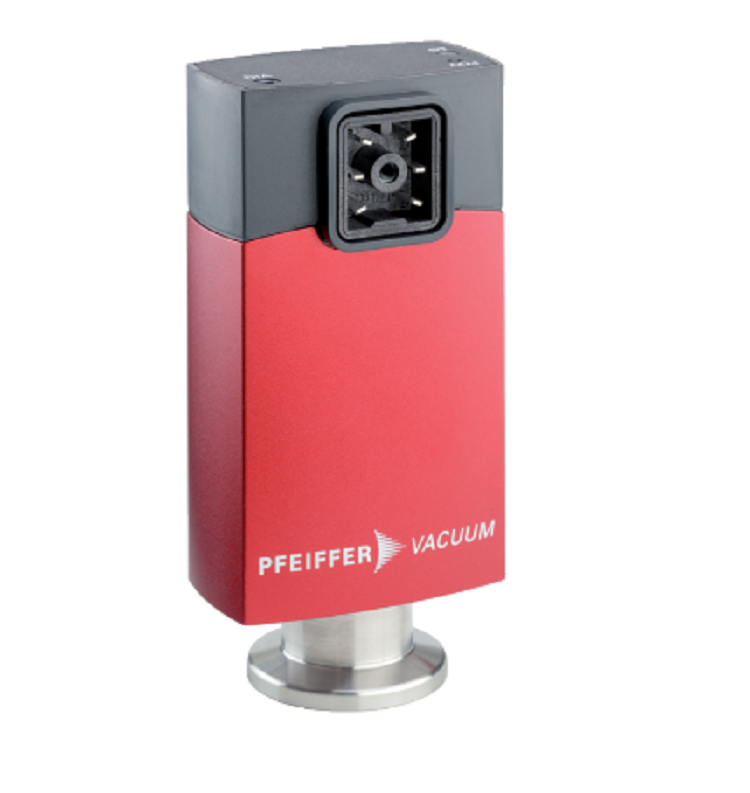

The ActiveLine analog signal gauge has the total pressure of the signal output
The ActiveLine analog signal gauge has the total pressure of the signal output
The ActiveLine analog signal gauge has the total pressure of the signal output
The ActiveLine analog signal gauge has the total pressure of the signal output

The ActiveLine analog signal gauge has the total pressure of the signal output

Product description  Analog signal gauge ActiveLine, total pressure gauge with analog signal output, vacuum measuring range 104-10-11 hPa, including a variety of different types of gauges for selection, analog signal gauge ActiveLine works based on various measuring principles, vacuum gauge output analog signal: 0-10V, can be used with vacuum gauge display TPG. Among them, Pirani vacuum gauge TPR series, cold cathode vacuum gauge IKR series, capacitive film vacuum gauge CMR series, full-scale vacuum gauge PKR series are widely used in the vacuum industry.
  • Item NO :

    Analog signal vacuum gauge ActiveLine
  • Type :

    APR、CMR 、PCR 280、TPR、TPR、PKR、IMR、PBR series

The ActiveLine analog signal gauge has the total pressure of the signal output

Advantages of ActiveLine Analog Signal Gauge:

1. Vacuum measurement range 104-10-11 hPa

2. Compact structure, diversified selection types

3. International common flange, easy to integrate and install

4. Vacuum gauge output analog signal: 0-10V

5. Any kind of pressure unit can be selected

6. Avoid installation errors with controller with automatic transmitter recognition

Model

Interface

Vacuum gauge measuring range hPa

Operating temperature °C

Vacuum gauge measurement accuracy



Ultimate pressure hPa



Weightg



APR series

DN 16 ISO-KF

5to55000

10-80

± 2%

75,000

120

G 1/4"

CMR series

DN16 ISO-KF

1100to10-5

5-55

± 0.2%

3000

900

DN16 CF-F

PCR 280

DN16 ISO-KF

1500to5x10-5

10-50

± 2.5%

1500

120

DN16 CF-F

TPR series

DN 16 ISO-KF

5X10-4 to1000

80/250

± 15%

1000 kPa

80

DN 16 CF-R

1/8" NPT

8 VCR

IKR series

DN 25 ISO-KF

5X10-11 to10-2

5-55

± 30%

10,000

700

DN 40 ISO-KF

DN 40 CF-F

PKR series

DN25ISO-KF

5X10-9to1000

5-55

± 30%

10,000

700

DN40ISO-KF

DN40 CF-F

IMR 265

DN16 ISO-KF

2X10-6to1000

0-50

± 15%

10,000

270

DN25 ISO-KF

285

DN40 ISO-KF

315

DN16 CF-F

400

DN40 CF-F

550

PBR 260

DN 25 ISO-KF

1000to5x10-10

0-50

± 15%

2,000

285

DN 40 ISO-KF

315

DN 40 CF-R

550







 Analog signal gauge ActiveLine application areas:

1. Research facilities

2. Analyze the equipment

3. Research and production of coating facilities

4. Leak detection system

5. Semiconductor development and production

6. Photovoltaic

7. Industrial vacuum process system
