Full-scale vacuum gauge PKR series with models PKR 251, PKR 261 and new models PKR 360, PKR 361. The full-scale vacuum gauge uses the inverted magnetron principle with built-in Pirani and cold cathode (anode rod), vacuum measurement range 1E-9 to 1000 hPa, output analog signal 0-10V, can be connected to PLC. The full-scale PKR series is available in corrosion-resistant versions with a wide range of universal interfaces for all vacuum applications and can be used with gauge displays TPG 361, TPG 362, TPG 256 A. Can assist customers in selection and provide perfect after-sales maintenance services.
  • Item NO :

    PKR系列
  • Type :

    PKR 251、PKR 261 和新型号 PKR 360、PKR 361

Full scale vacuum gauge PKR series Product advantages:

1. The new full-scale vacuum gauge PKR 360 / PKR 360 C has a low current design, which is especially suitable for medium vacuum use



Insensitive to air ingress

The inner seal is made of metal

Low current models are optimized for medium vacuum applications

Measuring range 1E-9 to 1000 hPa



2. The new full-scale vacuum gauge PKR 361 / PKR 361 C high current design, especially suitable for high vacuum use



Insensitive to air ingress

The inner seal is made of metal

High current models are optimized for high vacuum applications

Measuring range 1E-9 to 1000 hPa

3. Full-scale vacuum gauge PKR 251 / PKR 261 hot selling model



Measuring range 5E-9 to 1000 hPa

Resistant to general corrosion

  Technical parameters of full-scale vacuum gauge PKR series

Vacuum gauge model

interface

Measuring range hPa

Job

temperature

roast

temperature

measurement

precision

Ultimate pressure

(hPa)

weight

(g)

PKR 360
PKR 360 C
Low current

DN25 ISO-KF
DN40 ISO-KF
DN40 CF-F

1E-9to 1000

5-55 °C

150 °C

±30%

10,000

280-570

PKR 361
PKR 361 C
High current

DN25 ISO-KF
DN40 ISO-KF
DN40 CF-F

1E-9to 1000

5-55 °C

150 °C

±30%

10,000

280-570

PKR 251

DN25 ISO-KF
DN40 ISO-KF
DN40 CF-F

5E-9to 1000

5-55 °C

150 °C

±30%

10,000

700

PKR 261

DN25 ISO-KF
DN40 ISO-KF
DN40 CF-F

5E-9to 1000

5-55 °C

150 °C

±30%

10,000

700

 * C Corrosion-resistant model

  • Ultimate pressure refers to the measurement of an inert gas at a temperature < 55 °C

Key differences between the full-scale gauge PKR 360 /361 and the PKR 251 /261:

1. Smaller range: 1E-9 hPa (old vacuum gauge: 5E-9 hPa)

2. More compact design, smaller size:

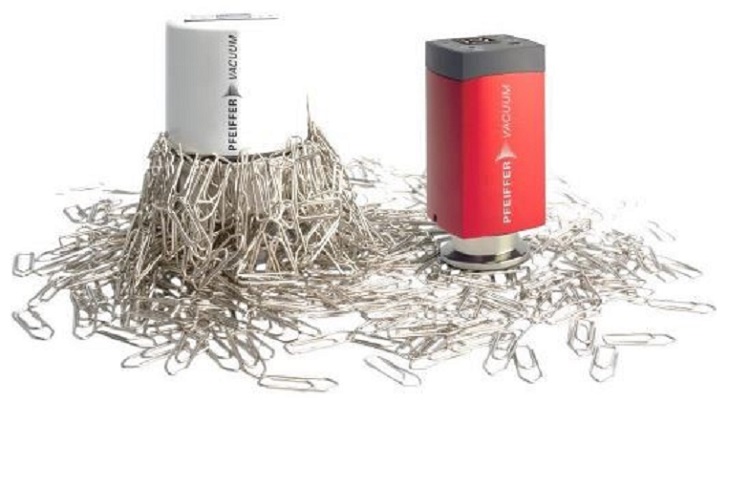

3. Minimize magnetic leakage, the magnetic field is weaker

4. The internal sealing ring of the new vacuum gauge is made of metal

5. According to the actual application of customers, provide strong/weak current models for selection

6. Innovative double-chamber design, fewer parts, longer service life
