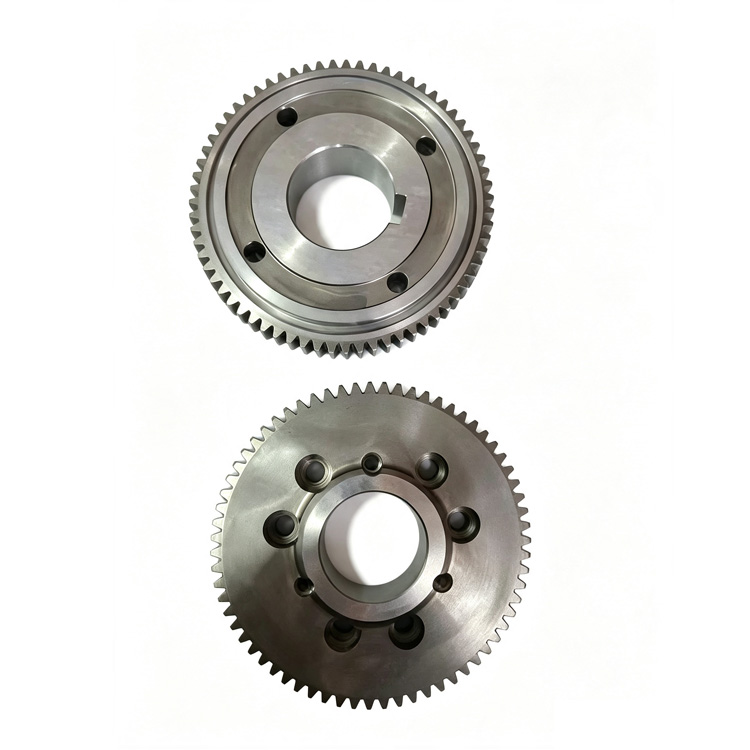

Edwards IXH3030 Dry Vacuum Pump Applications in Semiconductor & Industrial Sectors

1. Semiconductor Industry: IXH3030's Core Battleground

1.1 Why Semiconductor Processes Use IXH3030

Edwards IXH3030 is the mainstream compact dry pump for 6-inch / 8-inch wafer fabs:

· Moderate pumping speed (80-200 m³/h)

· Small footprint, suitable for small PECVD and etching machines

· Maintenance cycle 12-18 months

1.2 Typical IXH3030 Applications in Semiconductor Processes

1.3 Special Value of IXH3030 Standard vs. High-Nickel Version

Applicable Processes:

· Polysilicon etching (containing Cl₂/BCl₃)

· Aluminum etching (containing Cl₂/BCl₃)

· Dielectric etching (containing CF₄/SF₆)

Advantages:

· High-nickel version with Ni ≥16%, extends corrosion resistance life by 3x

· Dynamic balance G2.5 grade @ 12000 RPM

· Direct replacement for standard rotor

Note: IXH3030 OEM does not come with high-nickel rotors, need to upgrade to IXH1820H high-nickel process (common part numbers).

1.4 5 Maintenance Points Most Valued by Semiconductor Industry

· High-nickel rotor vs. standard rotor selection: Etching processes containing Cl₂/BCl₃/SF₆ must upgrade

· HVHP / LVHP / LVHP-MB stator selection: Select by process pressure ratio

· Shaft seal life: High-clean chamber uses 8000-12000h, must replace on time

· Oil mist filter clogging: Wafer fab 24/7 operation, clean/replace every 3 months

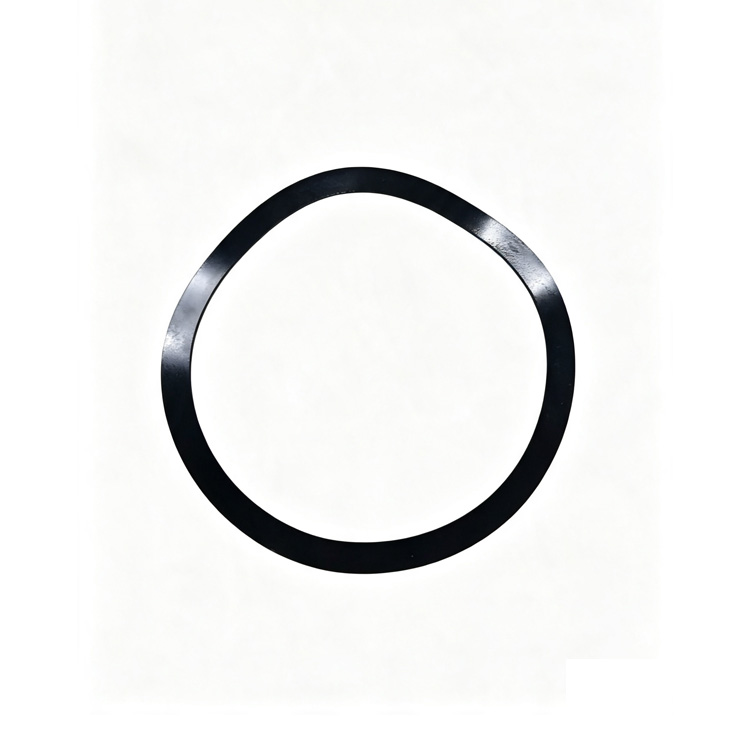

· Wave spring failure: Causes bearing noise, rotor axial play

2. Flat Panel Display (FPD) Industry

2.1 FPD Process Characteristics

· Large area vacuum chamber (Gen 6 / Gen 8.5)

· Long pump-down time (30-45s to reach working vacuum)

· Dry pump needs long-term stable operation

2.2 IXH3030 Applications in FPD Industry

3. Solar Photovoltaic Industry

3.1 Photovoltaic Process Characteristics

· Mass production, sensitive to equipment cost

· Process gas relatively clean (no strong corrosiveness)

· Standard version rotor can meet requirements

3.2 IXH3030 Parts Selection Recommendations

4. Vacuum Metallurgy and Heat Treatment

4.1 Process Characteristics

· High temperature (1000-2000℃)

· Contains metal vapor, dust

· Dry pump backing needs reliable filtration

4.2 Parts Wear Sequence

· First stage (3-6 months): Oil mist filter saturated

· Second stage (6-12 months): Shaft seal leakage

· Third stage (12-24 months): Rotor end-face wear

· Fourth stage (24-36 months): Stator end-face wear

5. Laboratory / Small Batch Production

5.1 Laboratory Characteristics

· Variable processes (different experiments)

· Frequent start-up

· High reliability requirements for equipment

5.2 IXH3030 Applications in Laboratory

· Small PECVD coating

· Surface analysis (XPS, AES)

· Vacuum leak detection

· Material preparation

Parts particularity:

· Standard rotor is sufficient

· T-type filter for low cleanliness

· Y-type filter for medium cleanliness

6. Maintenance Case Studies

Case 1: 6-Inch Wafer Fab IXH3030 Abnormal Vibration

Fault Phenomenon:

· Pump body noise, vibration ≥4.0 mm/s

· Pump-down time extended from 25s to 50s

· Motor current fluctuation ±12%

Diagnosis:

· X3 rotor (TX110040255) end-face wear 0.05mm

· Wave spring (TX120040029) fatigue

· Shaft seal leakage causing bearing water ingress

Solution:

· Replace X3 rotor (TX110040255) — standard version (no Cl₂ in process)

· Replace wave spring (TX120040029, TX120040007)

· Replace shaft seal (TX120010010) + shaft sleeve (TX120020078)

Case 2: FPD Gen 6 PECVD Vacuum Drop

Fault Phenomenon:

· Process chamber vacuum dropped from 1×10⁻⁴ Pa to 5×10⁻³ Pa

· Roots pump IXH3030 temperature rise 20℃

Diagnosis:

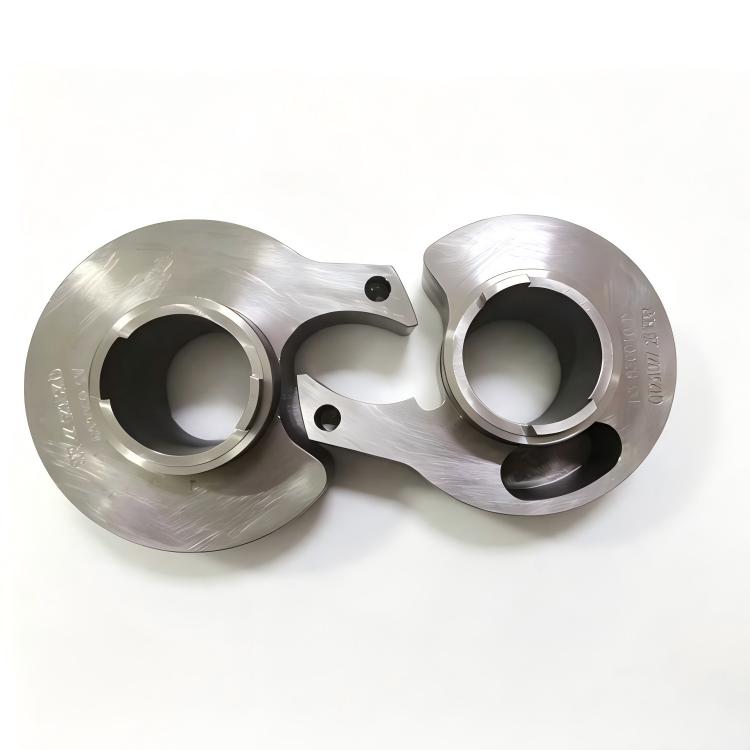

· 4TH stator (TX110020226) end-face wear

· 3RD stator (TX110020225) mating clearance out of tolerance

· Y-type oil mist filter (TX150050005) saturated

Solution:

· 4TH stator (TX110020226)

· 3RD stator (TX110020225)

· Y-type oil mist filter (TX150050005)

Case 3: Photovoltaic PECVD IXH3030 Rotor Corrosion

Fault Phenomenon:

· Process contains HF concentration fluctuations

· Rotor end-face corrosion pits within 6 months

Diagnosis:

· OEM standard rotor (Ni content ≤5%) not HF-resistant

· Must upgrade to high-nickel rotor (IXH1820H process part numbers TX110044569-573)

Solution:

· X4 high-nickel rotor (TX110044571) — full replacement

· Y4 high-nickel rotor (TX110044572) — full replacement

· LV high-nickel rotor (TX110044573) — full replacement

Case 4: IXH3050 Major Overhaul Special Parts

Fault Phenomenon:

· IXH3050 process contains HCl

· Seal ring frequent leakage

Diagnosis:

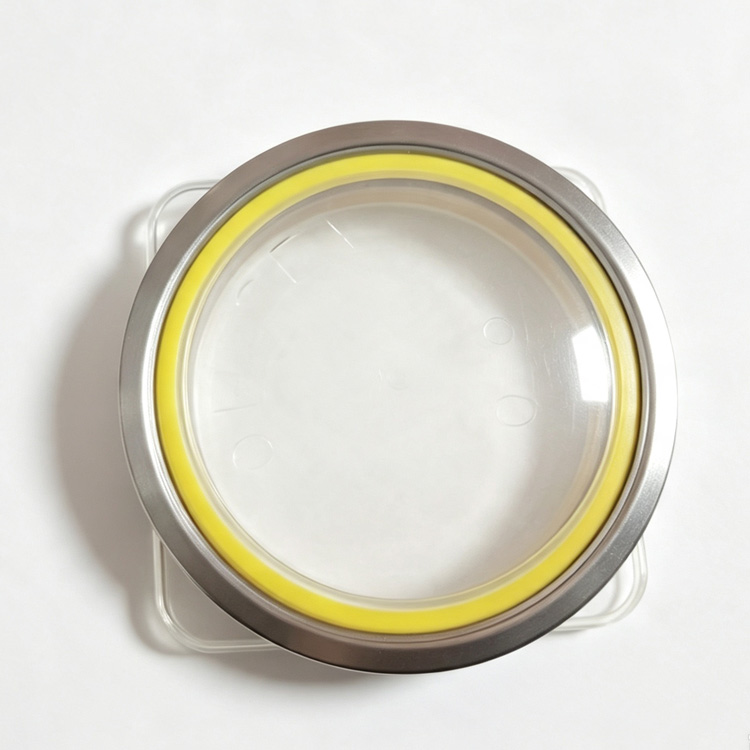

· IXH3050 seal ring (no part number) material not HCl-resistant

· Must upgrade to FKM or Kalrez material

Solution:

· IXH3050 seal ring (custom FKM material)

· LVHP-MB stator (TX110020042) — used with new seal ring

7. Industry Application Selection Quick Reference

What is your industry?

├─ Semiconductor (6/8 inch wafer fab)

│   ├─ Standard etching → IXH3030 standard rotor

│   ├─ Cl₂ etching → High-nickel rotor (IXH1820H part numbers)

│   ├─ PECVD → IXH3030 standard rotor + Y-type filter

│   └─ Sputtering → IXH3030 standard rotor

├─ FPD (Flat Panel Display)

│   └─ IXH3030 + high-nickel rotor combination

├─ Photovoltaic

│   └─ IXH3030 standard version full set

├─ Vacuum metallurgy

│   └─ IXH3030 + Y-type filter

└─ Laboratory/small batch

    └─ IXH3030 + T-type filter

8. Key Parameter Comparison

More stars = more recommended.

9. FAQ

Q1: Is high-nickel rotor mandatory for etching process?

A: Yes when containing Cl₂/BCl₃/SF₆ halogens, otherwise standard rotor will corrode through in 3-6 months.

Q2: What is the IXH3030 high-nickel rotor part number?

A: IXH3030 OEM doesn't include high-nickel version, need to use IXH1820H high-nickel part numbers (TX110044569-573), dynamic balance G2.5 grade.

Q3: What's the difference between HVHP and LVHP-MB?

A: HVHP is for IXH3030 high pressure ratio; LVHP-MB is for IXH3050 (MB series derivative specification).

Q4: Can IXH3030 use the sintered filter?

A: Yes (the sintered filter used by IXH1220 also applies), but standard configuration is Y-type + T-type combination.

Q5: When a customer wants to upgrade an old IXH3030, which parts should be prioritized?

A: Prioritize upgrading shaft seal, wave spring, oil mist filter (highest cost-effectiveness), then consider high-nickel rotor.
