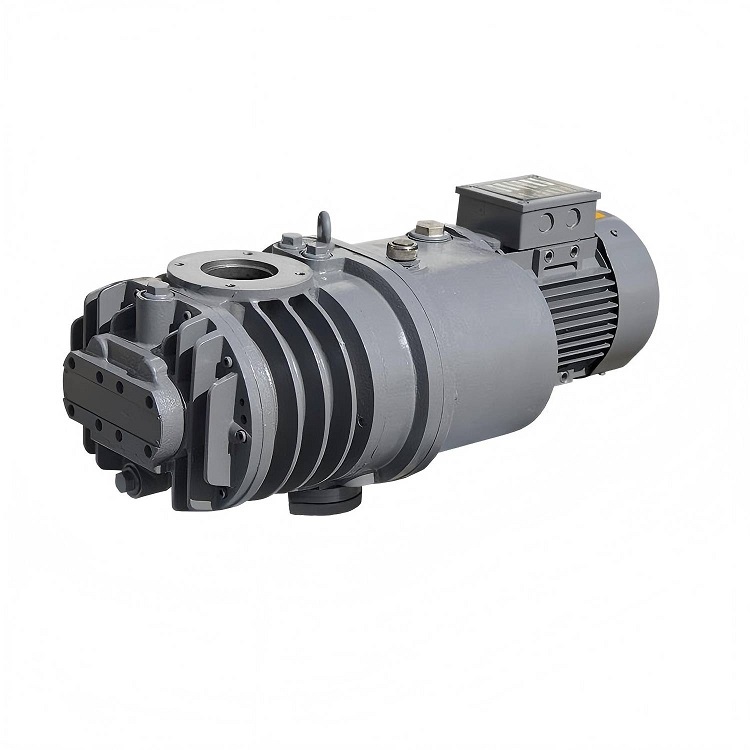

TXL2600 Roots Pump 2600-3120m³/h High Capacity For Semiconductor/PV Industry

TXL2600 Roots Blower Vacuum Pump 7.5KW Industrial Heavy-Duty Solution

Discover Taixing Vacuum's TXL2600 roots pump specifications, key advantages and industrial applications with 10 FAQs for this heavy-duty vacuum solution.

Technical Specifications

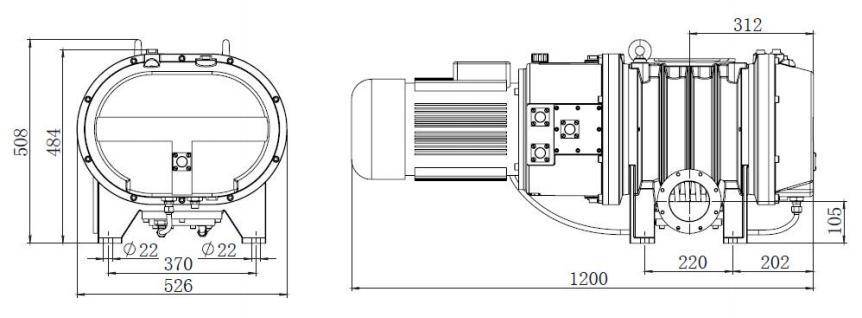

Dimension drawing

Key Features
✓ Military-grade cast housing (40% stronger)
✓ Real-time vibration monitoring
✓ Quick-maintenance modular design
✓ Wide temperature range (-20℃~120℃)
✓ Optional VFD control (35% energy saving)

Applications

PV thin-film coating

Wafer fabrication

Vacuum heat treatment

Large-scale research facilities

Aerospace testing

10 FAQs

1、Continuous operation limit?

Supports 24/7 operation with quarterly maintenance

2、Corrosion-resistant version?

Available in 316L stainless steel

3、Maintenance interval?

2000h oil change, 5000h rotor inspection

4、Vibration solution?

Check foundation bolts first, then dynamic balance

5、Water vapor tolerance?

Handles saturated vapor (with gas ballast)

6、Delivery time?

7 days for standard, 15 days for customized

7、Energy rating?

Meets GB30253-2013 Class I efficiency

8、Monitoring interface?

Standard RS485, optional 4-20mA/Ethernet

9、Warranty on parts?

3 years for rotors, 2 years for motor

10、Consulting service?

Free site survey and system design available

Conclusion
The TXL2600 represents Taixing's flagship heavy-duty roots pump with ISO/CE certifications. Currently offering free technical consultation and extended warranty programs.
