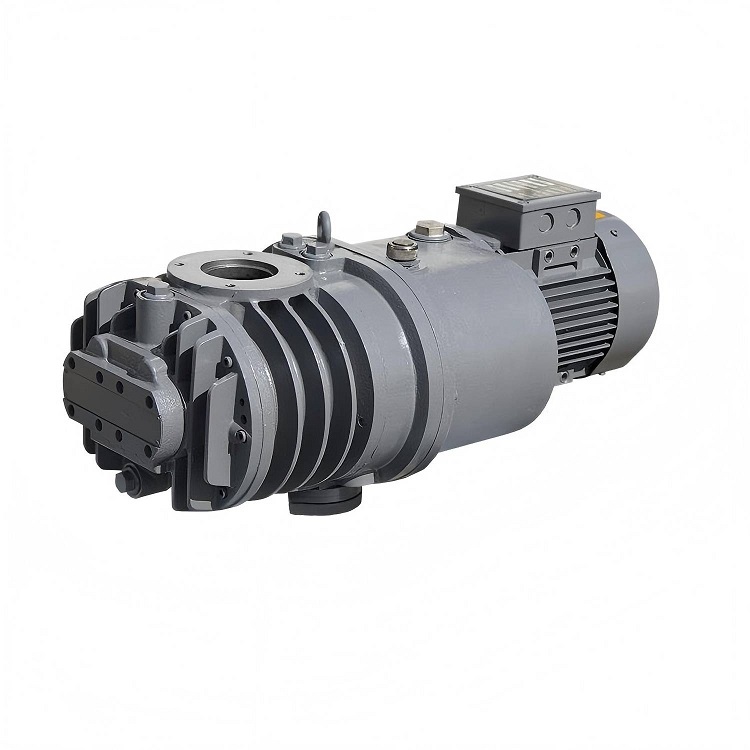

TXL4200 roots blower delivers 4200-5040m³/h massive airflow with 11KW motor, 75dB noise level and ISO250/100 flanges. Ideal for semiconductor, metallurgy, and chemical industries.
Product parameter information
|
Parameter Category |
TXL250 |
TXL500 |
TXL1200 |
TXL4200 |
|
|
Suction Speed (50/60Hz) |
250/300 m³/h |
500/600 m³/h |
1200/1440 m³/h |
2600/3120 m³/h |
4200/5040 m³/h |
|
Motor Power |
2.2KW |
2.2KW |
4.0KW |
7.5KW |
11KW |
|
Motor Speed |
2900r/min |
2900r/min |
2900r/min |
2900r/min |
2900r/min |
|
Voltage |
Three-phase 220 - 240/380 - 415V/460V (single-phase 220V not applicable) |
||||
|
Intake Connection |
ISO63 |
ISO100 |
ISO160 |
ISO160 |
ISO250 |
|
Exhaust Connection |
ISO40 |
ISO63 |
ISO100 |
ISO100 |
ISO100 |
|
Weight |
61KG |
69KG |
149KG |
308KG |
400KG |
|
Noise |
70dB |
70dB |
70dB |
75dB |
75dB |
|
Volume (mm) |
682×306×270 |
770×306×255 |
947×384×334 |
1200×526×508 |
1380×526×508 |

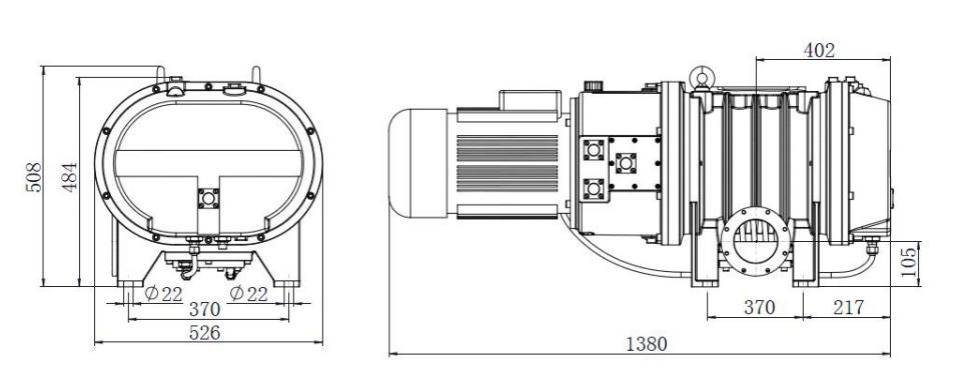

Dimension drawing
✔ Massive Airflow: Optimized rotors deliver up to 5040m³/h
✔ Military-Grade Durability: Reinforced cast iron housing
✔ Smart Monitoring: Real-time vibration/temperature/current alerts
✔ Global Voltage: Compatible with 220-460V power grids
✔ Extended Lifespan: Core components last ≥40,000 hours
Semiconductor: Wafer fab vacuum chambers
Metallurgy: Alloy smelting & sintering
Chemical: Large reactor vacuum systems
PV Industry: Silicon coating production
Research: Particle accelerators
Case Study: A PV manufacturer achieved 30% faster coating cycles with 18% energy savings.
Q: Explosion-proof version available?
A: Yes, ExdIICT6 certified models for hazardous areas.
Q: Maintenance interval?
A: Lubricant change every 3000h, rotor inspection every 6000h.
Q: How to reduce energy consumption?
A: Optional VFD control (recommend 15KW inverter) saves up to 40%.
Q: Corrosive gas compatibility?
A: Standard model for clean gases; 316L SS version available.
Q: Maximum intake temperature?
A: Standard: -20℃~120℃; High-temp version up to 200℃.
Q: Delivery time?
A: 10 days for standard, 20 days for custom models.
Q: Remote monitoring options?
A: Standard RS485; Optional 4-20mA/Ethernet/IoT.
Q: Parts availability?
A: Critical parts (rotors/bearings) ship within 48h.
Q: Warranty terms?
A: 1 year for machine, 5 years for rotors (with proper maintenance).
Q: How to select model?
A: Provide flow rate, gas type, pressure range for free consultation.
