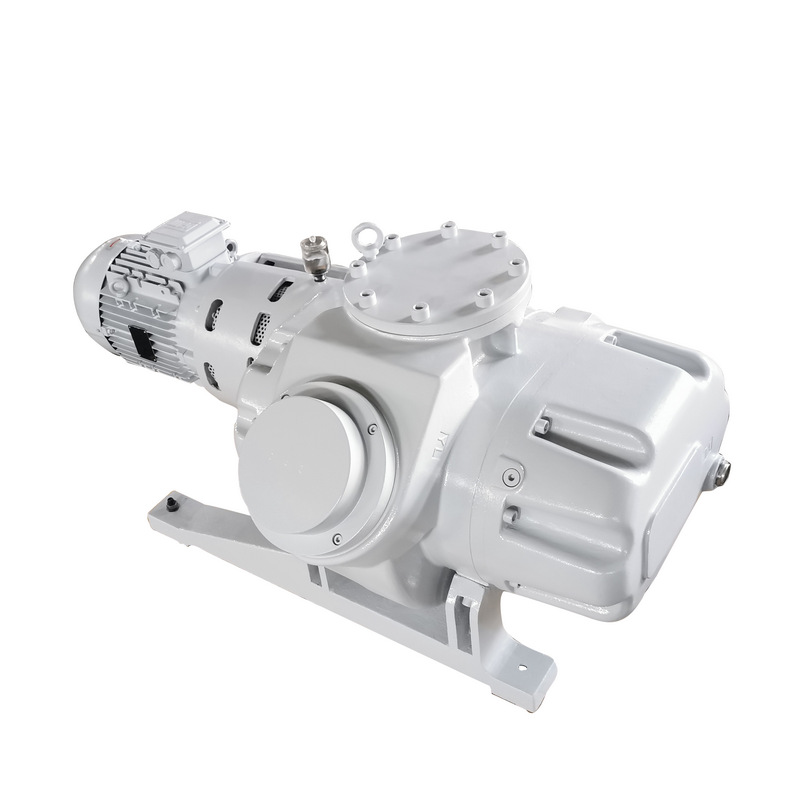

TRP-500 Air-Cooled Roots Vacuum Pump Industrial-Grade Vacuum Solution

The TRP-500 Air-Cooled Roots Vacuum Pump delivers oil-free, energy-efficient performance with low noise operation for industrial vacuum systems. This comprehensive guide covers detailed technical parameters, innovative working mechanism, competitive advantages (including compact design and special gas handling), and practical FAQs to help you select the optimal vacuum solution.

Advanced Working Principle

Innovative Vacuum Generation System

High-Efficiency Dual Rotors: Two precision-engineered figure-8 rotors achieve synchronized counter-rotation at 3000 rpm

Zero-Contact Operation: Maintains precise micron-level clearance between rotors and chamber (no metal-to-metal contact)

Intelligent Pressure Management: Automatic bypass valve activates at 8000 Pa differential pressure

Three-Stage Vacuum Option: Can be configured with secondary Roots pump for ultra-high vacuum applications

3. Competitive Product Advantages

✅ 100% Oil-Free Operation - Eliminates contamination risk for sensitive processes
✅ Industrial-Grade Durability - Heavy-duty 155kg construction for continuous operation
✅ Whisper-Quiet Performance - Advanced sound damping for 63 dB(A) operation
✅ Special Gas Compatibility - Handles condensable vapors and aggressive media
✅ Rapid Cycle Times - Achieves working vacuum in <5 minutes
✅ Energy Optimized - 2.2 kW motor reduces power consumption by 15% vs competitors
✅ Smart Protection System - Dual-stage overpressure and thermal safeguards

4. Industry-Specific Applications

Chemical Processing

Vacuum distillation (solvent recovery)

Large-scale evaporation systems

Reactor degassing

Food & Pharmaceutical

Industrial freeze drying systems

Bulk packaging evacuation

Sterilization chambers

Industrial Manufacturing

Composite material impregnation

Large-volume vacuum furnaces

Environmental test chambers

5. Case Study: TRP-500 in Chemical Distillation

A specialty chemical plant implemented the TRP-500 for their solvent recovery system, achieving:
✔ 40% faster processing (505 m³/h flow rate)
✔ Zero product contamination (oil-free operation)
✔ 24/7 reliability with <1% downtime
✔ Energy savings of $8,500/year vs previous pump

6. Expert FAQs

Q1: What maintenance does the TRP-500 require?
A: Recommend quarterly inspections including:

Bearing lubrication (3L oil capacity)

Rotor clearance verification

Seal integrity checks

Q2: Can it handle corrosive gases?
A: Yes, with optional 316L stainless steel construction (standard model suitable for most vapors)

Q3: What's the maximum continuous operating temperature?
A: 85°C ambient with natural cooling (higher temps require consultation)

Q4: How does it compare to liquid ring pumps?
A: 30% lower energy use and no water contamination - ideal for dry processes

Q5: What control interfaces are available?
A: Standard analog pressure sensors with optional MODBUS RTU connectivity

Q6: Can it be used in explosive atmospheres?
A: ATEX versions available for Zone 1/2 hazardous areas

Q7: What's the expected service life?
A: 50,000+ hours with proper maintenance

Q8: How to handle pump overload situations?
A: Integrated auto-reset bypass valve protects against pressure spikes

Q9: What vibration levels can be expected?
A: <2.5 mm/s vibration velocity (ISO 10816-3 compliant)

Q10: Are performance certifications available?
A: CE, ISO 9001, and third-party vacuum performance reports upon request

Conclusion

The TRP-500 Air-Cooled Roots Vacuum Pump represents the optimal balance of power, efficiency, and reliability for industrial vacuum applications. With its unmatched 505 m³/h capacity, oil-free design, and robust construction, it delivers superior ROI for demanding processes in chemical, food, pharmaceutical, and advanced manufacturing sectors.
