High-Speed TXL1200 Roots Booster Vacuum Pump for Industrial Vacuum Systems 4KW

TXL1200 Roots Booster Vacuum Pump - High-Capacity Industrial Vacuum Solution

Enhance your industrial vacuum system with the TXL1200 Roots Booster Pump by Taixing Vacuum. Delivering 1200-1440 m³/h pumping speed with low noise and robust performance, ideal for semiconductors, lithium batteries, and vacuum coating applications.

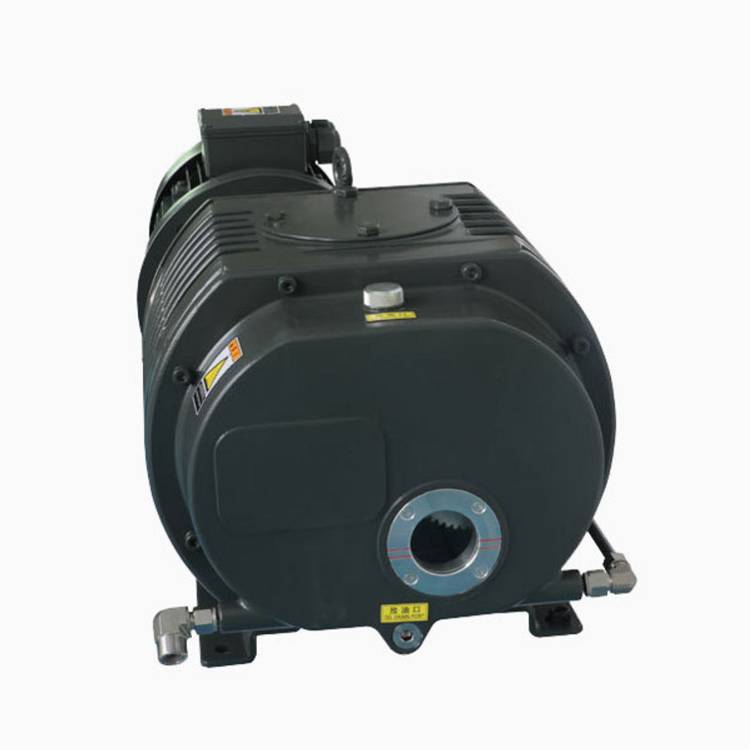

High-Performance TXL1200 Roots Booster Vacuum Pump
By Taixing Vacuum

Why Choose the TXL1200 Roots Booster Vacuum Pump?
The TXL1200 represents the mid-range powerhouse in Taixing Vacuum's TXL Series, specifically engineered for industrial applications requiring 1200-1440 m³/h pumping capacity. Its advanced twin-lobe design ensures rapid vacuum generation while maintaining energy efficiency and operational stability.

With a compact footprint of 947×384×334mm and weighing just 149KG, the TXL1200 delivers exceptional power-to-size ratio. The precision-balanced rotors operate at 2900r/min with noise levels capped at 70dB, making it suitable for noise-sensitive environments.

Key Features
✓ High Volume Performance: 1200/1440 m³/h (50/60Hz) pumping speed
✓ Powerful 4.0KW Motor: Optimized for continuous industrial operation
✓ Standardized ISO160 Connections: Ensures compatibility with existing systems
✓ Advanced Rotor Design: Special coating extends service life beyond 30,000 hours
✓ Thermal Protection: Built-in sensors prevent overheating
✓ Global Voltage Support: 3-phase 220-460V compatibility
✓ Low Vibration: <2.5mm/s vibration velocity for stable operation

Technical Specifications

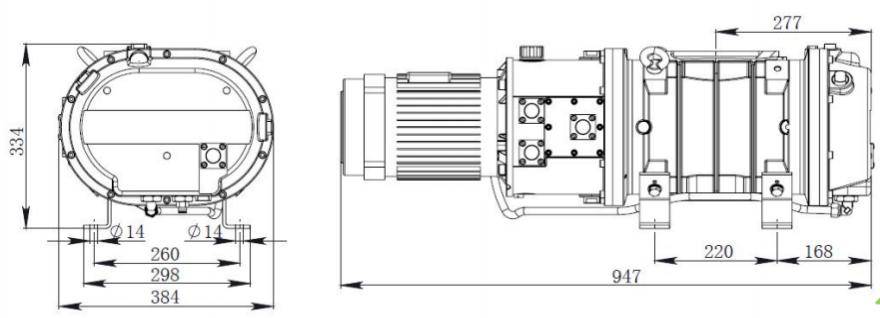

Dimension drawing

Industrial Applications
Semiconductor Manufacturing

Accelerates vacuum attainment in etching and deposition chambers

Case Study: Reduced cycle time by 18% in a 300mm wafer fab

Lithium Battery Production

Optimizes vacuum drying for electrode materials

Maintains consistent vacuum for electrolyte filling

Vacuum Coating Systems

Provides stable backing pressure for PVD processes

Enables high-throughput metallization of optical components

Pharmaceutical Processing

Supports large-scale vacuum distillation

Maintains sterile conditions in freeze drying

Additional Applications

Industrial laser cutting systems

Large-scale heat treatment furnaces

Research particle accelerators

Automotive brake testing

Aerospace component testing

FAQ

What makes the TXL1200 suitable for semiconductor applications?
Its oil-free operation prevents contamination, while the high pumping speed reduces process cycle times.

Can the TXL1200 handle variable gas loads?
Yes, the precision rotor clearance maintains stable performance across varying gas loads.

What maintenance intervals are recommended?

Monthly: Check belt tension and alignment

Quarterly: Inspect rotor clearance

Annually: Full bearing service

Is explosion-proof version available?
Yes, ATEX-compliant models can be customized.

How does it compare to similar capacity screw pumps?

25% higher pumping speed

15% lower energy consumption

50% smaller footprint

What cooling system is required?
Standard air cooling suffices for most applications; water-cooled jackets optional.

Can it be integrated with PLC systems?
Yes, supports MODBUS RTU and PROFIBUS protocols.

What's the lead time for replacement parts?
Critical spares (rotors, bearings) are stocked for 24hr shipment.

How to handle sudden power interruptions?
The anti-reverse system prevents damage during power failure.

What warranty is provided?
36 months on rotors, 12 months comprehensive warranty.

Conclusion: Industrial-Grade Vacuum Performance
The TXL1200 Roots Booster Vacuum Pump combines Taixing Vacuum's engineering expertise with robust industrial design. Offering the perfect balance of pumping speed, reliability and energy efficiency, it's the preferred choice for industries demanding consistent, high-volume vacuum performance.

Contact Taixing Vacuum today for application-specific configuration advice and competitive pricing.
