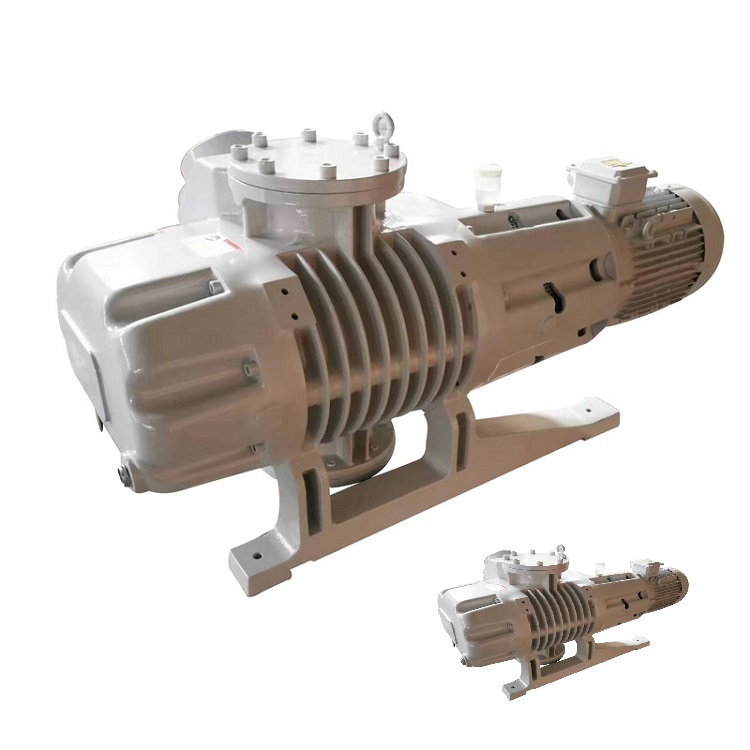

TRP-2000 Air-Cooled Roots Vacuum Pump - Heavy-Duty Industrial Vacuum System Solution

The TRP-2000 air-cooled Roots vacuum pump delivers 2050m³/h pumping speed with 0.05Pa ultimate vacuum and 7.5kW motor power. Discover this industrial-grade vacuum pump's specifications, working principles, and applications in metallurgy and chemical industries.

Core Technical Parameters

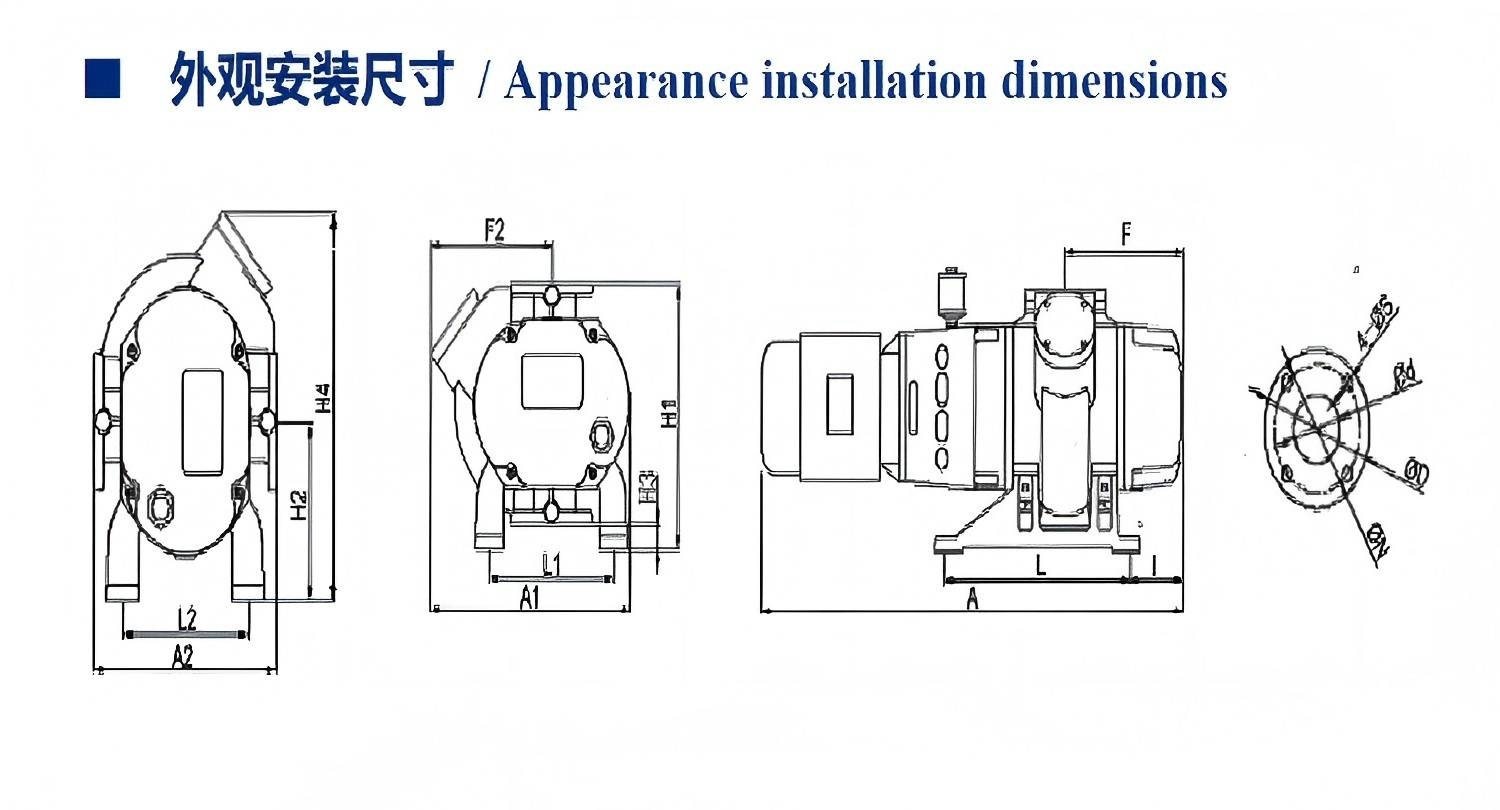

Size table

Working Principle & System Configuration

Core Operation Mechanism:
Features triple-stage "figure-8" rotors with precision helical gears providing 1:1 reverse synchronous rotation. Maintains 0.15-0.2mm clearance with special surface hardening for long-term stability.

Smart Control System:

Auto bypass valve activates at >5000Pa

Vibration monitoring sensors

Real-time temperature monitoring

Optional variable frequency drive

Configuration Options:

Standard: TRP-2000 + Twin Screw Pumps

High Performance: TRP-2000 + Secondary Roots + Triple Slide Valves

Special Applications: Explosion-proof + Stainless Steel + Gas Purification

3. Seven Competitive Advantages

Ultra-High Capacity: 2050m³/h for heavy industry demands

Industrial-Grade Construction: 465kg reinforced design for 24/7/365 operation

Zero Oil Contamination: ISO 8573-1 Class 0 certified

Energy Efficient: 25-30% savings vs conventional systems

Smart Monitoring: Standard IoT remote interfaces

Extended Maintenance: 6000-hour service intervals

Versatile Installation: Horizontal/Vertical/Suspended mounting

4. Industry Application Cases

Case 1: Special Metallurgy

Vacuum degassing system for rare metal smelting:

Increased capacity to 15 tons/batch

Reduced gas content below 5ppm

Annual production value increased by ¥20 million

Case 2: Petrochemical

Large-scale vacuum distillation:

50 tons/hour processing capacity

99.99% product purity

35% energy reduction

Case 3: PV Coating

Solar panel production line:

Achieves 10⁻⁴Pa working vacuum

±1% coating uniformity

98.5% overall equipment effectiveness

5. Frequently Asked Questions

Q1: What's the operational reliability?
A: Military-grade bearings with 50,000 hours MTBF

Q2: Handling high-temperature gases?
A: Optional water-cooled jacket for 200℃ process gases

Q3: Noise reduction options?
A: Two-stage silencer standard, optional acoustic enclosure (<65dB)

Q4: Maintenance requirements?
A: Every 6000 hours:

Replace special grease (7L)

Inspect gear meshing

Clean cooling ducts

Q5: Explosion-proof certifications?
A: ATEX/IECEx certified for Zone1/21 hazardous areas

Q6: Startup duration?
A: 8-10 minutes to working vacuum (10m³ system volume)

Q7: Extreme environment operation?
A: Special versions for -40℃ to 60℃ environments

Q8: Vibration control standards?
A: <3.5mm/s velocity (ISO10816-3 G6.3 compliant)

Q9: Monitoring interfaces?
A: Standard RS485/Modbus TCP, optional OPC UA

Q10: Warranty coverage?
A: 12 months standard,
