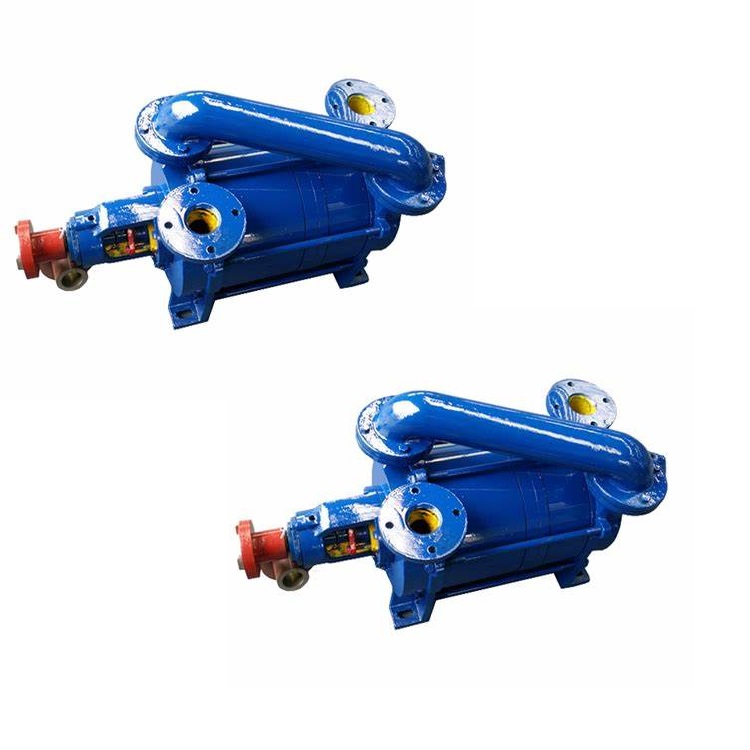

TXV Series Double-Stage Liquid Ring Vacuum Pump

TXV180 High Vacuum Two-Stage Liquid Ring Vacuum Pump

The TXV series is especially suitable for vacuum drying, evaporation, distillation, concentration, filtration, dehydration and degassing processes in various industries such as food, chemical, pharmaceutical, electric power, paper, textile, metallurgy, etc. The single-stage liquid ring vacuum pump is suitable for low vacuum requirements with large suction volume, but in high vacuum range, its suction volume attenuates severely. The two-stage liquid ring vacuum pump can obtain a larger suction volume in a higher vacuum range and is more suitable for working conditions requiring a larger suction volume while maintaining a high vacuum degree

Pumping speed :
1450RPM
Type :
TXV180
Motor power :
5.5KW
Ultimate vacuum :
33

Inquire Now

Product Details

Product Description:

The TXV series double-stage liquid ring vacuum pump is a new product developed based on the 2SK series. It features a two-stage compression process, ensuring a smooth pumping speed in the high vacuum range or maintaining a high vacuum in a large pumping rate range. In higher vacuum working conditions, its efficiency is 35% - 40% higher than that of a single-stage liquid ring pump, with reduced energy consumption. It has fewer parts, enhancing rigidity and toughness, and is easy to assemble and maintain. The suction pressure range is wider, working between 25mbar and 1013mbar. It has lower energy consumption, saving 15% - 20% compared to traditional products. The shaft length is reduced, reducing potential hazards to mechanical seals. It complies with DIN 24960 standard for mechanical seals, and various mechanical seal configurations are available. There are a variety of specifications and optional materials to suit different harsh environments. The scope of supply includes pump heads, whole pumps, vacuum pump units, and complete sets of units. It also has single and double end mechanical seals and multiple flushing solutions, with precision castings, high standard accessories, imported bearings, and is energy-saving and of high quality.

Product parameters:

Model	Ultimate pressure (hpa) Ultimate pressure	Maximum suction capacity (m3/h) Max.suction capacity	Rotational speed (rpm) Speed	Motor power (kw) Motor power	Suction and exhaust port (mm) Inlet/Outlet port
TXV140	33	145	1450	4.0	DN40
TXV180	33	186	1450	5.5	DN40
TXV300	33	270	1450	7.5	DN50
TXV350	33	342	1450	11.0	DN50
TXV400	33	425	1450	15.0	DN50
TXV500	33	501	1450	18.5	DN65
TXV600	33	616	1450	22.0	DN65
TXV800	33	862	975	30.0	DN100
TXV1200	33	1252	975	37.0	DN100
TXV1600	33	1589	975	45.0	DN100

Product features:

Fewer parts for enhanced rigidity, toughness, easy assembly and convenient maintenance.
Wider suction pressure range from 25mbar to 1013mbar.
Lower energy consumption, saving 15% - 20% compared to traditional products.
Reduced shaft length to minimize potential hazards to mechanical seals.
Complies with DIN 24960 standard for mechanical seals, with various seal configurations available.
Multiple specifications and optional materials for different application environments.

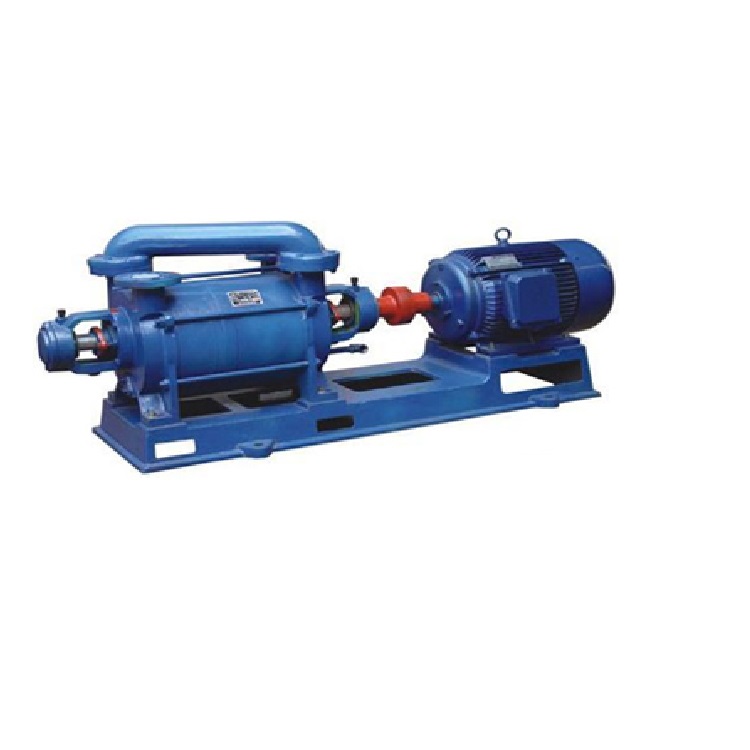

Different scope of supply options available.
Single and double end mechanical seals and multiple flushing solutions.
Precision castings, high standard accessories, imported bearings, energy-saving and high quality.
