· Versatile Liquid Ring Pump Technology for Industrial ApplicationsThe image should highlight the pump’s ability to handle wet gases, vapors, and even corrosive substances. Emphasize its robust design, low maintenance requirements, and efficiency in industrial systems such as chemical manufacturing, power generation, and wastewater treatment.
The TXV series double-stage liquid ring vacuum pump is a new double-stage liquid ring vacuum pump developed by our company based on the 2SK series. It is designed with a two-stage compression process, which enables a smooth pumping speed in a high vacuum range or maintains a high vacuum in a large pumping rate range. Under higher vacuum working conditions, its efficiency is 35% to 40% higher than that of a single-stage liquid ring pump, and the energy consumption is also correspondingly reduced.
The TXV series is especially suitable for vacuum drying, evaporation, distillation, concentration, filtration, dehydration and degassing processes in various industries such as food, chemical, pharmaceutical, electric power, paper, textile, metallurgy, etc. The single-stage liquid ring vacuum pump is suitable for low vacuum requirements with large suction volume, but in high vacuum range, its suction volume attenuates severely. The two-stage liquid ring vacuum pump can obtain a larger suction volume in a higher vacuum range and is more suitable for working conditions requiring a larger suction volume while maintaining a high vacuum degree
The CL series large capacity liquid ring vacuum pump is engineered to handle high-demand industrial applications with exceptional reliability and efficiency. Known for its robust construction and low maintenance requirements, the CL series is ideal for processes requiring high suction volumes and moisture handling, making it a preferred choice in industries like chemical processing, power generation, and pulp and paper.
Introduction:

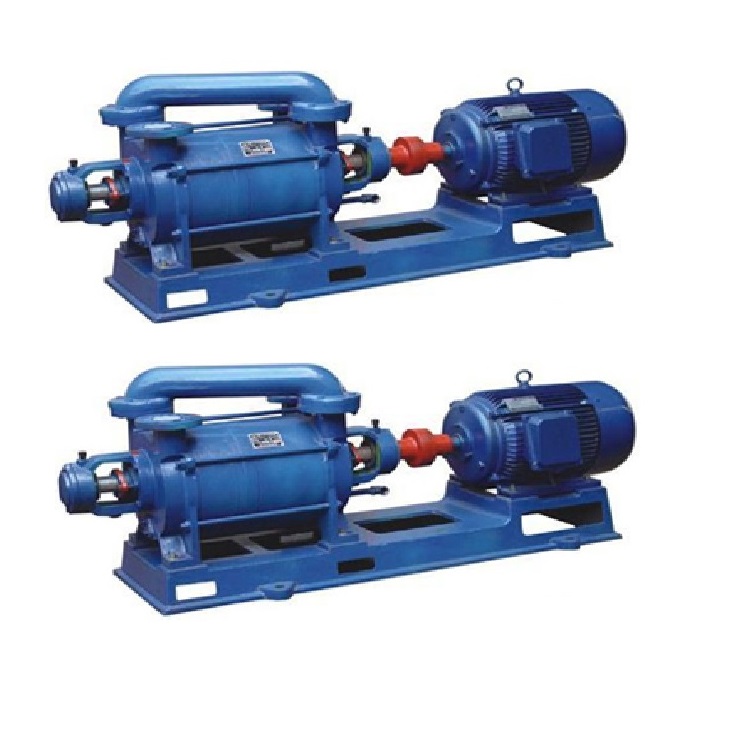

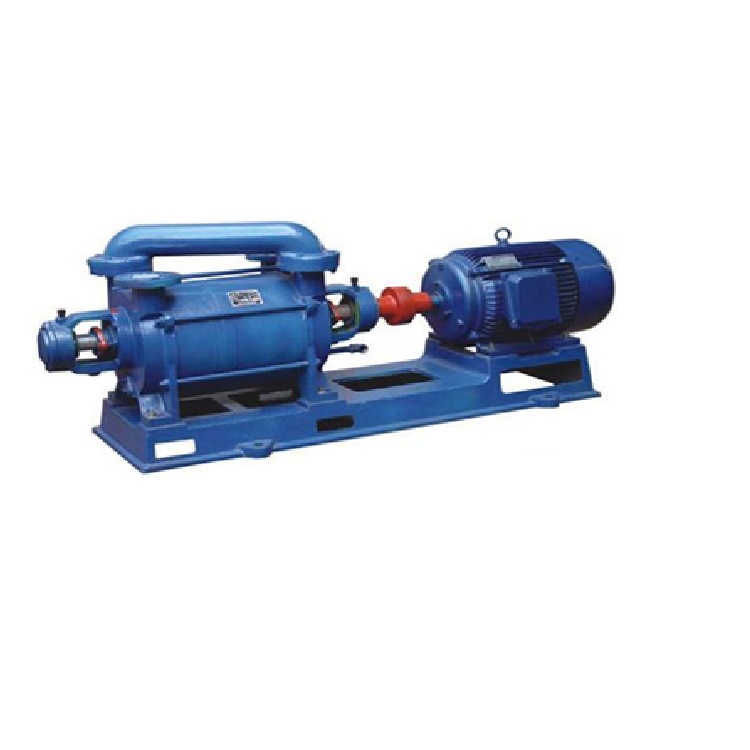

2BV series liquid ring vacuum pump is suitable for suction gas and vapour ,and the suction pressure can reach 33mbar (abs.)(i.e.97% vacuum degree ).When the liquid ring vacuum pump works under the condition that the suction pressure is near the limited vacuum (saturated pressure of the operating liquid )for a long time ,it should couple with the cavitation protection pipe in order to protect the pump .When it’s used as a compressor ,the maximum pressure is 0.26mpa（abs).As a new generation of energy-saving product ,2BV series liquid ring vacuum pump will replace the SK and 2SK series liquid ring vacuum pumps and W,WY,WL series reciprocating vacuum pumps completely with their superior performance and advantages .
2BV6 series liquid ring vacuum pumps and compressors are mainly used for pumping the explosive gas or working in the flammable and explosive environment .The technical parameter of each type is the same as the corresponding type of the 2BV2and 2BV5 series products .
