Oil Lubricated Rotary Vane Vacuum Pump for Industrial ApplicationsThis oil-lubricated rotary vane vacuum pump is designed for high-performance applications in industrial environments, ensuring reliable vacuum creation and smooth operation. The image should clearly show the oil reservoir, rotating vanes, and overall ruggedness, making it ideal for heavy-duty applications like material handling, packaging, and vacuum drying.

Type :
TX-21

Inquire Now

Product Details

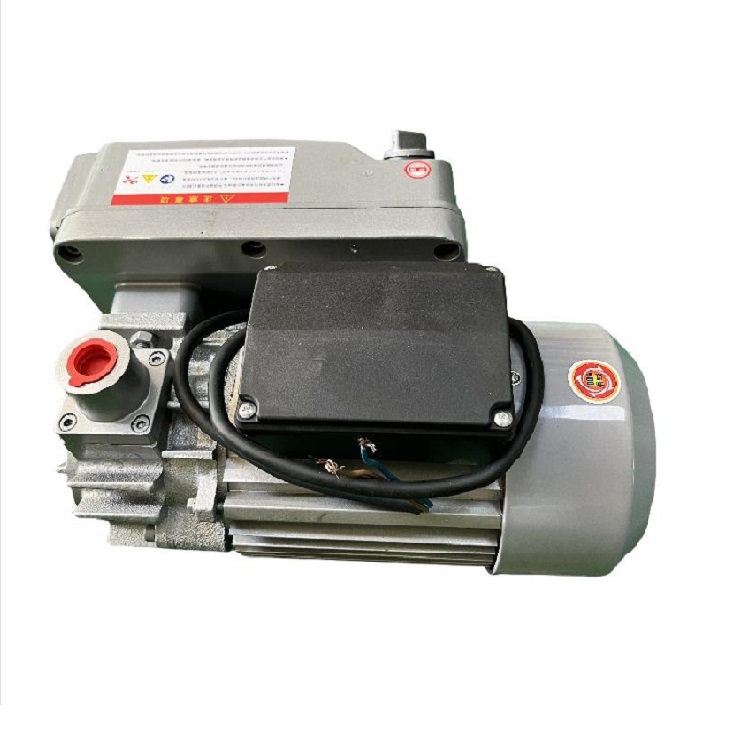

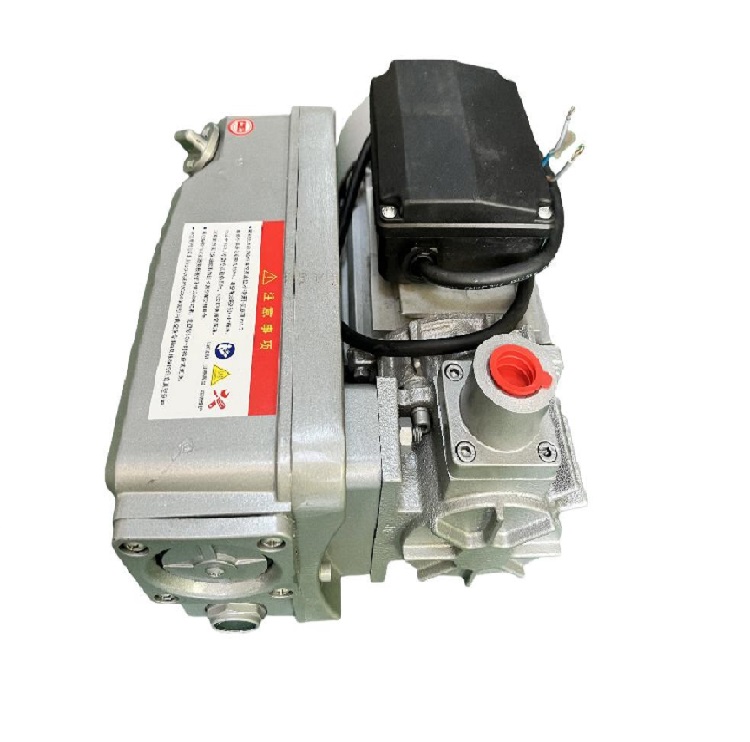

Oil Lubricated Rotary Vane Vacuum Pump:

The image should focus on highlighting the design features of the oil-lubricated rotary vane vacuum pump, showing its sturdy construction, pump body, and oil lubrication system, suitable for various industrial applications.

Technical parameter：

Type item	TX-21	TX-25	TX-40	TX-63	TX-100	TX-160	TX-200	TX-250	TX-300	TX-630
Rated pumping speed（m3/h）	25	25	40	63	100	160	202	250	302	630
Ultimate Pressure (mnar)	0.1-0.5	0.1-0.5	0.1-0.5	0.1-0.5	0.1-0.5	0.1	0.1	0.1	0.1	0.1
Motor power (KW)	0.75	0.75	1.5	1.5	3	4	4.5	5.5	7.5	15
Motor speed (rpm)	2880	2880	1440	1440	1440	1440	1440	1440	1440	1440
Noise (dB(A))	60	62	64	65	66	71	73	73	75	74
Operating temperature (℃)	80	82	83	84	85	65	72	81	83	85
Oil consumption (L)	1	1	1	2	2	5	5	7	7	22
Water vapor allowable pressure (mbar)	40	40	40	40	40	40	40	40	40	40
Water vapor removal rate (kg/h)	0.4	0.4	0.6	1	1.6	2.5	4	4.5	5	7.5
Air intake connection	无	G3/4	G1 1/4"	G1 1/4"	G1 1/4"	G2"	G2"		G2"	DN100
Weight (kg)	19	19	48	58	72	157	157	195	211	660

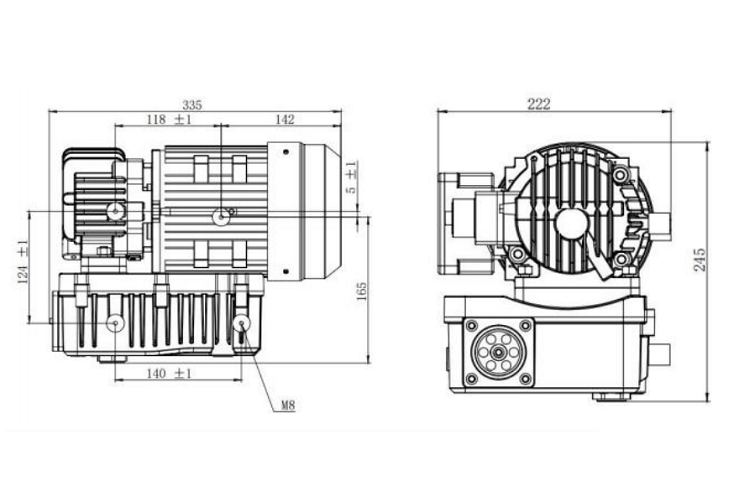

Size (cm)	432620	43.526.520.5	653028	654329.5	724329.5	865044	865044	985644	1015644	1788873

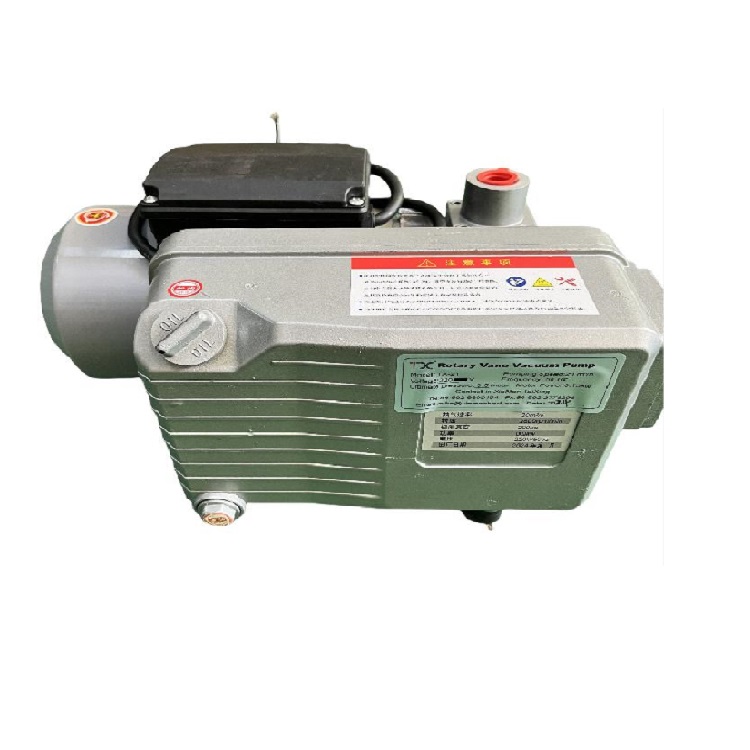

Oil Lubricated Rotary Vane Vacuum Pump for Industrial Applications
This oil-lubricated rotary vane vacuum pump is designed for high-performance applications in industrial environments, ensuring reliable vacuum creation and smooth operation. The image should clearly show the oil reservoir, rotating vanes, and overall ruggedness, making it ideal for heavy-duty applications like material handling, packaging, and vacuum drying.

Key Features:

o Oil-lubricated for better performance and durability

o Rotary vane technology for smooth and efficient vacuum operation

o High flow capacity suitable for industrial applications

o Robust construction for long-term use in factories and processing plants

The image should ideally feature the pump in an industrial setting, with clear visibility of key components such as the oil lubrication system and the pump's mounting features. This helps users quickly understand its practical uses and functionality.
