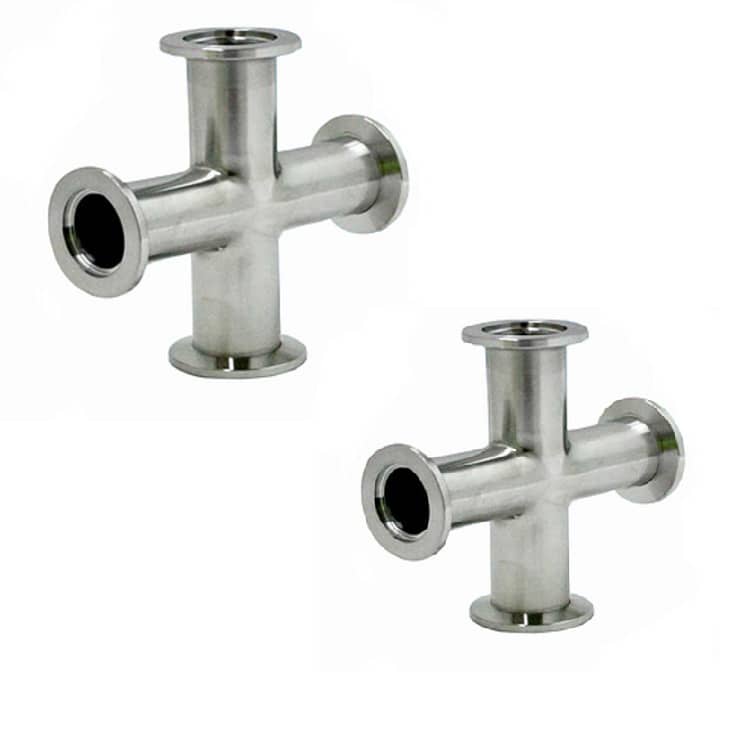

KF 4-Way Crosses ISO-KF Vacuum Fittings for Industrial Applications

Product Description

Type: 4-way vacuum connector (four-way connection)

Standard compatibility: ISO-KF (International standard), QF (Quick Flange), NW (Nordsehloss, German standard)

Material: Stainless Steel

Connection method: Connected by KF vacuum flange and fixed with wing-nut clamps

Application: It is used for connecting multi-directional pipelines or equipment in vacuum systems to achieve four-channel integration.

Key characteristics

Multi-directional connection: Supports the simultaneous connection of four KF flanges, simplifying the layout of complex vacuum systems.

2. Standardized design: Compatible with ISO-KF, QF and NW standards, with strong versatility.

3. Quick installation: Fixed with wing-shaped nuts, no special tools are required, and disassembly and assembly are convenient.

4. Corrosion resistance: Made of stainless steel, it is suitable for high vacuum and corrosive environments.

Typical applications

Semiconductor manufacturing equipment

Vacuum coating system

Vacuum device for scientific research laboratories

Industrial vacuum piping system

Discover high-quality KF 4-Way Crosses (ISO-KF/QF/NW) for vacuum systems. Learn about stainless steel vacuum fittings, technical specs, certifications, and FAQs. Ideal for OEMs and industrial buyers.

This guide covers everything about KF 4-Way Crosses, including material (stainless steel), ISO-KF standards, installation tips, and common applications. Perfect for engineers, procurement specialists, and OEM manufacturers.

Introduction to KF 4-Way Crosses

KF 4-Way Crosses (also known as ISO-KF, QF, or NW crosses) are essential vacuum fittings that connect four KF-sized flanges in high-pressure systems. Made from stainless steel, these fittings ensure durability, corrosion resistance, and leak-proof performance in industrial applications.

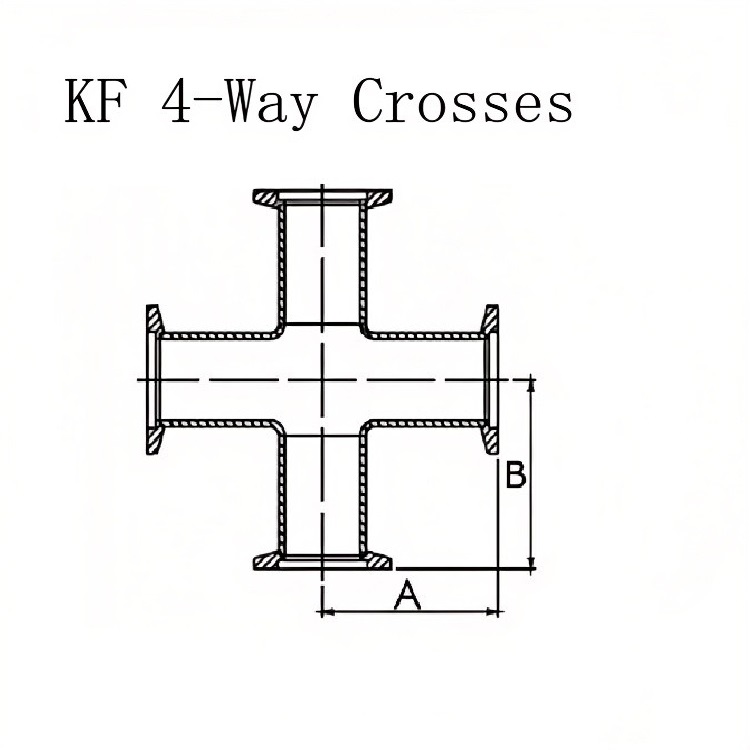

Technical Specifications of KF 4-Way Crosses

Why Choose Stainless Steel KF 4-Way Crosses?

1. Superior Durability & Corrosion Resistance

Stainless steel ensures longevity, even in harsh environments (chemical labs, high-moisture areas).

2. Leak-Proof Performance

Precision-engineered for high-vacuum sealing, reducing system downtime.

3. Easy Installation & Maintenance

Compatible with wing-nut clamps, allowing quick assembly and disassembly.

Common Applications of KF 4-Way Crosses

✅ Semiconductor Manufacturing – Ensures contamination-free vacuum transfer.
✅ Pharmaceutical & Medical Devices – Meets strict hygiene and pressure requirements.
✅ Aerospace Testing – Used in wind tunnels and space simulation chambers.
✅ Research Laboratories – Reliable connections for sensitive experiments.

Case Study: KF 4-Way Crosses in Semiconductor Production

Client: A leading semiconductor manufacturer in Germany
Challenge: Needed leak-resistant vacuum fittings for a new cleanroom setup.
Solution: Installed stainless steel KF 4-Way Crosses with electropolished finish.
Result:
✔ Zero leakage issues after 12 months
✔ Reduced maintenance costs by 30%
✔ Increased production efficiency

10 FAQs About KF 4-Way Crosses

1. What is the difference between ISO-KF, QF, and NW flanges?

These terms are interchangeable—ISO-KF (QF/NW) refers to the same flange standard.

2. Can KF 4-Way Crosses handle ultra-high vacuum (UHV) conditions?

Yes, when paired with proper sealing (Viton or EPDM O-rings).

3. Are custom sizes available?

Yes, we provide OEM customization for unique flange dimensions.

4. What clamp types are compatible?

Standard wing-nut clamps (KF clamps) are used for secure fastening.

5. How do I prevent leaks in vacuum systems?

Ensure proper O-ring seating and use high-quality stainless steel fittings.

6. What certifications do your KF crosses have?

ISO 9001, CE, and RoHS compliance for industrial safety.

7. Can I use KF 4-Way Crosses with aggressive chemicals?

Grade 316 stainless steel offers better chemical resistance.

8. What’s the lead time for bulk orders?

Typically 2-4 weeks, depending on order volume.

9. Do you provide installation support?

Yes, we offer technical guides and engineer consultations.

10. How do I clean and maintain KF vacuum fittings?

Use alcohol wipes or ultrasonic cleaning for optimal performance.

Conclusion: Why Trust Our KF 4-Way Crosses?

Our ISO-KF 4-Way Crosses are engineered for precision, durability, and vacuum integrity. Whether you're in semiconductors, pharmaceuticals, or aerospace, our stainless steel fittings ensure reliable performance.
