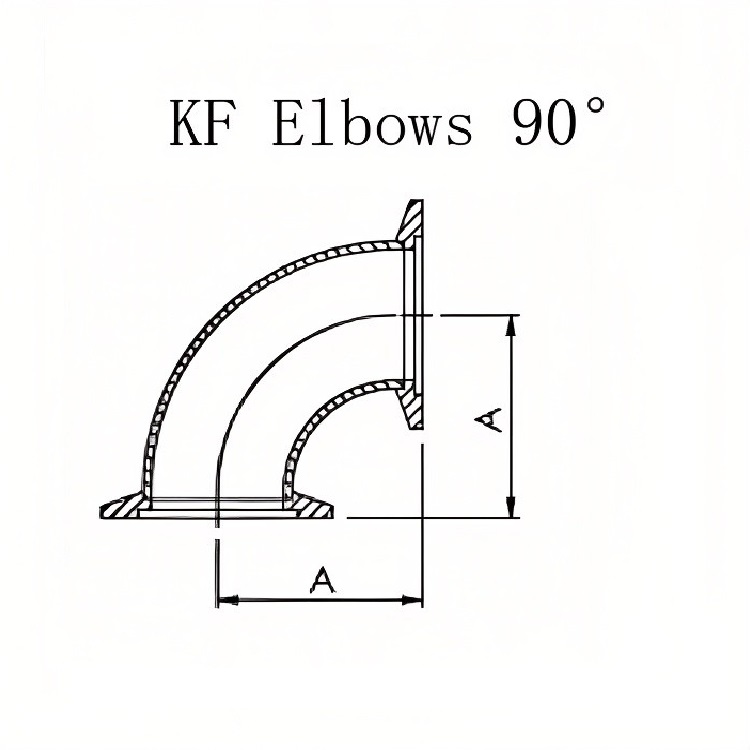

1. Product Introduction: 304 Stainless Steel Vacuum Fittings KF Elbows 90°

Premium 304 stainless steel KF 90° elbows provide reliable, leak-proof connections for high vacuum systems (10⁻³ to 10⁻⁶ mbar). These precision-engineered components feature:

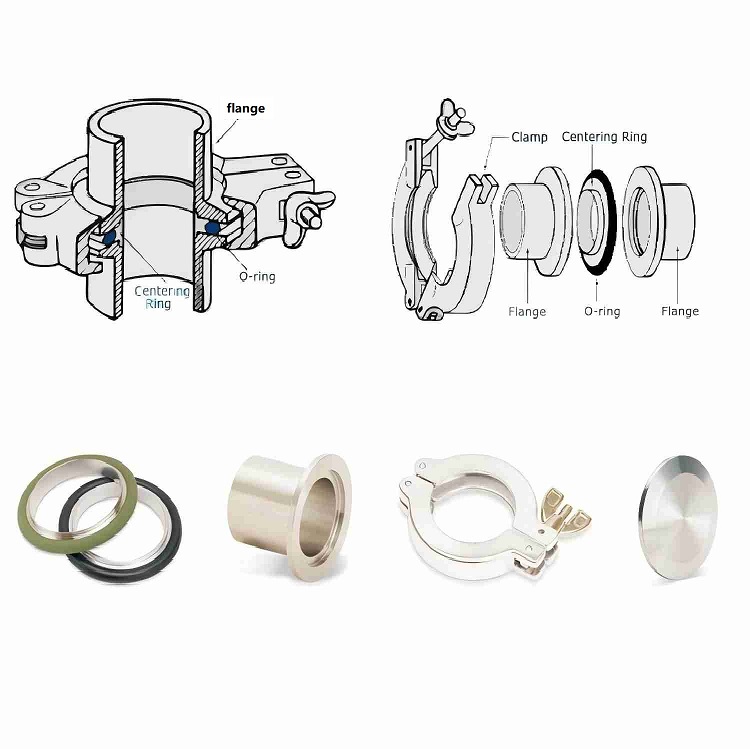

ISO-standard KF flange connections

O-ring sealed joints

304 stainless steel construction

Multiple size options (KF16 to KF50)

Temperature range: -200°C to 400°C

2. Technical Specifications

3. Key Product Features

✔ Superior Sealing Performance
Double O-ring design ensures vacuum integrity up to 10⁻⁶ mbar

✔ Exceptional Durability
304 stainless steel construction resists corrosion and oxidation

✔ Precision Manufacturing
CNC-machined surfaces guarantee perfect flange mating

✔ Wide Compatibility
Standard KF flange connections work with all major vacuum components

✔ Easy Installation
Quick-clamp system allows for tool-free assembly

4. Industry Applications

Semiconductor Manufacturing

Vacuum deposition systems

Etching equipment

Thin film coating applications

Scientific Research

Particle accelerators

Electron microscopes

Mass spectrometers

Medical Technology

MRI systems

Laboratory analyzers

Sterilization equipment

Industrial Processes

Vacuum furnaces

Freeze drying systems

Sputtering equipment

5. Installation Case Studies

Case 1: Semiconductor Fabrication Plant
A leading chip manufacturer upgraded their vacuum deposition system with KF40 elbows, achieving:

15% improvement in vacuum stability

Reduced particle contamination

Extended maintenance intervals

Case 2: University Research Lab
Physics laboratory installed KF25 elbows in their particle accelerator, resulting in:

Consistent 10⁻⁶ mbar vacuum levels

Elimination of virtual leaks

Improved experimental accuracy

6. Frequently Asked Questions (10 Expert Answers)

Q1: What vacuum range do these elbows support?
A: Designed for high vacuum applications from 10⁻³ to 10⁻⁶ mbar.

Q2: How do I select the right size?
A: Match to your existing tubing - common sizes are KF16 (DN16), KF25 (DN25), etc.

Q3: What maintenance is required?
A: Inspect O-rings annually and replace if worn. Clean flange surfaces before reassembly.

Q4: Can these withstand aggressive chemicals?
A: 304 stainless steel offers good chemical resistance, but for harsh environments consider 316L.

Q5: What's the temperature limit?
A: Standard Viton O-rings are rated for -20°C to 200°C. Higher temperatures require special O-rings.

Q6: How do I check for leaks?
A: Use a helium leak detector or monitor vacuum gauge response during pump-down.

Q7: Are these compatible with other flange types?
A: Yes, with proper adapters they can connect to CF, NW, or other flange systems.

Q8: What torque should flange clamps use?
A: Typically 2-3 Nm for KF16-KF25, 4-5 Nm for KF40-KF50 sizes.

Q9: Can I get custom angles?
A: Standard is 90°, but 45° and other angles can be custom manufactured.

Q10: How long do O-rings last?
A: With proper care, 3-5 years in normal service conditions.
