KF 45° Vacuum Elbow Fittings - High-Quality Stainless Steel Vacuum Connectors for Lab Systems

45-degree KF vacuum elbow fittings in stainless steel, compatible with KF16/KF25/KF40/KF50 flanges for laboratory vacuum systems

Precision-engineered 45° KF vacuum elbow fittings designed for leak-free connections in high-vacuum applications. These stainless steel elbows feature:

Multi-size compatibility: Available for KF16 (23.1mm), KF25 (33.88mm), KF40 (45.1mm), and KF50 (62.5mm) flange systems

Ultra-high vacuum performance: Maintains integrity up to 10⁻⁸ mbar

Corrosion-resistant construction: 304/316 stainless steel options

Precision machining: Mirror-polished surfaces (Ra≤0.8μm)

Quick installation: Compatible with standard KF clamping systems Ideal for:

Semiconductor fabrication equipment

Analytical instrument vacuum lines

Particle accelerator vacuum systems

Thin-film deposition systems

Research laboratory vacuum setups

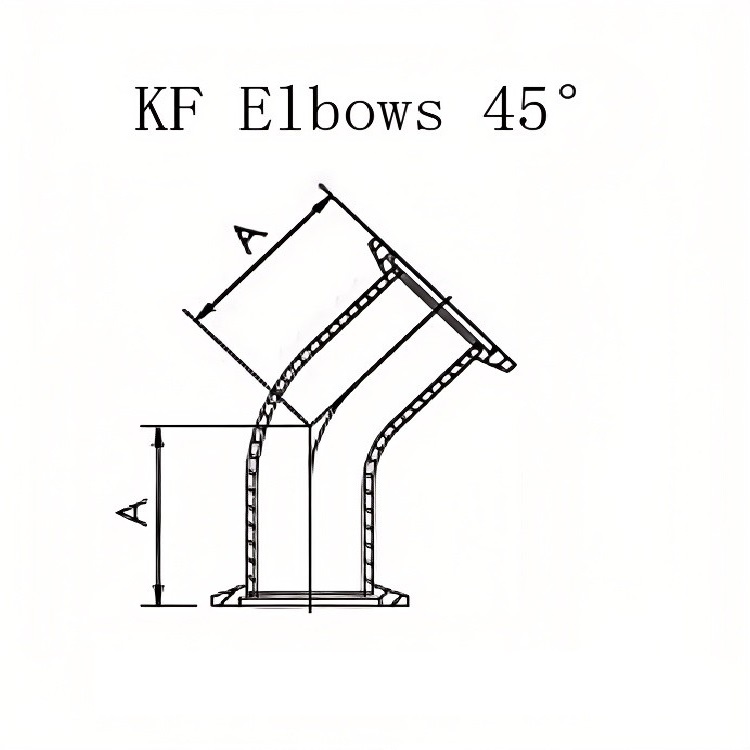

Vacuum Fittings KF Elbows 45° – Complete Guide

Introduction

Vacuum Fittings KF Elbows 45° are essential components in vacuum systems, offering smooth directional changes while maintaining airtight seals. These fittings are widely used in semiconductor manufacturing, aerospace, and laboratory applications due to their precision engineering and reliability.

How Vacuum Fittings KF Elbows 45° Work

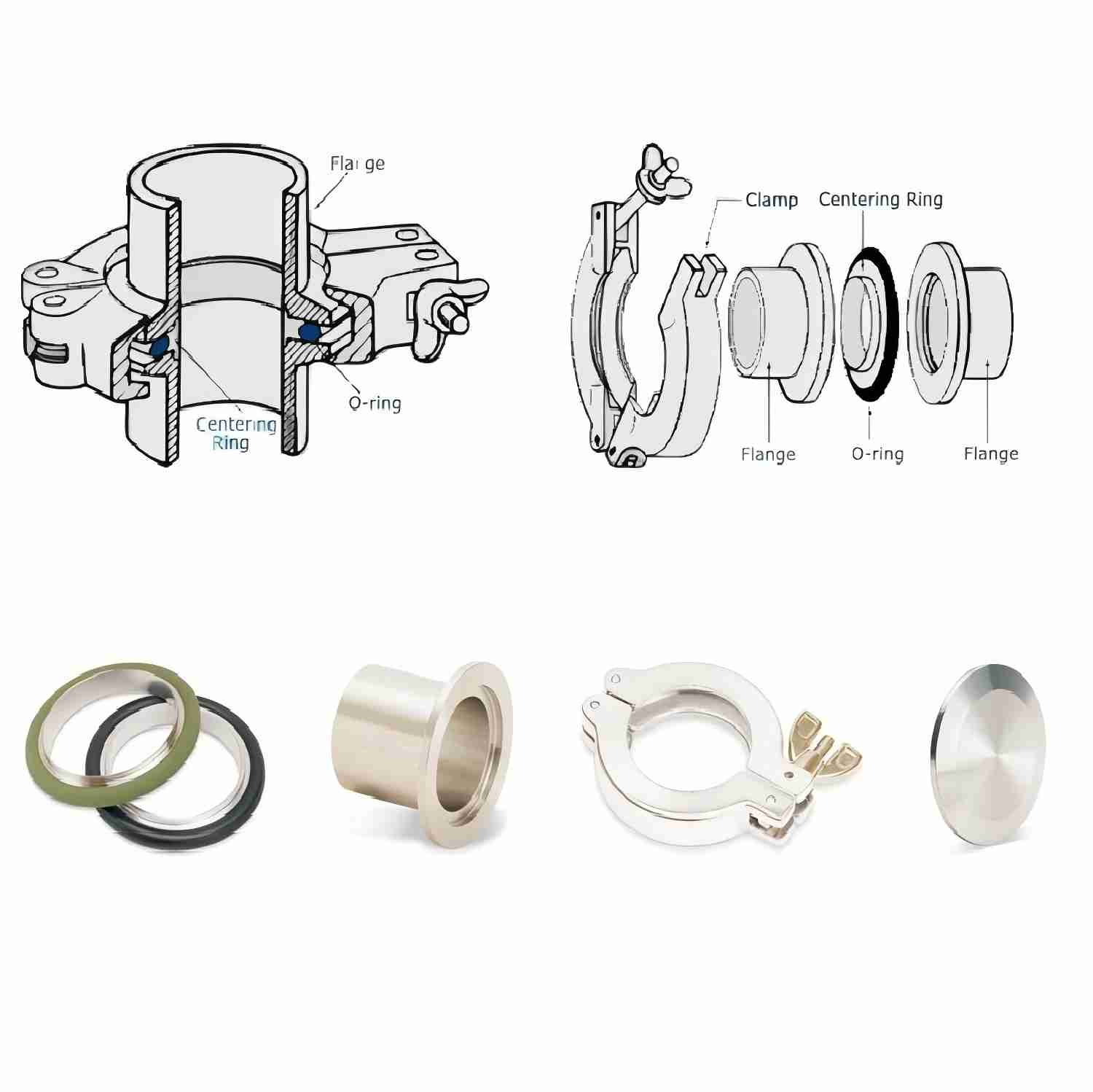

These 45-degree elbow fittings connect vacuum tubes and chambers at an angle, reducing turbulence and ensuring smooth airflow. The KF (Klein Flange) design provides a secure, leak-proof connection using clamps and O-rings, making them ideal for high and ultra-high vacuum environments.

Product Features

✔ Precision Machining – Ensures tight seals and minimal gas leakage.
✔ Corrosion-Resistant Materials – Stainless steel or aluminum for long-term durability.
✔ Easy Installation – Compatible with standard KF flange systems.
✔ High Pressure Resistance – Suitable for industrial and scientific vacuum applications.
✔ Compact Design – Saves space in complex vacuum setups.

Applications of Vacuum Fittings KF Elbows 45°

Semiconductor Manufacturing – Used in CVD and etching systems.

Pharmaceutical Industry – Ensures contamination-free vacuum processing.

Research Laboratories – Essential for vacuum chambers and analytical instruments.

Aerospace & Automotive – Applied in leak testing and vacuum coating.

Case Study: Improving Vacuum System Efficiency

A leading semiconductor manufacturer upgraded its vacuum lines using KF25 45° elbows, reducing pressure drops by 15% and improving process stability. The leak-proof design minimized maintenance downtime, enhancing productivity.

FAQs About Vacuum Fittings KF Elbows 45°

1. What is the maximum pressure rating for KF elbows?

Most KF elbows support up to 10^-9 mbar in high-vacuum applications.

2. Are these fittings compatible with all KF flange sizes?

Yes, they are available in KF16, KF25, KF40, and KF50 for universal compatibility.

3. Can I use KF elbows in corrosive environments?

Stainless steel models offer excellent corrosion resistance for harsh conditions.

4. How do I ensure a leak-free connection?

Use proper O-rings and tighten clamps evenly for optimal sealing.

5. Are these fittings reusable?

Yes, they can be disassembled and reinstalled without performance loss.

6. What industries benefit most from 45° KF elbows?

Semiconductor, aerospace, and laboratory sectors rely on them for precision vacuum control.

7. Do you offer custom sizes?

Standard sizes are available, but custom machining can be arranged.

8. How do KF elbows compare to welded elbows?

KF elbows allow easy disassembly, while welded elbows are permanent.

9. What maintenance is required?

Periodically check O-rings and clamps for wear.

10. Can these elbows handle high temperatures?

Stainless steel variants withstand temperatures up to 150°C (302°F).

Conclusion

Vacuum Fittings KF Elbows 45° are critical for optimizing vacuum system performance. With high durability, leak-proof sealing, and industry-wide applications, they ensure efficient and reliable operations. Choose the right KF16, KF25, KF40, or KF50 model for your needs.

For inquiries or orders, contact us today!
