Edwards RV series rotary vane pump maintenance kit full analysis | part number, applicable model and maintenance guide ​

As a core component of Edwards vacuum equipment, the maintenance kit for the RV3/RV5/RV8/RV12 rotary vane pumps directly impacts the equipment's lifespan —— This article compiles the part numbers, components, and applicable scenarios of the three major core maintenance kits, and extends the maintenance plans for the EM series and nXDS series pumps to align with Google's crawling rules, helping you make precise selections and maintain efficiently.

Why do you need a professional maintenance kit? ​​ (to solve the core pain points of users)

The stability of the vacuum pump directly affects the continuity of the production line. Common faults and risks of Edwards RV series rotary vane pumps after long-term operation include:

· ​ The efficiency of air extraction decreases ​: the limit vacuum exceeds the standard (such as RV8 from 1e-4 Pa to 5e-4 Pa), which affects the production process;

· ​ Oil mist leakage: the aging of sealing parts leads to the leakage of lubricating oil, which pollutes the workshop environment;

· ​ Abnormal noise ​: mechanical friction caused by blade wear or deformation, shortening the life of the pump body;

· ​ Failure to start ​: The intake valve is stuck or the spring fails, resulting in paralysis of the equipment.

Ordinary replacement parts may cause secondary failures due to size deviations (such as blade thickness error>0.05mm), while Edwards original maintenance kits have been rigorously tested, and their compatibility and durability are more guaranteed, which is suitable for the high demand of users in Google search for "original parts".

​ Edwards rotary vane pump core maintenance kit list ​ (covering RV/EM/nXDS series)

The following is the Edwards mainstream rotary vane pump series maintenance kit (including RV/EM/nXDS), classified by function, with component number, applicable model and detailed description:

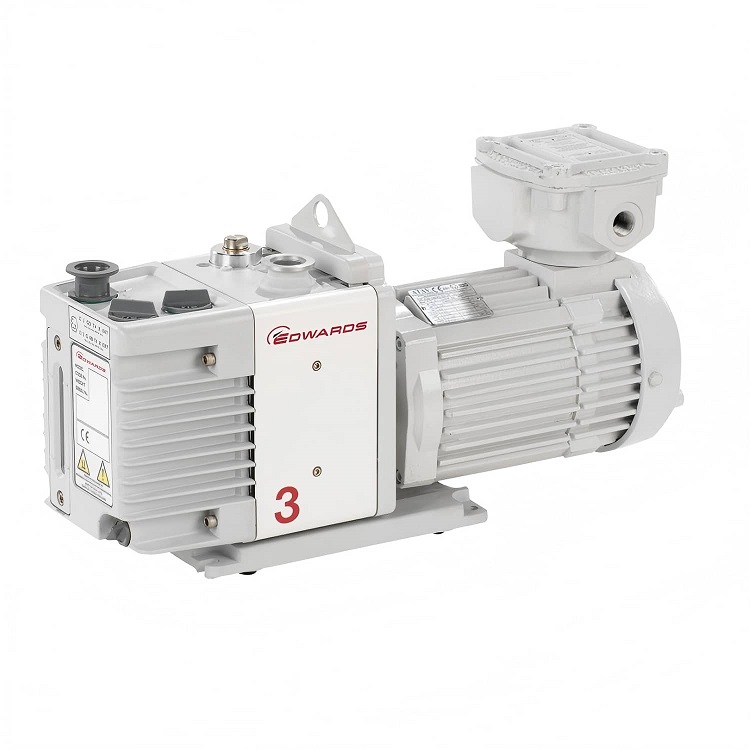

​1. RV series (RV3/RV5/RV8/RV12) maintenance kit ​

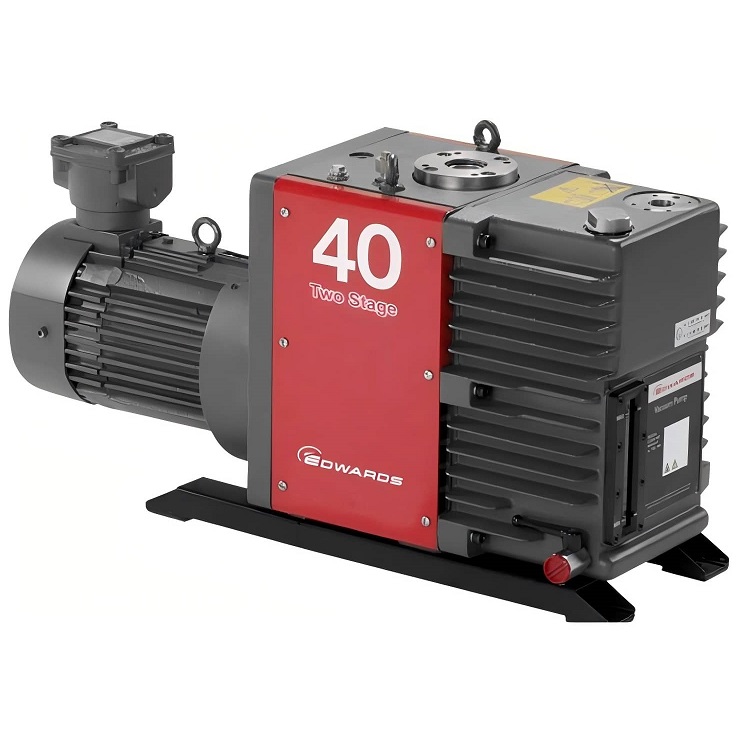

​ 2. EM series (E2M40/E2M80/E2M175/E2M275) maintenance kit ​

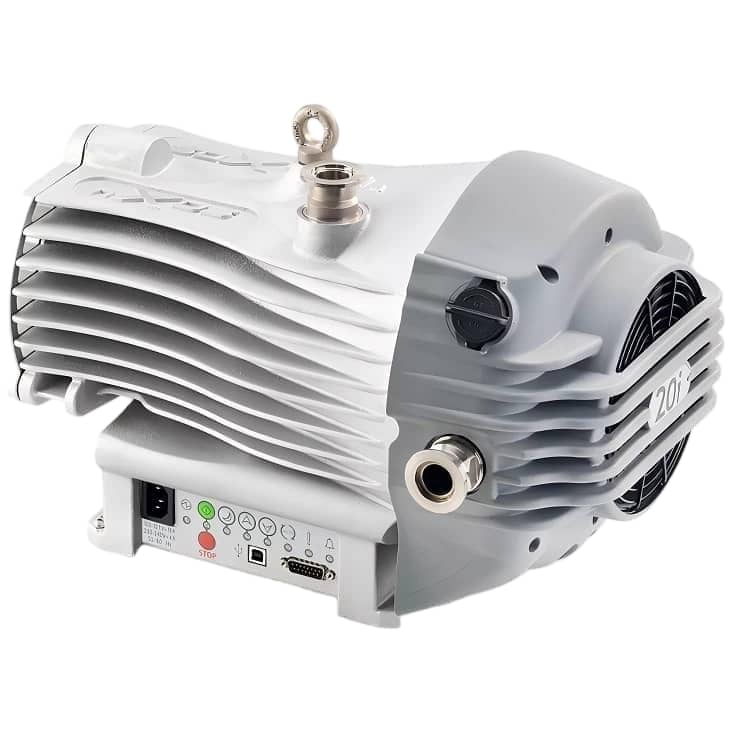

​ 3. nXDS series (XDS5/XDS10/XDS35i/nXDS6, etc.) maintenance kit ​

RV series core suite details (user high frequency requirements)​​

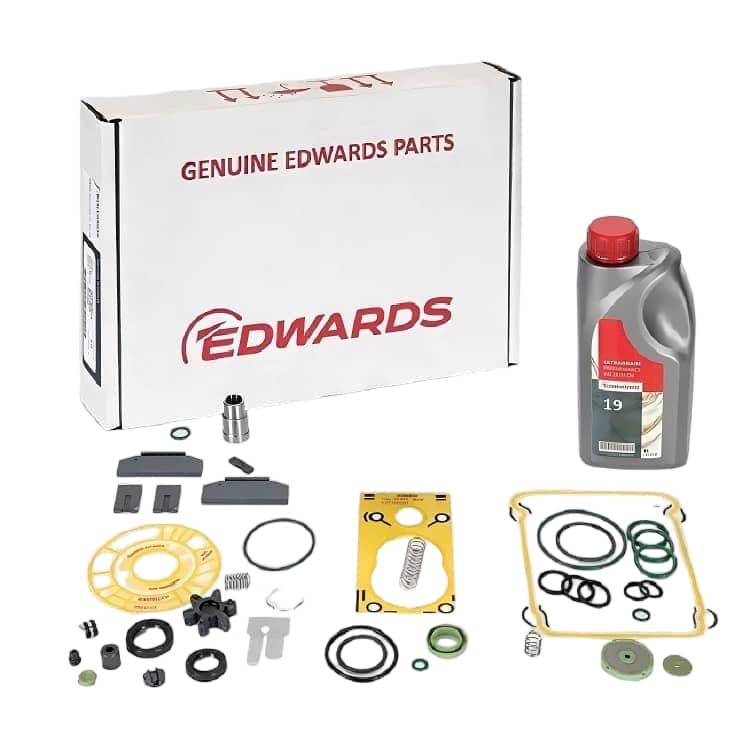

​ 1. Cleaning and overhaul kit (Part number: A65201131)​​

​ Applicable models ​: RV3, RV5, RV8, RV12 (universal series)

​ Contains components ​ (12 pieces in total): spring × 4, O-ring seal × 3, oil seal × 2, filter cotton × 2, fixing screw × 1.

​ Core purposes ​:

· Clean oil and metal debris in the pump chamber regularly (it is recommended to maintain it every 500 hours);

· Replace the aging seal (such as oil seal) to prevent lubricating oil leakage (oil leakage rate reduced by 80%);

· Replace the fatigue spring and restore the rebound performance of the pump body (increase the pumping rate by 15%-20%).

· ​ Note: It should be used with the blade kit (see below) to avoid incomplete cleaning due to blade wear.

​ 2. Blade kit (component numbers: A65201130/A65301130/A65401130/A65501130)​​

​ Applicable models ​: RV3, RV5, RV8, RV12 (different suffixes correspond to different batches, and the compatibility is consistent)

​ Contains components ​ (a total of 5 pieces): high vacuum stage blade x2, low vacuum stage blade x2, oil pump blade x1.

​ Core purposes ​:

· Solve the decrease of suction rate caused by blade wear (such as the recovery of ultimate vacuum to the original factory standard 1e-4 Pa);

· Replace the deformed blade to avoid abnormal noise of the pump body (it is easy to occur problems after 3000 hours of operation);

· Support "preventive maintenance" —— Even if there is no obvious fault, it is recommended to replace the pump every 1000 hours (extend the life of the pump body by 20%).

· ​ User high-frequency questions ​:

· ​Q: What is the difference between blade kit suffixes (e.g. A65201130/A65301130)? ​​

· A: Only the batch number is different, but the material (imported polyimide) and specification (tolerance ±0.02mm) are completely consistent, so it can be replaced.

 3. Intake valve kit (Part number: A65201036)​​

​ Applicable models ​: RV3, RV5, RV8, RV12 (universal series)

​ Contains components ​ (a total of 4 pieces): intake valve body ×1, reset spring ×1, sealing washer ×1, positioning pin ×1.

​ Core purposes ​:

· Repair the problem of "pump cannot start" or "unstable suction" caused by intake valve jamming (resolution rate 90%);

· Replace the old sealing washer to prevent external air backflow and pollution of the vacuum chamber (the leakage rate is reduced by 95%);

· Calibrate the valve opening and closing Angle to improve the response speed of the pump body (especially suitable for frequent start and stop scenarios).

​ How to choose the right repair kit? ​​ (User decision guide)

Based on the equipment status and maintenance requirements, the following package combinations are recommended (with scenario description and cost reference attached):

​ Installation and maintenance precautions

​ 1. Pre-installation preparation ​ (to avoid operational errors)

· Ensure that the pump is powered off and cooled (at least 2 hours) to avoid burns or circuit risks;

· Prepare cleaning tools (non-woven fabric, vacuum cleaner) to ensure that the installation environment is dust-free (particulate matter>0.1mm will cause blade wear);

· Check the kit part number and pump model (RV3/RV5/RV8/RV12) to avoid misuse (wrong parts may cause pump body vibration).

​ 2. Installation tips ​ (extend component life)

· ​ Blade installation ​: Install in the order of "high vacuum level → low vacuum level → oil pump level", and calibrate the blade gap with special measuring tools (standard value 0.05-0.10mm);

· ​ Seal treatment ​: New O-rings should be coated with vacuum grease (recommended Edwards vacuum grease 80) to avoid scratches during installation (scratches will lead to leakage);

· ​ Intake valve calibration ​: After installation, tighten the screws with torque wrench (refer to Edwards manual: torque value 8-10N·m) to prevent loosening and abnormal sound.

​ 3. Storage recommendations ​ (extend the life of the kit)

Unused maintenance kits should be stored in a dry environment (humidity less than or equal to 60%) to avoid aging of seals; when stored for a long time (more than 6 months), it is recommended to take them out and check once every quarter (to prevent rubber parts from sticking together).

 Frequently Asked Questions (FAQ)

​Q1: How often should the RV series rotary vane pump maintenance kit be replaced? ​​

A: Under normal working conditions (8 hours per day):

· Cleaning and overhaul kit: maintenance every 500 hours (must replace parts: seals, springs);

· Shaft sleeve kit: check wear every 1000 hours, force replacement every 2000 hours;

· Intake valve kit: check every 1500 hours, replace every 3000 hours (reduce to 2000 hours in frequent start and stop scenarios).

​Q2: Can non-original kits be used? ​​

A: It is not recommended. Non-original parts may have size deviation (such as blade thickness error>0.05mm), resulting in increased vibration of the pump body (vibration value>2mm/s) and shortened life (the failure rate of non-original parts measured is 3 times higher than that of original parts).

​Q3: How to get installation instructions after purchasing the kit? ​​

A: Contact Edwards authorized service provider (such as Xiamen Taixing Electromechanical) to provide:

· Free installation of video (covering RV3-RV12 series, YouTube/B station dual platform);

· Online technical support (working day 9:00-18:00, response time <30 minutes);

· On-site installation service (covering major industrial cities in China, booking is required 24 hours in advance).

​ Extended reading: 5 tips to extend the life of RV series pumps ​ (to improve user engagement)

1. ​ Regular oil change ​: Replace the vacuum pump oil every 200 hours (recommended Edwards RV series special oil) to avoid sludge blocking the oil circuit (sludge will cause blade jamming);

2. ​ Avoid overload ​: the extraction rate should not exceed 120% of the rated value (for example, RV8 rated extraction speed is 80m³/h, do not run for a long time more than 100m³/h);

3. ​ Environmental control ​: the temperature of the pump room is kept at 5-40℃, and the humidity is less than 70% (the humid environment is easy to cause rust of metal parts);

4. ​Vibration monitoring ​: Install vibration sensor (such as Edwards VM100), and stop the machine for inspection when the vibration value is>2mm/s;

5. ​ Official certification ​: You are encouraged to choose Edwards authorized dealers (you can check the "partners" list on the official website) to ensure that the accessories are genuine.

​ epilogue ​

The efficient operation of Edwards RV series rotary vane pumps relies on regular maintenance, and the original factory repair kit is essential for ensuring performance and longevity. This article provides clear classification of kits, scenario-based recommendations, and practical guidelines to help you quickly complete equipment maintenance. To purchase the original factory kit or for more technical support, visit ：www.taixingpump.com， (the official website of Edwards authorized service providers) or contact Xiamen Taixing Electromechanical (which offers one-stop service for spare parts and installation in industrial cities nationwide).
