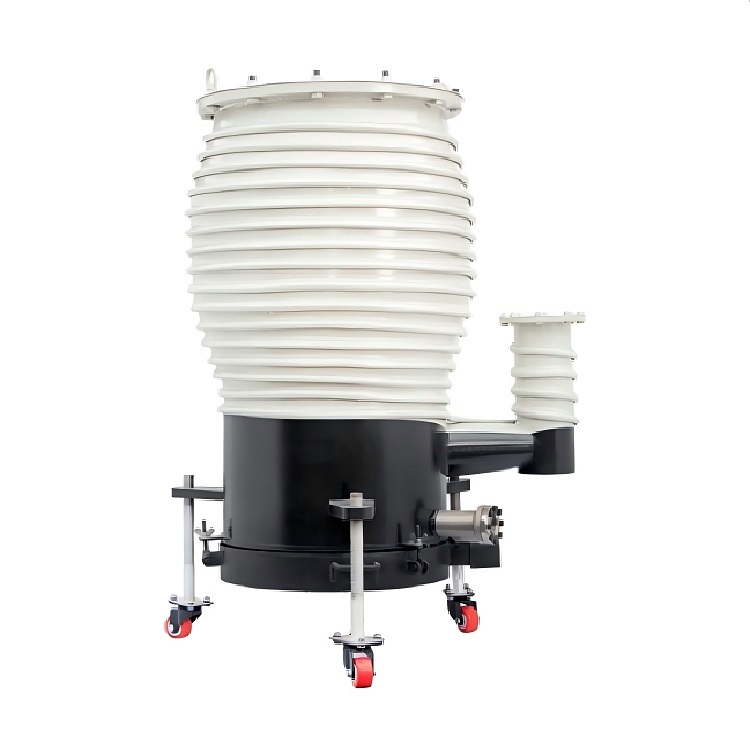

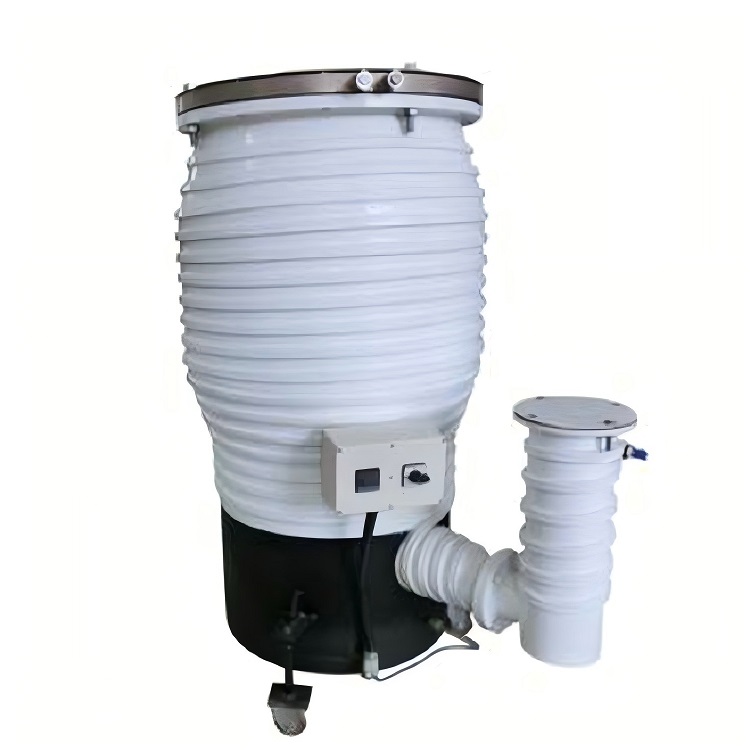

KT series high vacuum oil diffusion pump, designed for achieving vacuum levels of 10⁻² to 10⁻⁵ Pa, featuring a convex cavity design for 30% higher pumping speed compared to K series pumps.

KT Series High-Vacuum Oil Diffusion Pumps: The Premier Choice for Vacuum Technology

In modern industrial production and scientific research, obtaining a high-vacuum environment is crucial. The KT series high-vacuum oil diffusion pumps have become the preferred equipment for many enterprises and research institutions to achieve high and ultra-high vacuum conditions due to their outstanding performance. This article will provide a comprehensive introduction to the KT series high-vacuum oil diffusion pumps, including product features, technical specifications, application cases, and frequently asked questions, aiming to offer you a complete and in-depth understanding of the product.

Target Industry or Application Scenario Description

The KT series high vacuum oil diffusion pump is designed for industries requiring high and ultra-high vacuum levels, such as semiconductor manufacturing, research laboratories, and advanced material processing. Its convex cavity design ensures 30% higher pumping speed compared to traditional K series pumps, making it ideal for applications demanding efficient and reliable vacuum performance.

Long-Term Operating Features:

Engineered for durability, the KT series high vacuum oil diffusion pump delivers consistent performance over extended periods.

Its convex cavity design ensures higher pumping efficiency and reliability in demanding industrial environments.

The low oil backstreaming rate and efficient cooling system minimize maintenance requirements and operational downtime.

Optimized Highlights:

Ultra-High Vacuum Performance: Achieves and maintains vacuum levels as low as 10⁻⁵ Pa.

Convex Cavity Design: Increases pumping speed by 30% compared to traditional K series pumps.

Low Oil Backstreaming Rate: Ensures clean operation with minimal contamination.

Durable Construction: Built with high-quality materials for long-term reliability.

Versatile Application: Ideal for semiconductor manufacturing, research laboratories, and advanced material processing.

Application Cases

Vacuum Coating Industry

In vacuum coating processes, the KT series high-vacuum oil diffusion pumps can quickly create a stable high-vacuum environment, ensuring the uniformity and high quality of the coating. For example, an optical lens manufacturing company used the KT-300 model to successfully achieve high-precision optical coating, significantly improving the reflectivity and transmittance of the products.

Semiconductor Manufacturing

The semiconductor industry has extremely high requirements for vacuum conditions. The KT series high-vacuum oil diffusion pumps, with their excellent ultimate vacuum and high pumping speed, provide reliable vacuum support for semiconductor chip manufacturing. A well-known semiconductor company used the KT-600 model to effectively increase the yield of chip manufacturing.

Scientific Research

In the field of scientific research, the KT series high-vacuum oil diffusion pumps are widely used in physical experiments and material research. For example, in a university's material laboratory, the KT-200 model provided a stable high-vacuum environment for the synthesis of high-temperature superconducting materials, helping researchers achieve significant breakthroughs.

Frequently Asked Questions

1、What is the ultimate vacuum of the KT series high-vacuum oil diffusion pumps?

The ultimate vacuum of the KT series high-vacuum oil diffusion pumps can reach ≤5×10⁻⁵ Pa, meeting the needs of high and ultra-high vacuum environments.

2、What are the advantages of the KT series pumps compared to traditional K series pumps?

The KT series pumps feature a convex chamber design, offering a 30% higher pumping speed compared to traditional K series pumps, with more efficient and stable operation.

3、What is the cooling water consumption of the KT series pumps?

The cooling water consumption of different KT series pumps varies, ranging from 140 L/h to 1200 L/h. Specific values can be found in the technical specifications table.

4、Are the KT series pumps suitable for long-term continuous operation?

Yes, the KT series pumps are designed for long-term stable operation and are suitable for continuous use in industrial production and scientific research.

5、What types of pump oil are recommended for the KT series pumps?

The KT series pumps recommend the use of KS-3 or 275# silicone oil, which have good chemical and thermal stability.

6、What is the power supply voltage for the KT series pumps?

The power supply voltage for the KT series pumps varies by model, with some models using 220V and others using 380V.

7、What is the pumping speed range of the KT series pumps?

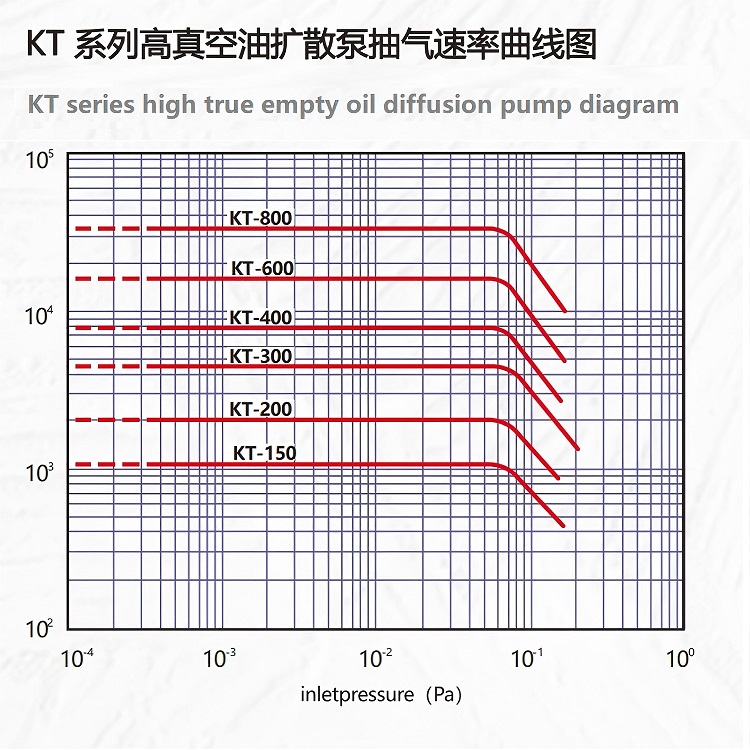

The pumping speed range of the KT series pumps is from ≥1100 L/s to ≥24000 L/s, meeting the vacuum needs of different scales.

8、What are the dimensions and weight of the KT series pumps?

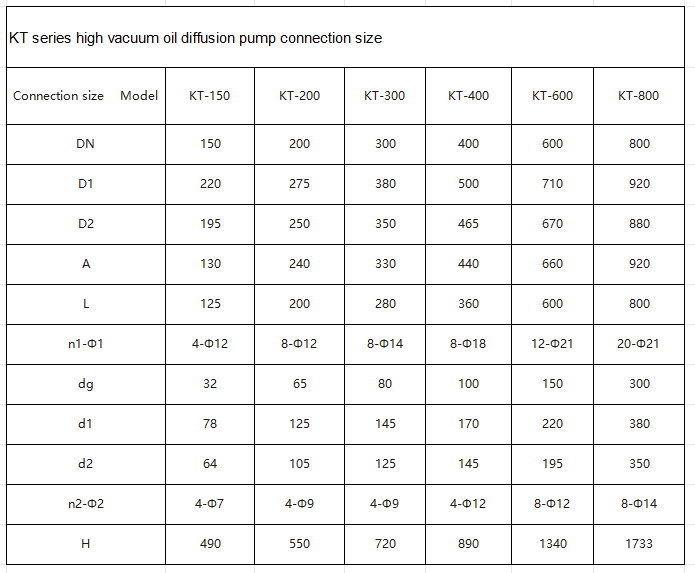

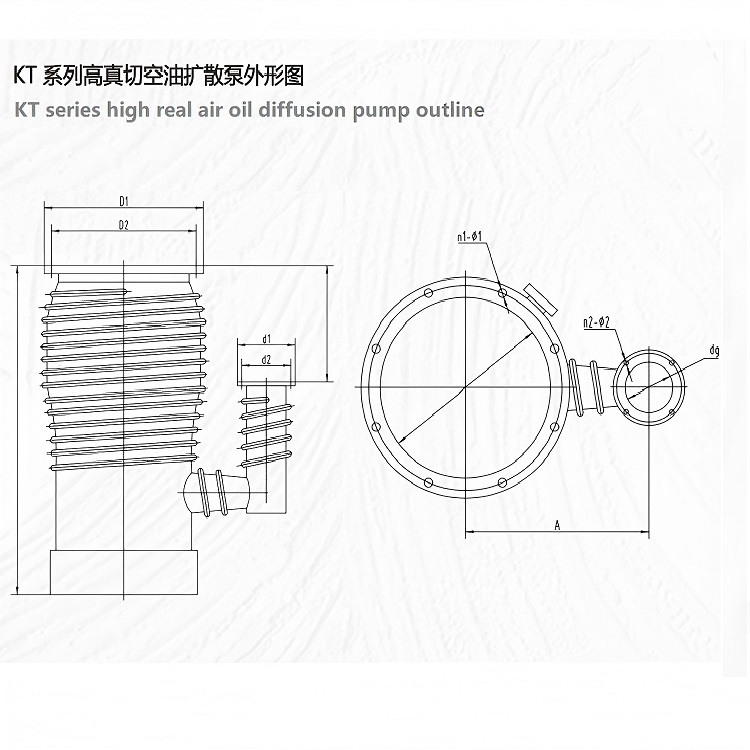

The dimensions and weight of the KT series pumps vary by model, from the small KT-150 to the large KT-800. Specific parameters can be found in the technical specifications table.

9、What are the pre-pump speed requirements for the KT series pumps?

To ensure the efficient operation of the KT series pumps, the recommended pre-pump speed ranges from 8 L/s to 300 L/s. Specific values can be found in the technical specifications table.

10、What fields are the KT series pumps applicable to?

The KT series high-vacuum oil diffusion pumps are widely used in scientific research, semiconductor manufacturing, vacuum coating, material research, and other fields, meeting the high-vacuum needs of various industries.

Conclusion

With their outstanding performance and efficient, stable operation, the KT series high-vacuum oil diffusion pumps have become the ideal choice for obtaining high and ultra-high vacuum conditions. Whether in scientific research, semiconductor manufacturing, or vacuum coating, the KT series pumps can provide reliable vacuum solutions. If you are interested in the KT series high-vacuum oil diffusion pumps or have any questions, please feel free to contact us. We will provide you with professional technical support and services.
