XKC series high vacuum oil diffusion pump, designed for achieving ultra-high vacuum levels (1.3×10⁻⁵ Pa), ideal for vacuum heat treatment, brazing, and thin-film coating applications.

Long-Term Operating Features:

Engineered for durability, the XKC series high vacuum oil diffusion pump delivers consistent performance over extended periods.

Its robust construction ensures resistance to wear and tear, making it a reliable choice for long-term industrial use.

The built-in water-cooled baffle and low oil backstreaming rate minimize maintenance requirements and operational downtime.

Long-Term Operating Features:

Engineered for durability, the XKC series high vacuum oil diffusion pump delivers consistent performance over extended periods.

Its robust construction ensures resistance to wear and tear, making it a reliable choice for long-term industrial use.

The built-in water-cooled baffle and low oil backstreaming rate minimize maintenance requirements and operational downtime.

XKC Series High Vacuum Oil Diffusion Pump for Industrial Vacuum Applications

The XKC Series High Vacuum Oil Diffusion Pump is designed to deliver excellent performance in high vacuum environments, specifically tailored for vacuum heat treatment, brazing, and vacuum silver film deposition. Known for their wide operating range, these pumps efficiently achieve high vacuum levels down to 1.3×10⁻⁵ Pa, making them ideal for critical industrial applications.

Key Features of the XKC Series High Vacuum Oil Diffusion Pump

Superior Vacuum Performance

The XKC High Vacuum Oil Diffusion Pump achieves extremely low pressures, delivering vacuum down to 1.3×10⁻⁵ Pa, ensuring reliable and consistent vacuum conditions essential for precision processes.

Wide Operational Range

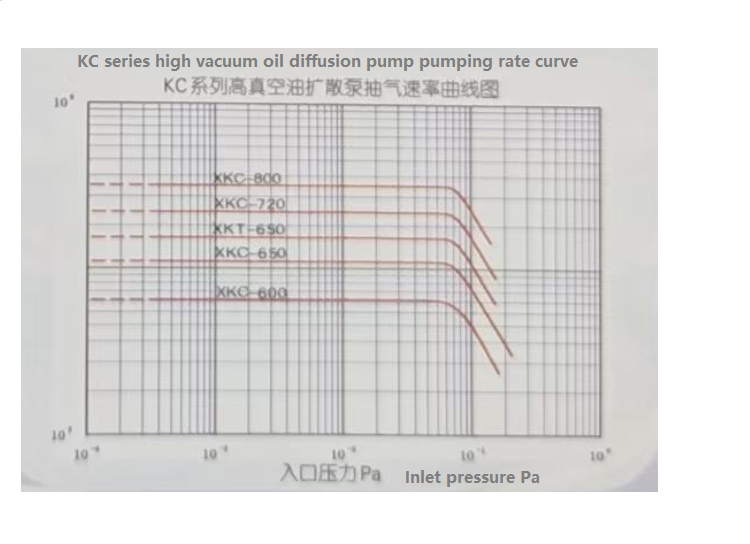

With a broad working pressure range, the pump maintains significant pumping speeds even at extremely low pressures, offering flexibility and stability during demanding vacuum operations.

Low Oil Backstreaming Rate

XKC Series pumps feature exceptionally low oil backstreaming rates of less than 5×10⁻⁵ mg/cm²·min, protecting sensitive equipment and ensuring the cleanliness of vacuum chambers.

Efficient Five-Stage Pump Core

Engineered with a five-stage pump core, the XKC series guarantees rapid evacuation and improved pumping efficiency, shortening process times and enhancing productivity.

Built-In Water-Cooled Oil Baffle

An internal water-cooled oil baffle effectively reduces oil vapor contamination, ensuring high-quality vacuum environments ideal for semiconductor and metallurgical processes.

Easy Oil Level Monitoring

Equipped with a standard oil level sight glass, operators can easily monitor and maintain optimal oil levels, reducing downtime and enhancing pump longevity.

Frequently Asked Questions (FAQ)

What makes the XKC Series High Vacuum Oil Diffusion Pump ideal for high vacuum applications?

The XKC Series is designed to achieve very low ultimate pressures and maintain high pumping speeds across its operating range, making it perfect for demanding high-vacuum environments.

How does the low oil backstreaming rate benefit my application?

A low backstreaming rate prevents contamination in sensitive vacuum processes, ensuring cleaner environments and protecting valuable equipment.

Can I easily monitor oil levels in the XKC Series pump?

Yes, the built-in standard sight glass allows for convenient oil level monitoring, ensuring easy maintenance.

Which oil types are recommended for the XKC High Vacuum Diffusion Pumps?

We recommend KS-3 diffusion pump oil or 275# silicone oil for optimal performance and pump longevity.

What industries commonly use the XKC High Vacuum Oil Diffusion Pump?

It is widely used in vacuum heat treatment, vacuum brazing, semiconductor manufacturing, and advanced thin-film deposition processes.

Is the XKC Series Oil Diffusion Pump energy-efficient?

Yes, the optimized heating design of the XKC series offers efficient energy utilization, reducing overall operational costs.

What is the expected maintenance interval for the XKC High Vacuum Diffusion Pump?

Regular maintenance intervals typically range between 1-3 years, depending on operating conditions and application specifics.

How quickly can the XKC diffusion pump reach operational vacuum levels?

With its five-stage core design, the XKC pump achieves operational vacuum rapidly, significantly improving production efficiency.

What is the recommended foreline pump for use with the XKC diffusion pump?

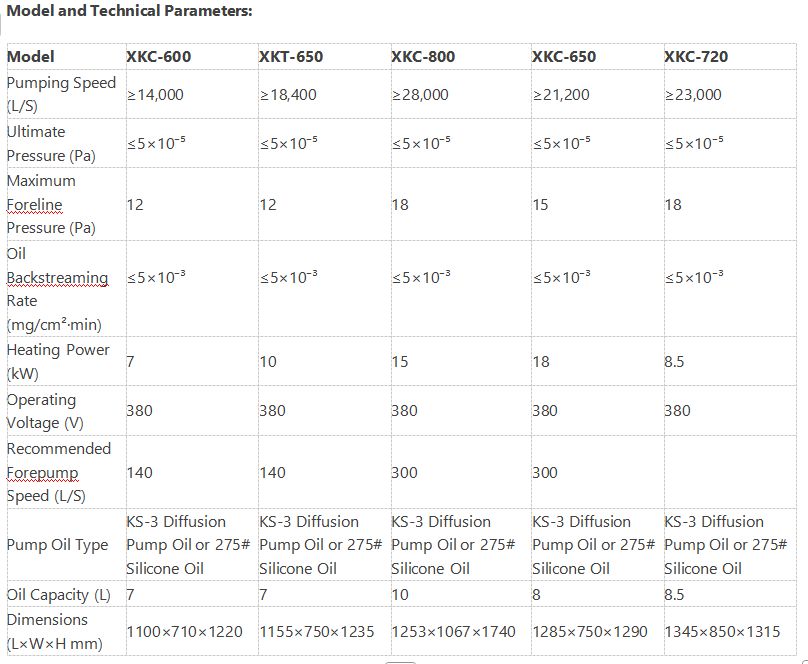

Recommended forepump speeds vary from 140 L/S to 300 L/S depending on the specific XKC pump model in use.

Are customization options available for different vacuum connection standards?

Yes, the XKC Series is adaptable and can be customized according to various industrial vacuum connection standards upon request.

Explore the unmatched capabilities of the XKC Series High Vacuum Oil Diffusion Pump, your trusted solution for advanced vacuum technology.

For more information or inquiries, contact our vacuum technology experts today.
