High Performance Helium Compressor for Cryogenic Vacuum Pumps and Refrigerators

This high-performance helium compressor serves as the critical power unit for cryogenic vacuum pumps and refrigerators. Engineered for stability and reliability, it delivers 99.999% pure helium with precise pressure control. Featuring an efficient water-cooling system, multi-layer safety protections, and a long 26,000-hour maintenance cycle, it is a versatile, industrial-grade solution compatible with various cryogenic systems, including direct replacements for C30VRT and 9600 series compressors.

Inquire Now

Product Details

This high-performance Helium Compressor serves as the essential drive unit for any advanced cryogenic vacuum pump, cryocooler, or other refrigeration units. It is engineered to deliver high-purity helium gas with exceptional stability, efficient cooling, and comprehensive safety protections. As a reliable power source, it is widely utilized in semiconductor manufacturing, aerospace simulation, and medical imaging systems where ultra-low temperature environments are critical.

Core Features

High Purity Helium Output: Ensures helium purity ≥99.999%, eliminating impurity contamination and guaranteeing the efficient operation of the cryogenic vacuum pump.
Efficient Water Cooling: Utilizes an advanced water-cooling system to rapidly dissipate compression heat, ensuring stable performance even under high-load conditions.
Multiple Safety Protections: Equipped with integrated overheat and pressure protection mechanisms that automatically trigger during abnormal conditions to safeguard the entire system.

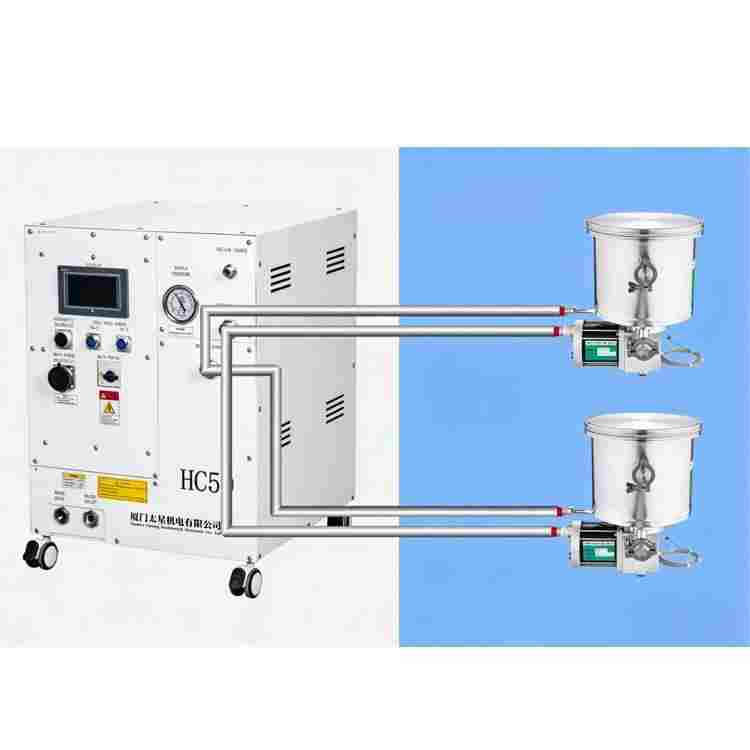

Flexible Drive Adaptation: Capable of driving various sizes of cryogenic vacuum pump units and supports the replacement of C30VRT/9600 compressors.
Stable Pressure Output: Maintains a static pressure of 1.45±0.05MPa, providing a consistent cooling capacity for low-temperature equipment.
Long Maintenance Cycle: Features a maintenance interval of up to 26,000 hours, significantly reducing operational costs and downtime.

Technical Specifications

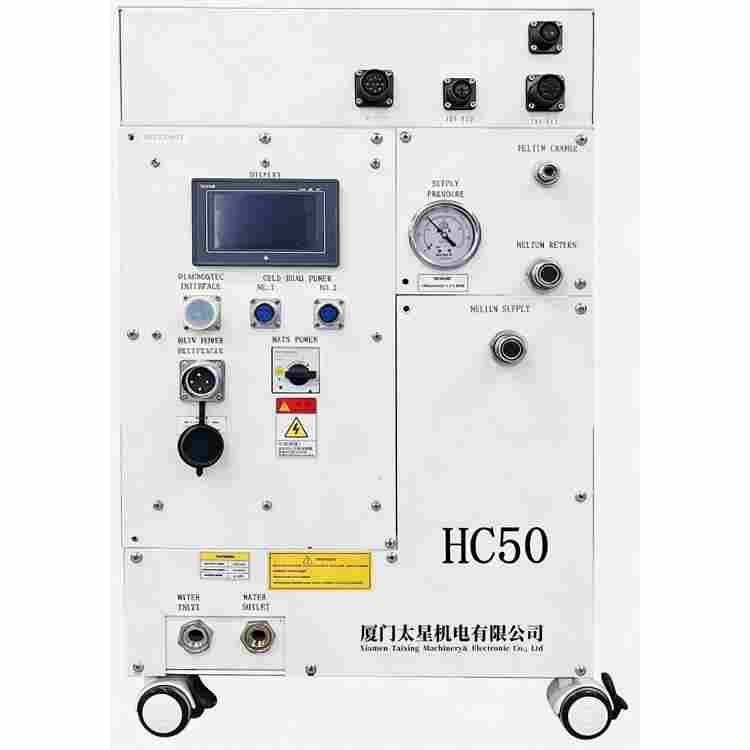

Model	HC50	HC50-W	HC40	HC40-W
Power Supply	AC 380V±10% 50Hz	AC 380V±10% 50Hz	AC 200V±10% 50Hz	AC 200V±10% 50Hz
Output Voltage (Cold Head)	3-Phase 200V±10%	2-Phase 150/150/200V±10%	3-Phase 200V±10%	2-Phase 150/150/200V±10%
Function	Standard Use	Replace 9600/8200	Replace C30VRT	Replace 9600/8200
Cooling Method	Water-Cooled
Static Pressure	1.45±0.05MPa
Protection Type	Overheat Protection, Pressure Protection
Ambient Temp	Operating: 10~35℃; Storage: -10~55℃
Maintenance Cycle	26,000 Hours
Helium Purity	≥99.999%
Water Flow	5~18L/min (20℃)
Power Consumption	Cool-down: 6kW; Stable: 5.8kW
Weight	115KG	125KG	115KG	125KG

Application Fields

Semiconductor Processing: Provides essential helium drive for evaporation, sputtering, and ion implantation vacuum systems.
Aerospace Industry: Powers the cryogenic vacuum pump in space simulation chambers to ensure precise environmental testing.
Medical Equipment: Supports medical MRI and superconducting devices, maintaining the necessary cooling for detection accuracy.
Scientific Research: Ideal for low-temperature physics experiments and quantum communication research requiring stable ultra-low temperatures.
Industrial Vacuum Systems: Acts as the core driver for various cryogenic refrigerators and pumps across multiple industrial scales.

Why Choose Our Helium Compressor?

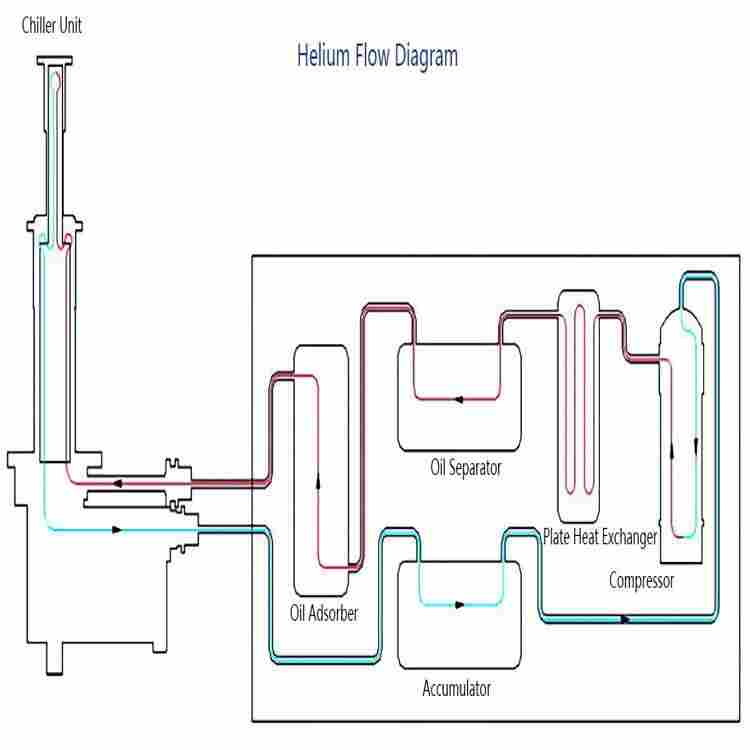

Our helium compressor is an industrial-grade drive unit specifically designed for ultra-low temperature vacuum systems. By utilizing closed-cycle helium compression technology, it provides a continuous and stable supply of high-pressure helium to the cryogenic vacuum pump. The integration of a high-efficiency water-cooling system and multiple safety protocols ensures the equipment remains reliable even in complex operating environments. With its ability to adapt to different pump sizes and its compatibility with major brands, it stands as a versatile and cost-effective solution for high-end vacuum applications.

Frequently Asked Questions

1. What is the primary purpose of this compressor?

It acts as the power unit for cryogenic pumps and refrigerators, providing the high-purity helium gas needed to generate ultra-low temperatures.

2. Why is ≥99.999% helium purity important?

High purity prevents internal contamination of the cryogenic equipment, ensuring maximum cooling efficiency and extending the lifespan of the system.

3. Can it replace other compressor brands?

Yes, specific models like the HC50-W and HC40-W are designed to replace C30VRT, 9600, and 8200 series compressors seamlessly.

4. How does the water-cooling benefit the system?

Water cooling is more efficient than air cooling at removing heat from the compression process, allowing the unit to run continuously at peak performance without overheating.

5. What is the maintenance requirement?

Thanks to high-quality components and rigorous testing, the unit only requires major maintenance every 26,000 hours of operation.

Conclusion: This Helium Compressor is Suitable for semiconductor, aerospace, and medical industries requiring ultra-low temperature environments. The core advantage is its high-purity helium output (≥99.999%), 26,000-hour long maintenance cycle, and flexible compatibility with various cryogenic systems.
