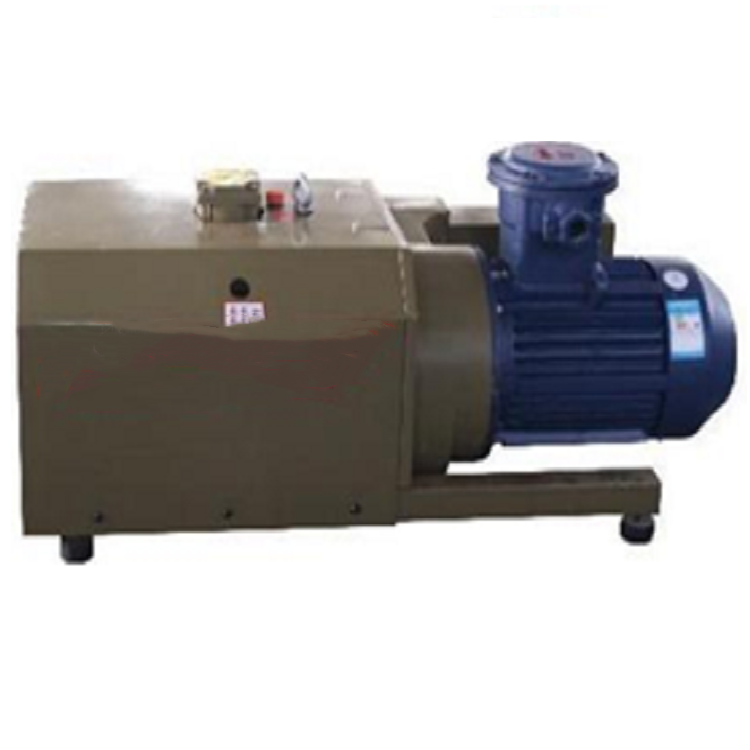

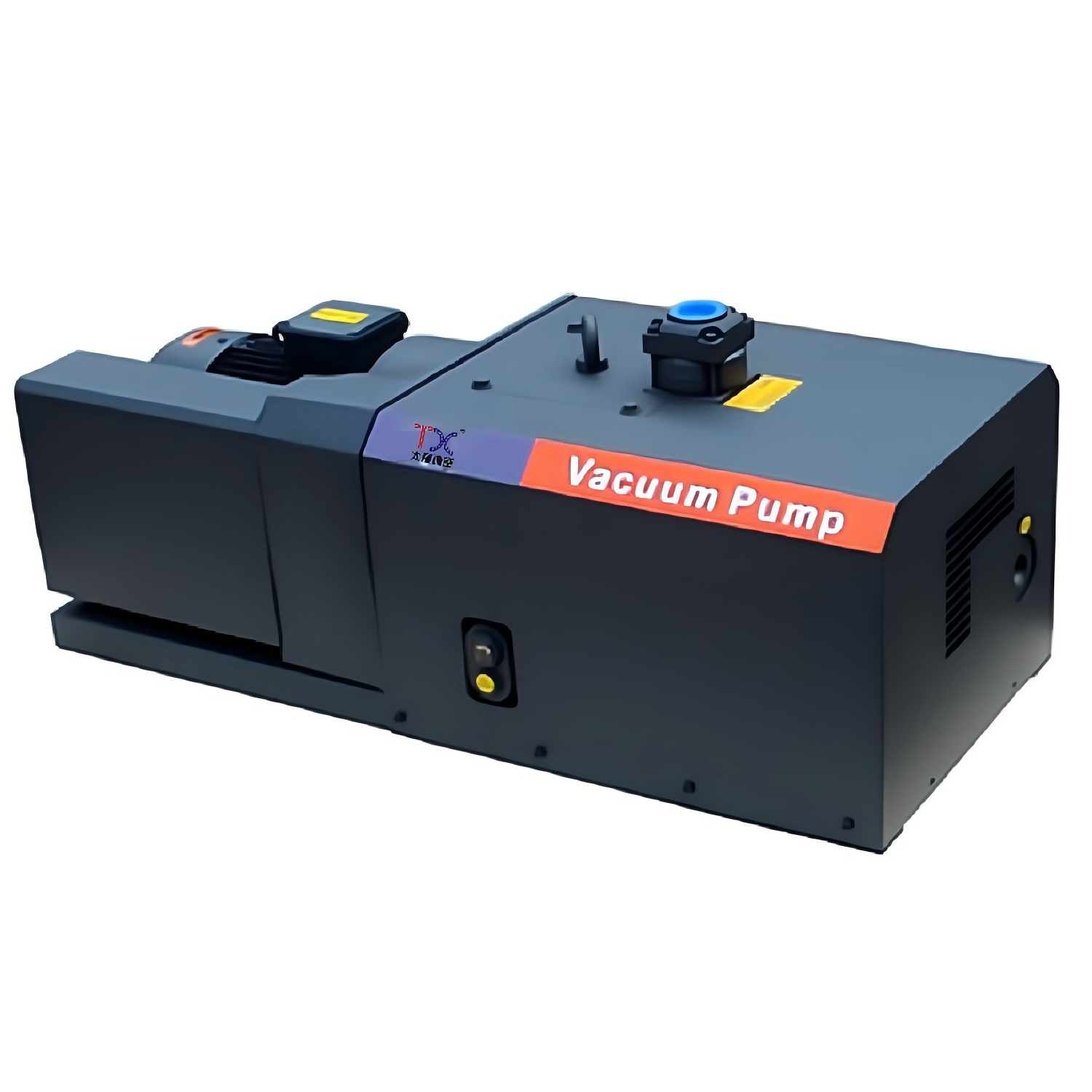

Claw Vacuum Pump High-Efficiency, Oil-Free Vacuum Solution for Industrial Applications

This image is optimized for keywords such as "TaiXing TXC Series vacuum pump" and "dry-running claw vacuum pump,"  targeting industrial users seeking energy-efficient,  contact-free vacuum solutions. Recommended Alt text includes "TaiXing TXC Series dry-running claw vacuum pump,  efficient contact-free vacuum and compressed air generation,"  to enhance search relevance for energy-saving and high-performance industrial applications.

Core Design Features

1. Claw Rotor Technology

   • Two claw-shaped rotors rotate in opposite directions within the housing, enabling efficient suction, compression, and discharge of air or gas.
   • Rotors operate without contact with each other or the cylinder, ensuring minimal wear and extended lifespan.

2. Tight Clearances

   • Optimized rotor-to-housing clearances enhance the internal seal, guaranteeing consistently high pumping speeds and reliable performance.

3. Synchronisation Gearbox

   • Ensures precise synchronization of the claw rotors for smooth, vibration-free operation.

4. Direct-Drive Motor

   • Equipped with a flange-mounted asynchronous motor, efficiency class IE2, for energy-saving performance.
   • Fully compatible with frequency-controlled drives for variable speed operation.

Advantages

• Oil-Free and Contact-Free Operation

  • No lubrication required in the pumping chamber, ensuring a contamination-free vacuum process.
  • Low maintenance and extended service intervals due to minimal mechanical wear.

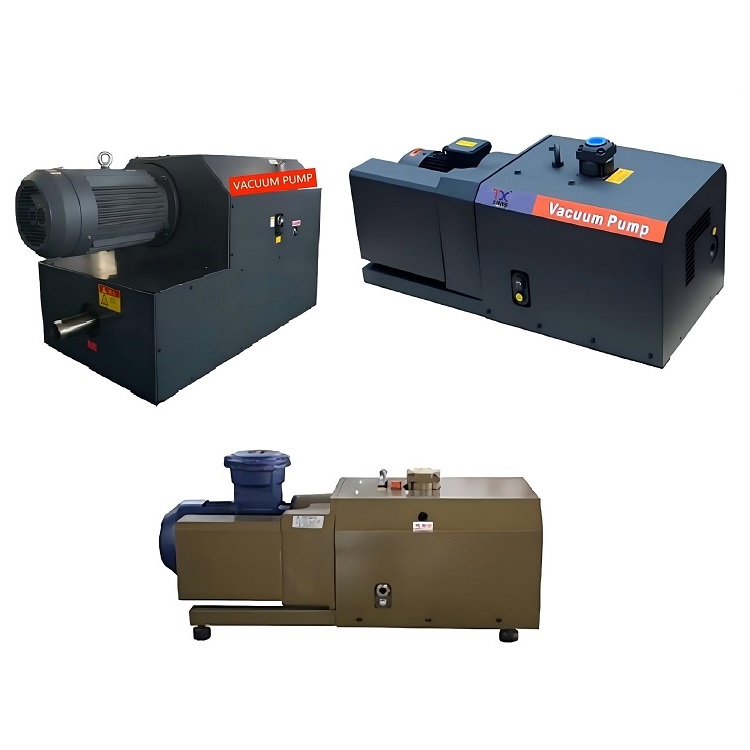

• Wide Range of Sizes and Customization

  • Available in multiple sizes to suit varying vacuum requirements.
  • Specialized variants for specific needs, including:
    • Dust and gas explosion protection
    • Handling high steam contents
    • Gas-tight applications
    • Increased oxygen content compatibility

• Energy Efficiency

  • Direct-drive motor with IE2 efficiency rating minimizes energy consumption and reduces operational costs.

Applications

• Packaging Industry: Vacuum packaging and material handling in clean environments.
• Chemical and Pharmaceutical Processes: Ideal for solvent recovery, vacuum distillation, and sensitive chemical handling.
• Food Processing: Freeze drying, vacuum forming, and packaging.
• Environmental Engineering: Suitable for wastewater treatment and biogas applications.
• Special Applications: Explosion-proof and steam-resistant variants for hazardous or demanding environments.

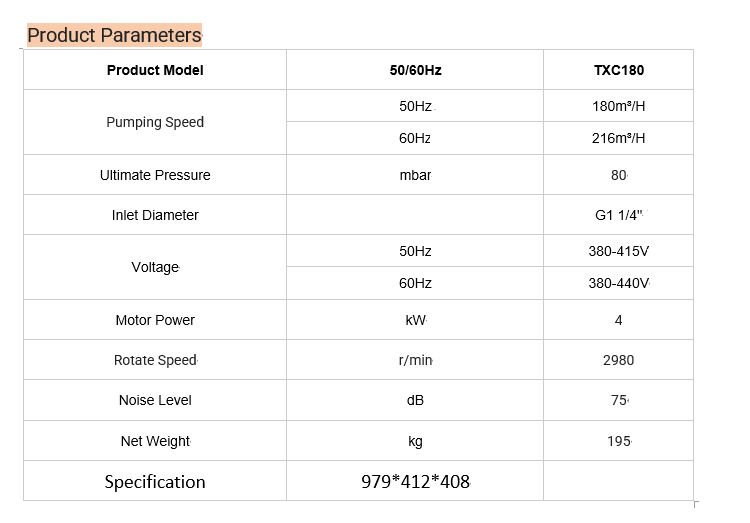

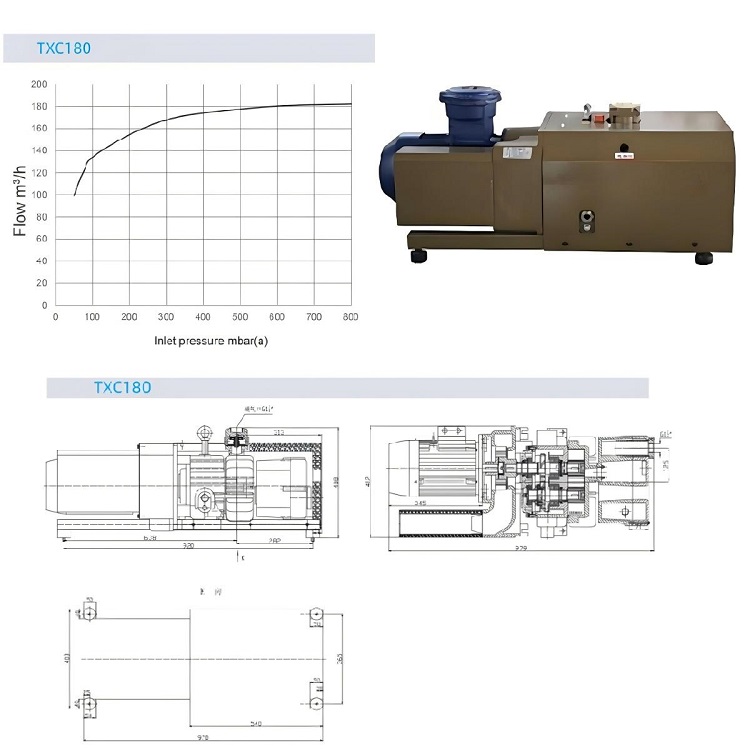

Technical Specifications

• Technology: Claw Rotor Mechanism
• Motor Efficiency: IE2 Direct-Drive Motor
• Operation: Frequency-Controlled Drive Compatibility
• Maintenance: Low-Wear Design for Minimal Maintenance
•
•
•
