360m3/h Oil Free Dry Claw Vacuum Pump Air Cooling for maintenance free

Industrial dry single-stage claw vacuum pump designed for efficient, oil-free operation. Ideal for applications requiring clean, reliable vacuum generation, with low maintenance and high performance in moisture-sensitive environments.

Model NO:TXC360

Pumping Speed:360m3/H

Ultimate Pressure:97mbar

Inlet Diameter :G2′′

Motor Power:7.5kw

Noise Level: 70KB

Net Weight:265kg

Brand:Taixing

Transport Package :Carton with Pallet

Specification:1209*510*450

Origin：FUJIAN China

HS Code:8414100090

Production Capacity :50/ Month

Production Capacity :50/ Month

360m3/h oil-free claw vacuum pump (TXC360)

Typical applications:

SMT, 3C, automation, printing integrated systems, petrochemical, pharmaceutical, materials, food processing, aerospace, electronics, semiconductors, medical technology, plastics processing, nuclear research, central vacuum systems, etc..

360m3/h single-stage oil-free claw vacuum pump Air Cooling / Water Cooling Use for

Product Description

With claw vacuum pumps, two claw-shaped rotors turn in opposite direction inside the housing. Due to the shape of these claw rotors, the air or gas is sucked in, compressed and discharged. The claw rotors do not come into contact either with each other nor with the cylinder in which they are rotating. Tight clearances between the claw rotors and the housing optimise the internal seal and guarantee a consistently high pumping speed. A synchronisation gearbox ensures exact synchronisation of the claw rotors.
Claw vacuum pumps are driven by a directly flange-mounted asynchronous motor, with an efficiency class IE2.  Claw vacuum pumps are ideally suited to use with frequency-controlled drives. Claw vacuum pumps are available in a wide range of sizes.
There are also variants for special applications such as dust and gas explosion protection, high steam contents, gas tightness and increased oxygen contents.

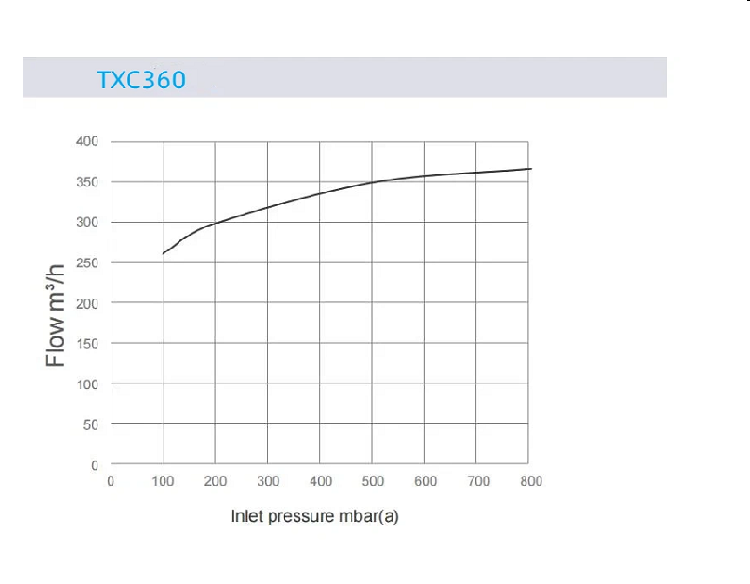

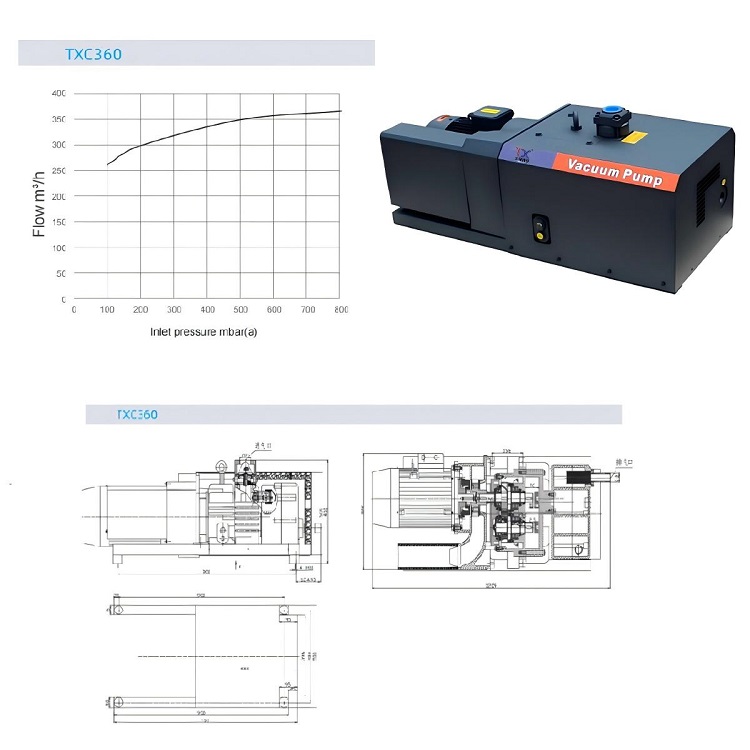

 Product Parameters

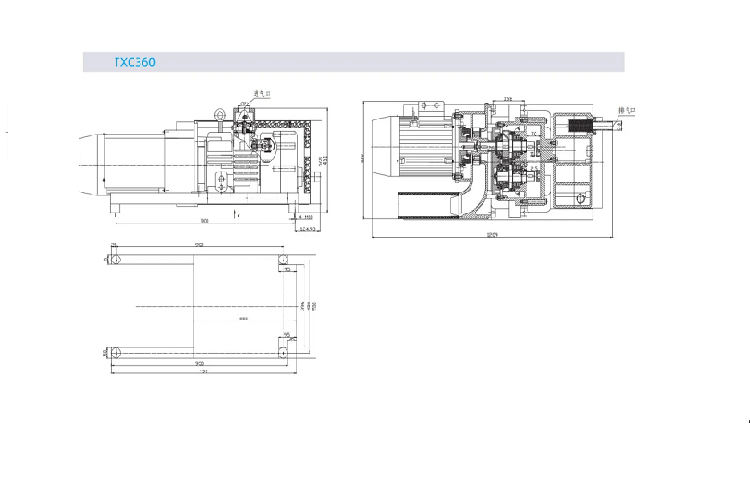

Structural diagram

diagram
