Description:

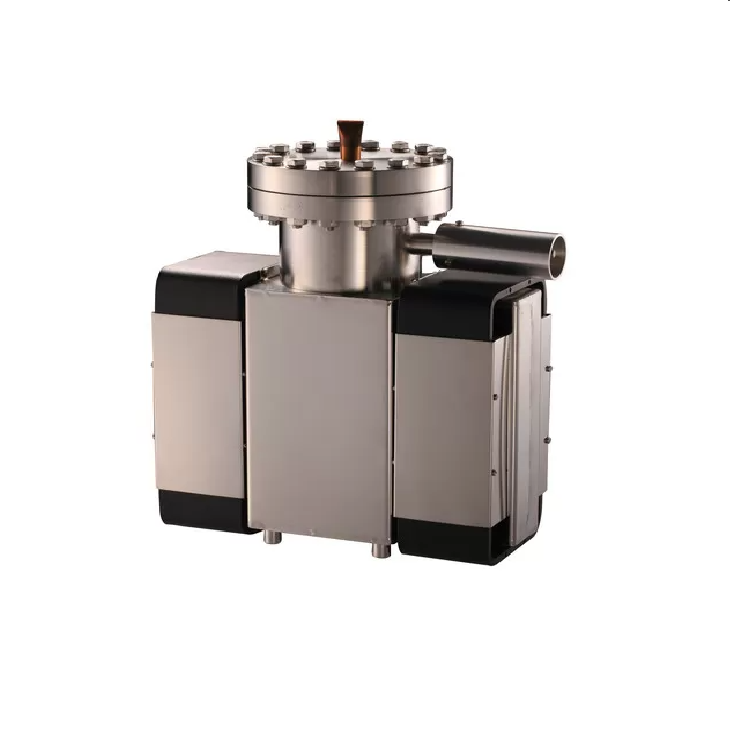

The KYKY 2L-50 Sputter Ion Pump delivers clean, ultra-high vacuum with a +7KV voltage, 65L/s air pumping speed, and 0.6L/s argon. Equipped with a DN100CF flange, this oil-less vacuum pump is ideal for scientific research and advanced technological applications requiring zero vibration and noise.
The 2L - 50 ion vacuum pump of the KYKY brand is a device for obtaining clean ultra-high vacuum and serves as the main pump of the oil-free ultra-high vacuum unit. It operates in a closed system and does not require a continuously operating backup pump. Its flange specification is CF100, the pumping speed for air can reach 65L/s, and for argon it is 0.6L/s. The ultimate pressure is 7×10⁻⁸ Pa, and the working voltage is +7KV. The anode of the pump is made of stainless steel barrel material, and the cathode is made of titanium plate. Based on the Penning discharge principle, gas ionization is achieved under the joint action of magnetic field and electric field, thus realizing the pumping function.
- High vacuum degree, which can meet the application scenarios with strict requirements for ultra-high vacuum environment.
- Zero vibration, ensuring a smooth operation process without causing interference to surrounding equipment or experiments due to vibration.
- Zero noise, generating no noise during operation and creating a quiet working environment.
- Cleanliness, ensuring the purity of the created vacuum environment, which is beneficial to relevant experiments and production operations.
- Convenient to operate, easy to use and maintain on a daily basis.
- It is applied in the field of high-energy particle accelerators, providing the required ultra-high vacuum environment for particle acceleration and other related experiments.
- It plays a role in controlled thermonuclear fusion devices, facilitating relevant scientific research exploration and experiment conduction.
- It is used in the production and research of electrovacuum devices to ensure the vacuum conditions of the production environment.
- It serves the R&D and manufacturing process of semiconductor materials to meet their requirements for a high-purity vacuum environment.
- It provides a suitable vacuum environment for electron microscopes to ensure accurate imaging and observation.
-
- It is used in mass spectrometers to help improve the detection accuracy and performance of the instruments.
| Item |
Parameter |
| Model |
2L - 50 |
| Flange |
DN100CF |
| Pumping Speed (Air) (L/s) |
65 |
| Pumping Speed (Ar) (L/s) |
0.6 |
| Startup Pressure (Pa) |
≤5×10⁻⁴ |
| Ultimate Pressure (Pa) |
7×10⁻⁸ |
| Baking Temperature (℃) |
<200 (With Magnetic), <300 (Without Magnetic) |
| Working Voltage (KV) |
7 |
| Electrode Unit |
2 |
| Dimension (mm) |
90×90 (4 - M6) |
| Length × Width × Height (mm) |
290×120×299 |
| Weight (kg) |
22 |
|
starcell ion pump、varian ion pump、sputter ion pump
High-Efficiency +7KV Ion Vacuum Pump | Reliable Manufacturer in China
Our +7KV ion vacuum pump is engineered to deliver superior performance and reliability, featuring zero vibration and impressive pumping speeds of 65L/S for air and 0.6L/S for argon (Ar). Designed and manufactured in China, we provide unparalleled solutions for critical applications in various industries, including semiconductor, aerospace, and scientific research.
Why Choose Our +7KV Ion Vacuum Pump?
1. Unmatched Performance and Reliability
· Zero vibration for stable operations.
· Designed to meet the stringent demands of high-precision applications.
2. High Pumping Speed
· Air pumping speed: 65L/S.
· Argon (Ar) pumping speed: 0.6L/S.
3. Robust Construction
· Built with advanced materials for enhanced durability.
· Optimized for long service life even under demanding conditions.
4. Industry Applications
· Semiconductor manufacturing.
· Aerospace vacuum systems.
· Laboratory and research vacuum environments.
5. Reliable Manufacturer
As a leading vacuum pump manufacturer in China, we combine cutting-edge technology with industry expertise, offering efficient and cost-effective solutions to B2B buyers globally.
Applications of the +7KV Ion Vacuum Pump
Our ion vacuum pump is ideal for industries requiring precision, stability, and reliable vacuum performance. Key application areas include:
· Semiconductor industry: Etching, deposition, and process stability.
· Aerospace industry: Vacuum testing and component manufacturing.
· Scientific research: Laboratories and experiments requiring high-vacuum conditions.
About the +7KV Ion Vacuum Pump Manufacturer (FAQ)
Q1: Why is the +7KV Ion Vacuum Pump ideal for ultra-high vacuum applications?
The +7KV Ion Vacuum Pump achieves an ultimate pressure of 7×10⁻⁸ Pa, providing reliable, clean, and stable vacuum conditions
essential for industries such as semiconductors and mass spectrometry.
Q2: What makes your +7KV Ion Vacuum Pumps unique?
Our +7KV Ion Vacuum Pumps are manufactured with advanced precision technology in China, featuring zero vibration, oil-free
operation, and compatibility with high-temperature processes.
Q3: Can this pump handle high temperatures?
Yes, the pump can withstand baking temperatures of up to 300°C without magnetic components, making it adaptable for a wide range
of high-temperature industrial applications.
Q4: Is the +7KV Ion Vacuum Pump suitable for semiconductor applications?
Absolutely. It delivers ultra-clean environments for precision processes, ensuring the efficiency and reliability required in
semiconductor manufacturing.
Q5: What industries trust the +7KV Ion Vacuum Pump?
Industries such as semiconductors, mass spectrometry, particle accelerators, electron microscopy, and thermonuclear research
depend on our reliable vacuum solutions.
Q6: How does the pump maintain clean and eco-friendly operation?
The oil-free, zero-contamination design ensures sustainable performance while maintaining clean and stable vacuum conditions.
Q7: Do you offer customization options?
Yes, we provide tailored solutions to meet specific industrial requirements, including modifications for unique operational
environments.
Q8: What materials are used in the +7KV Ion Vacuum Pump?
The pump features stainless steel anodes and titanium cathodes, ensuring excellent durability and long-term stability.
Q9: Why is this pump vibration-free?
The design eliminates moving parts during operation, resulting in zero vibration and ensuring optimal performance in precision
applications.
