· Innovative and Durable TC Two-Stage Liquid Ring Vacuum Pumps for Demanding Applications
The image should emphasize the TC series’ integral two-stage impeller, ability to reach vacuum levels as low as 0.8 inHgA (28 mbar abs),
and patented conical porting design. Highlight its suitability for harsh industrial environments and processes in the chemical, petrochemical, and power industries.
|

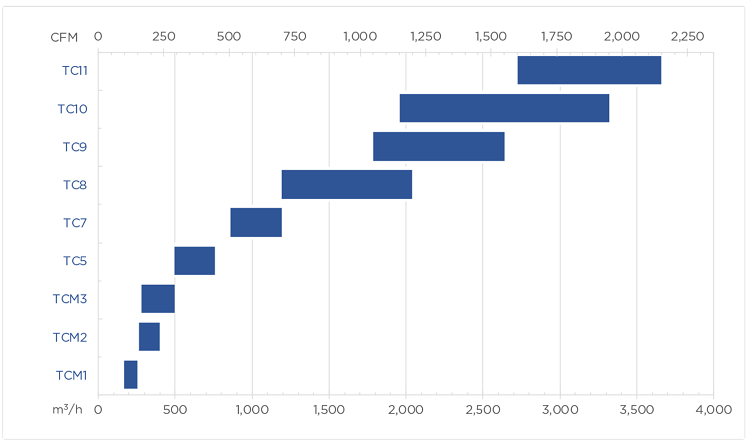

l Suction Flow: 100 to 2,200 ACFM (170 to 3,700 m3/h) l Vacuum range: to 0.8 inHgA (to 30 mbar abs.) l Shaft seal: stuffing box (standard), mechanical seal (single/double ended) or shell as required l Structural materials: cast iron, ductile iron, stainless steel |

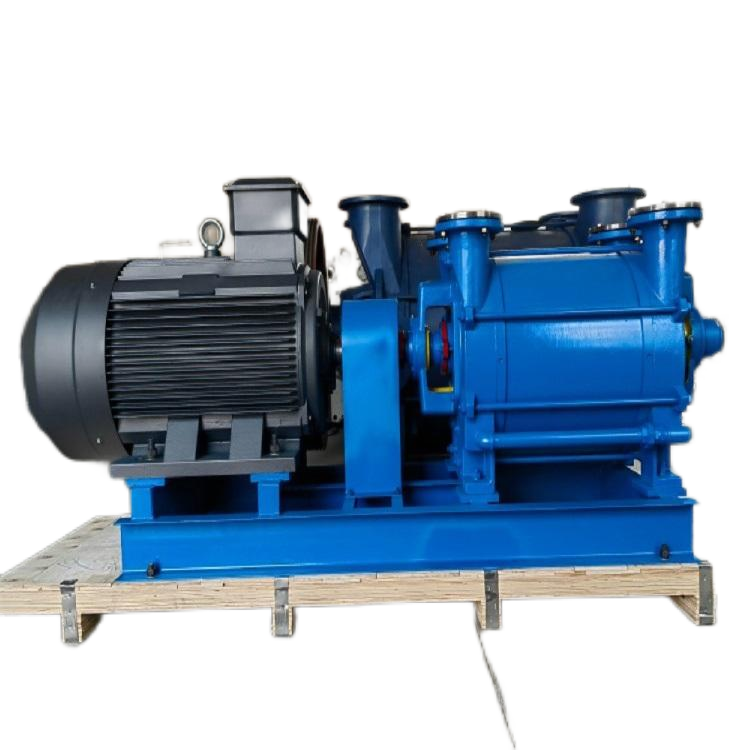

TC Two-Stage Liquid Ring Vacuum Pump – Engineered for Harsh Conditions and High Efficiency
The TC two-stage liquid ring vacuum pump series is built for the rigorous demands of industrial applications. Its patented variable conical porting and two-stage rotor design allow it to handle harsh conditions while achieving vacuum levels as low as 0.8 inHgA (28 mbar abs), making it an ideal solution for condenser exhaust and other challenging duties.
Key Features:
o Deep vacuum capability: Reaches up to 0.8 inHgA (28 mbar abs), approximately 40% lower than single-stage pumps.
o Two-stage impeller: Integral design optimizes vacuum and condensation for efficient vapor recovery or disposal.
o Patented variable conical porting: Minimizes bearing load, enhancing durability and performance across the operating range.
o Gas scavenging feature: Improves capacity at deep vacuum levels by minimizing gas slip.
o High liquid carryover tolerance: Effectively handles processes with significant liquid presence.
o Side discharge: Reduces flooding risk during startup.
o Self-priming design: May eliminate the need for booster pumps in recirculated systems.
Applications:
o Chemical and petrochemical industries: Efficient vapor condensation and recovery.
o Power generation: Reliable performance for condenser exhaust duties.
o Environmental solutions: Gas handling and wastewater treatment.
o General industrial use: Robust for demanding drying, forming, and vapor management tasks.
Advantages:
o Handles harsh conditions with minimal wear and tear.
o Durable design optimized for deep vacuum applications.
o Reduces maintenance and operational costs with self-priming and erosion resistance features.
The image should display the pump in a professional industrial setting, such as a chemical plant or power station, with clear annotations showcasing its two-stage impeller, conical porting, and advanced features.
