Vectra XL Liquid Ring Vacuum Pump High-Performance for Harsh Industrial Applications

Vectra XL Liquid Ring Vacuum Pump High-Performance for Harsh Industrial Applications

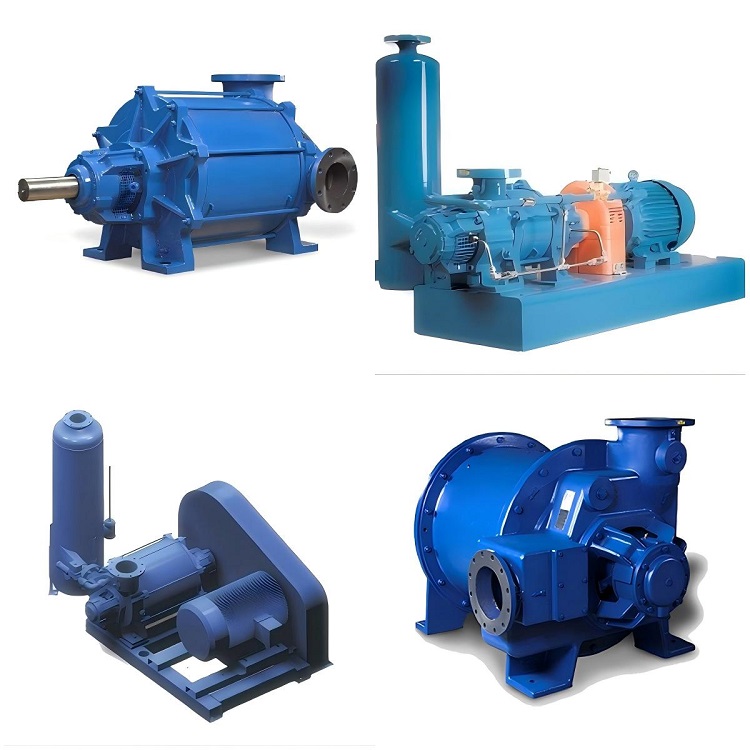

· Robust and Reliable Vectra XL Liquid Ring Vacuum Pump for Industrial DemandsThe image should emphasize the Vectra XL’s medium to high capacity range, its rugged design for nonstop industrial use, and its adaptability to industries such as chemical processing, oil & gas, food & beverage, and paper converting. Showcase its ability to meet specific customer application requirements with unmatched efficiency.

Inquire Now

Product Details

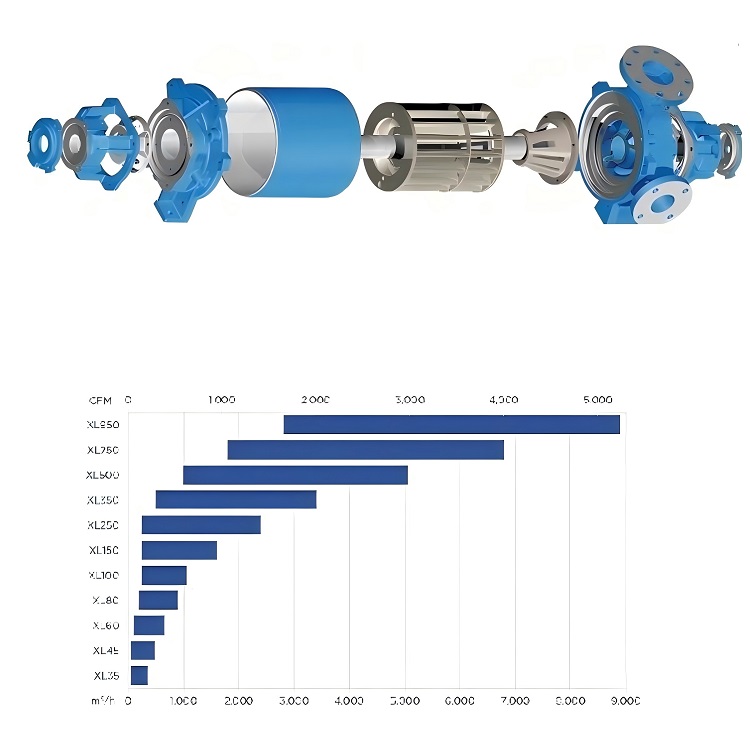

Gas volume 30 to 5,200 ACFM (50 to 8,900 m3 / h)

XL Liquid Ring Vacuum Pump – High-Performance for Harsh Industrial Applications

The liquid ring vacuum pump and compressor series provide better performance with unprecedented production efficiency. Vectra XL Designed to withstand the harsh conditions of the chemical and oil and gas industries, 12 models will have gas volumes of 30 to 5,200 ACFM (50 to 8,900 m3/hr).

型号	长度	宽度	高度	入口	出口
MODEL	LENGTH	WIDTH	HEIGHT	INLET	OUTLET
XL 35	30	13.4	14	3 FLG	3 FLG
XL 35	762	340	356	80 FLG	80 FLG
XL 45	33	13.4	14	3 FLG	2 FLG
XL 45	838	340	356	80 FLG	50 FLG
XL 60	36	17	16	4 FLG	3 FLG
XL 60	914	432	406	100 FLG	80 FLG
XL 80	39	17	16	4 FLG	3 FLG
XL 80	991	432	406	100 FLG	80 FLG
XL 100	42	19	20	4 FLG	4 FLG
XL 100	1067	483	508	100 FLG	100 FLG
XL 130	46	19	20	4 FLG	4 FLG
XL 130	1168	483	508	100 FLG	100 FLG
XL 150	48	21	21	6 FLG	4 FLG
XL 150	1219	533	533	150 FLG	100 FLG
XL 250	55	26	25	6 FLG	6 FLG
XL 250	1397	660	635	150 FLG	150 FLG
XL 350	64	29	31	8 FLG	6 FLG
XL 350	1626	737	787	200 FLG	150 FLG
XL 500	81	39	41	10 FLG	8 FLG
XL 500	2057	991	1041	250 FLG	200 FLG
XL 750	81.5	49	47.3	10 FLG	8 FLG
XL 750	2070	1244	1200	250 FLG	200 FLG
XL 950	89.5	55.4	53.5	12 FLG	10 FLG
XL 950	2273	1407	1360	300 FLG	250 FLG

Key Features:

o Wide capacity range: 195 to 8,900 m³/h (115 to 5,200 ACFM) for diverse applications.

o Robust design: Engineered for continuous operation in harsh industrial environments.

o Application versatility: Customizable solutions tailored to specific customer needs.

o Energy-efficient performance: Optimized to reduce operational costs.

o Low maintenance: Durable construction minimizes downtime and extends service life.

Applications:

o Chemical industries: Vapor recovery, gas separation, and moisture control.

o Oil & gas: Vacuum solutions for refining and extraction processes.

o Food and beverage: Hygienic vacuum systems for poultry processing and packaging.

o Paper converting: Reliable vacuum systems for cutting, forming, and pressing.

o Environmental solutions: Effective for wastewater treatment and vapor recovery.

Advantages:

o Handles demanding and nonstop industrial applications with ease.

o Customizable to meet unique production and efficiency requirements.

o Trusted for reliability and durability across various sectors.

The image should showcase the pump in action within industrial environments such as chemical plants, oil refineries, or food processing facilities. Use visual aids or icons to emphasize its wide capacity range, rugged design, and application flexibility.
