Pumping speed :
21(L/S)( air)Type :
3L-25Ultimate vacuum :
7×10-8Product weight :
8kgTitle ：KYKY 3L - 25 -5KV Triode Sputter Ion Pump, Increasing Inert Gas Pumping Rate
The KYKY 3L-25 Triode Sputter Ion Pump enhances inert gas pumping rate with a DN35CF flange, -5KV voltage, and ultimate pressure of 7×10-8 Pa. Designed for clean, oil-less operation, it is ideal for high-energy particle accelerators, semiconductor manufacturing, and mass spectrometry applications

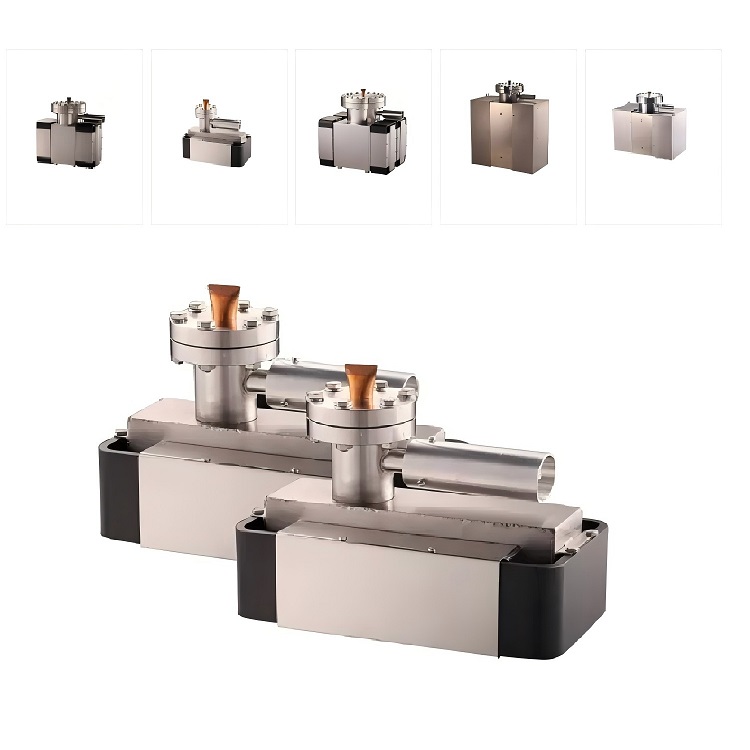

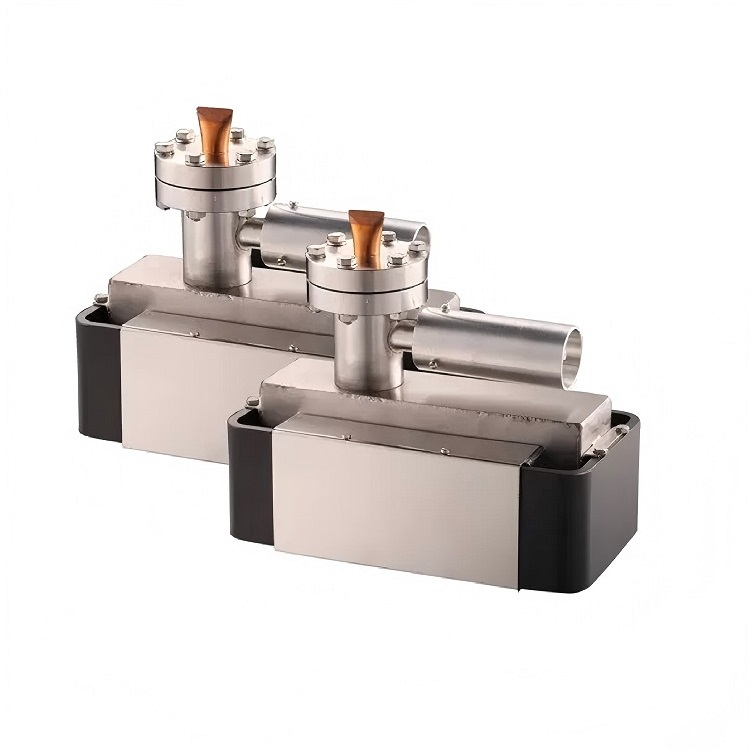

Image Alt Text ：The KYKY brand 3L - 25 model triode sputter ion pump, with a flange of DN35CF, a pumping speed of 21L/s for air and 6L/s for argon, an ultimate pressure of 7×10⁻⁸ Pa, and a working voltage of -5KV. It has advantages such as cleanliness, high vacuum degree, zero noise, zero vibration, and convenient operation. It is suitable for various scientific research and industrial equipment with ultra - high vacuum requirements, such as high - energy particle accelerators.
|
Specifications:
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Image Description ：
This is the KYKY 3L - 25 model -5KV triode sputter ion pump. As the main pump of the oil - free ultra - high vacuum unit, it can obtain clean ultra - high vacuum. Its anode is made of a stainless - steel barrel, and the cathode is a titanium plate. Based on the Penning discharge principle, it ionizes gas under the combined action of the magnetic and electric fields to achieve gas evacuation. This pump is improved to increase the pumping rate of inert gases. Through a specific process, the pumping speed of inert gases is increased. It has advantages such as cleanliness, high vacuum degree, zero noise, zero vibration, and convenient operation, and is widely used in scientific research and industrial fields such as high - energy particle accelerators and controlled thermonuclear reaction devices.
Ten Keywords ：
KYKY, 3L - 25, triode sputter ion pump, -5KV, high vacuum degree, inert gas pumping rate, stainless steel, cleanliness, scientific experimental equipment, industrial equipment
Image Name ：
KYKY_3L - 25_5KV_Triode_Sputter_Ion_Pump
Applications：
It is mainly applied to scientific experimental instruments in fields such as high - energy particle accelerators, controlled thermonuclear reaction devices, electric vacuum devices, semiconductor materials, electron microscopes, and mass spectrometers, as well as other industrial equipment that requires ultra - high vacuum.
The pump achieves an ultimate pressure of 7×10⁻⁸ Pa, offering clean, stable, and contamination-free environments essential for high-precision experiments and processes.
With zero noise, vibration-free operation, and excellent pumping speed, these pumps are perfect for sensitive applications like particle accelerators and mass spectrometers.
No, the ion pump works in a closed system, eliminating the need for a continuous working backing pump.
Industries such as semiconductors, research labs, high-energy physics, and materials science utilize these pumps extensively for their reliability and performance.
Built with high-quality materials, such as stainless steel and titanium, they withstand baking temperatures up to 300℃.
· Comprehensive Range: From starcell ion pumps to varian ion pumps, we provide diverse solutions for your vacuum needs.
· Trusted Supplier in China: With years of expertise, we supply premium products globally.
· Exceptional Support: Our team offers technical assistance and customized solutions to meet your unique requirements.
Partner with a leading Ion Vacuum Pump Manufacturer & Supplier in China for top-quality solutions in ultra-high vacuum applications. Let us help you find the ideal equipment for your specific requirements.
Get in touch with us today!
