diaphragm vacuum pumps
Universal corrosion diaphragm vacuum pump TXCE 860(ultimate vacuum to 1 mbar = 100 Pa)
Universal corrosion diaphragm vacuum pump TXCE 860(ultimate vacuum to 1 mbar = 100 Pa)
Universal corrosion diaphragm vacuum pump TXCE 860(ultimate vacuum to 1 mbar = 100 Pa)
Universal corrosion diaphragm vacuum pump TXCE 860(ultimate vacuum to 1 mbar = 100 Pa)

Universal corrosion diaphragm vacuum pump TXCE 860(ultimate vacuum to 1 mbar = 100 Pa)

Universal corrosion diaphragm vacuum pump TXCE 240 (ultimate vacuum to 1 mbar = 100 Pa)

Product features:

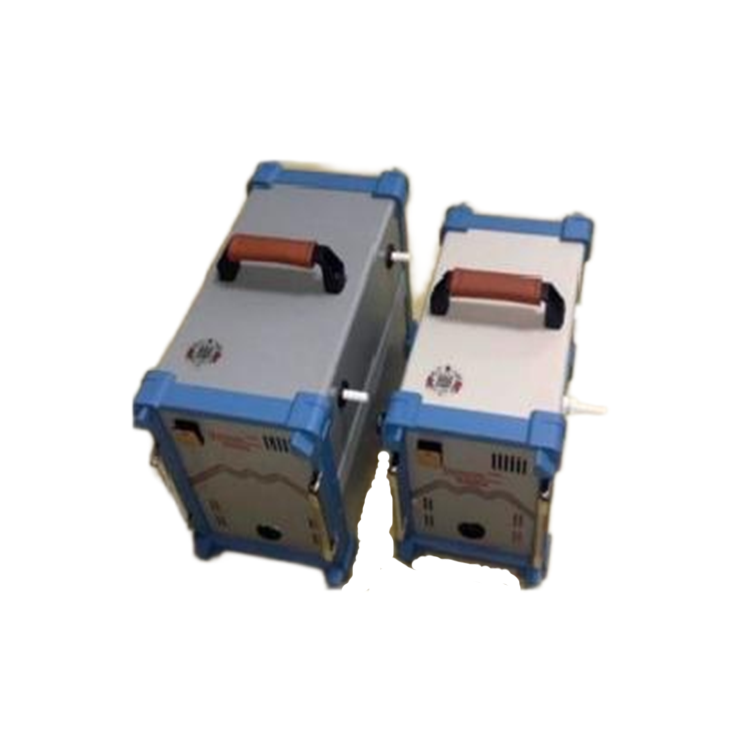

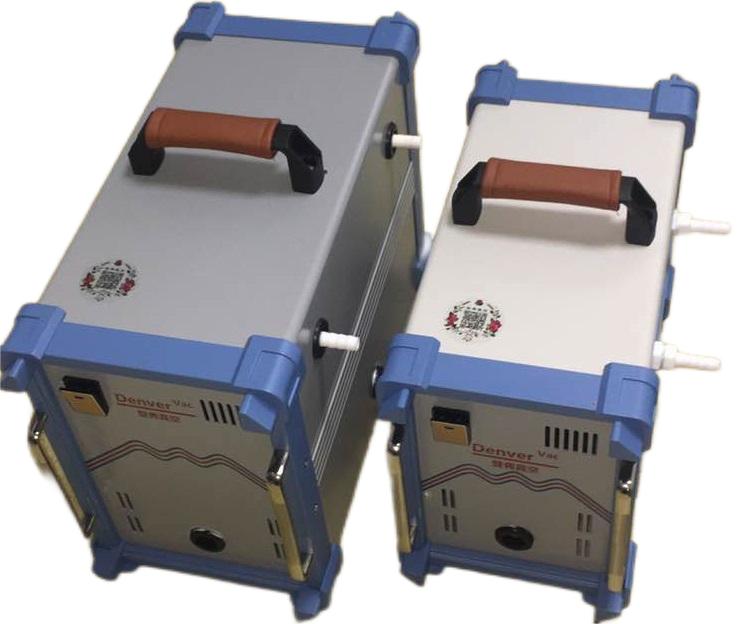

Box-type structure, safe operation, low noise

Dry operation, to ensure no oil pollution, green environmental protection

Durable and suitable for continuous operation

Motor with 4uf capacitor with overheat protection

The safety plug protects the circuit part; The overflow material complies with ATEX II 2G IIB+ H2T3X explosion-proof requirements

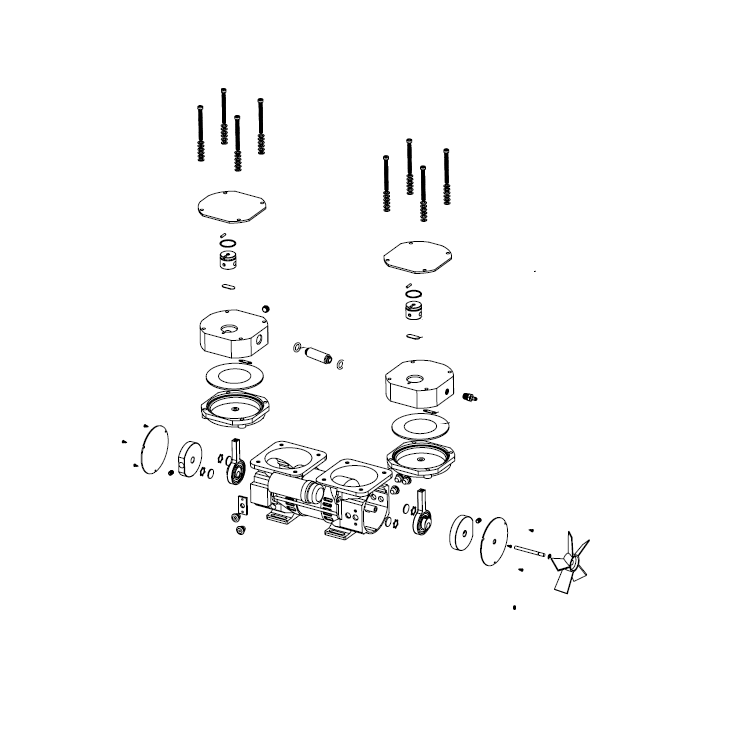

The diaphragm is umbrella-shaped thickened EPDM rubber coated with PTFE, and the gas contact part is PTFE material and PTFE coating, which has very strong chemical corrosion resistance

The selection of low-temperature elevator motor and the internal circulation of multiple ventilation holes and brushless fans in the box structure ensure long-term stable use

Compared with the traditional laboratory circulating pump (limit vacuum 30mbar, pumping speed 10L/min), the performance is significantly improved. Manual vacuum regulating valve, vacuum measuring instrument, etc.

Product parameters:

model

TXCE 822

TXCE 838

TXCE 5025

TXCE 5038

 TXCE 240

TXCE 860

TXCE 275

TXCE 8110

Pump head form

Secondary secondary pump head

two stage

two stage

two stage

three-level

three-level

three-level

three-level

Two pump head

Two pump head

Two pump head

Four pump head

Four pump head

Four pump head

Four pump head

ultimate vacuum

8mbar

8mbar

50mbar

50mbar

2mbar

8mbar

2mbar

8mbar

(800Pa)

(800Pa)

(5000Pa)

(5000Pa)

(200Pa)

(800Pa)

(200Pa)

800Pa)

The suction speed

22 L/min

38L/min

25L/min

38L/min

40L/min

60L/min

75L/min

110L/min

Conventional application

Spinning evaporator

Draw filter, exhaust

Spinning evaporator

Centrifugation concentration

Centrifugation concentration

vacuum drying

vacuum drying

Draw filter, exhaust

Draw filter, exhaust

Acid and alkali resistant corrosion

Membrane size

diameter

diameter

diameter

diameter

diameter

diameter

diameter

diameter

68mm

106mm

68mm

106mm

68mm

68mm

106mm

106mm



100W

130W

100W

130W

205W

205W

265W

265W

(220V)

(220V)

(220V)

(220V)

(220V)

(220V)

(220V)

(220V)

noise

47dB(A)    48dB(A)     47dB(A)     48dB(A)     49dB(A)    49dB(A)     50dB(A)     50dB(A)

weight

9.5 kg

10.5 kg

9.5 kg

10.5 kg

18.5 kg

18.5 kg

19.5 kg

19.5 kg

joggle

NW 8-10mm (inner diameter 8 to 10mm tube)

Size (wide, long and high

320/175/205 mm

380/190/260 mm

320/175/205 mm

380/190/260 mm

380/480/260 mm

380/480/260 mm

380/480/260 mm

380/480/260 mm

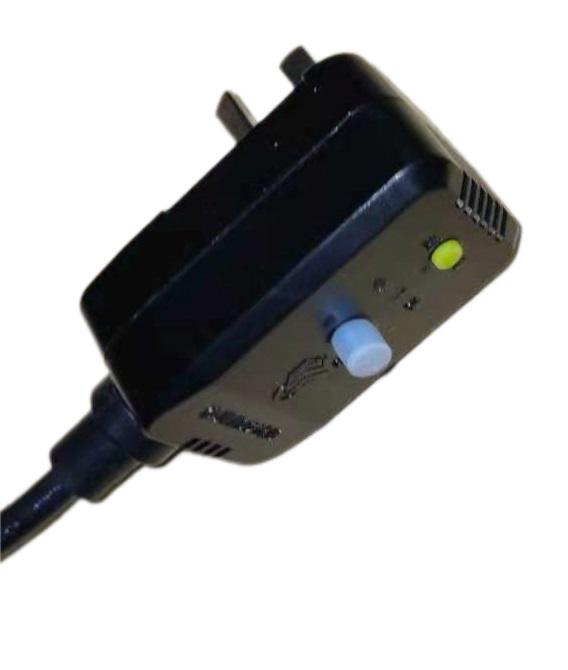

V2.2 version released on 2021.05.01 Upgrade safety power plug, any motor overload, overcurrent, leakage problems, immediately power off within 0.1 seconds; Together with the overheat protection capacitor, the vacuum pump forms a double safety protection.
