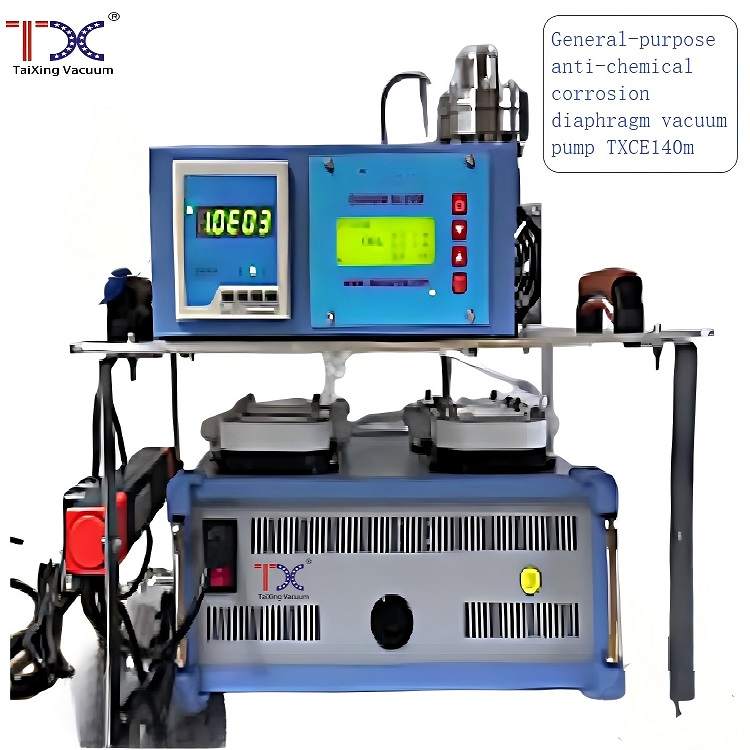

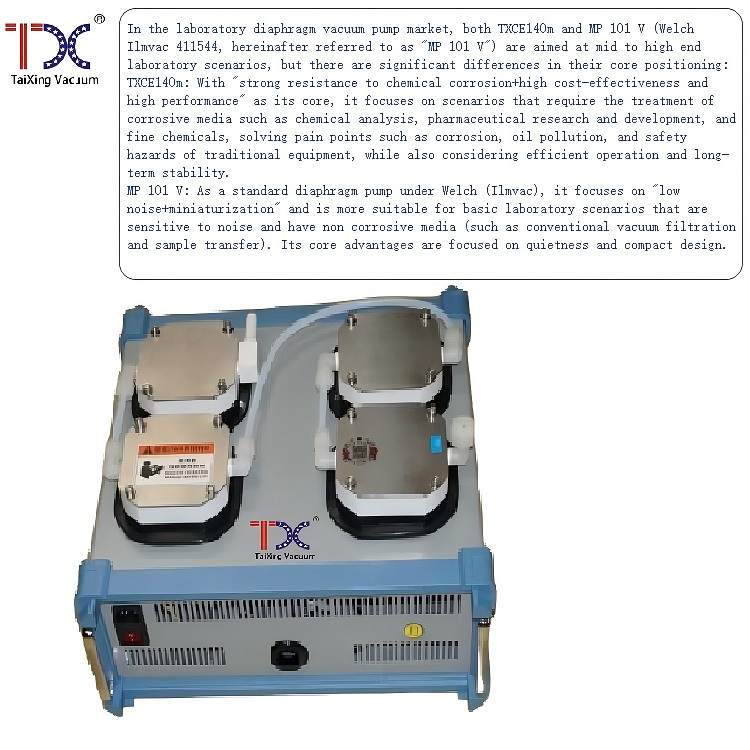

The TXCE140m four-stage diaphragm vacuum pump offers exceptional chemical compatibility with all gas-contact parts made of PTFE materials. Equipped with motor overheating protection and operating at only 51dB noise level, it's ideal for chemical analysis, pharmaceutical synthesis, and other laboratory environments.
|
Parameter |
Specification |
Product Advantage |
|
Pump Type |
4-stage, 4-head |
High vacuum design |
|
Ultimate Vacuum |
1.5mbar/150Pa |
20x better than traditional water pumps |
|
Pumping Speed |
40L/min |
Meets most lab requirements |
|
Diaphragm Size |
Ø106mm |
Thickened EPDM rubber base |
|
Motor Power |
265W(50Hz) |
Energy Class 1 |
|
Noise Level |
51dB(A) |
Quiet lab environment |
|
Weight |
14.8kg±0.5kg |
Portable design |
|
Connection |
NW8-10mm |
Standard lab interface |
|
Dimensions |
420×420×250mm |
Compact bench placement |
Diaphragm: Umbrella-shaped thickened EPDM rubber base with PTFE coating
Contact Parts: All gas-contact components use PTFE materials or coatings
Chemical Compatibility: Resists strong acids, alkalis, organic solvents
Motor Protection: Built-in 90℃ overheating protection capacitor
Cooling Design: Brushless fan internal circulation cooling
Safety Certification: Complies with ATEXⅡ2GⅡB+H2T3X explosion-proof requirements
Integrated Design: Front-mounted plug and switch for easy bench placement
Dry Operation: Completely oil-free, prevents sample contamination
Stable Start: Reliable startup under system vacuum condition
Superior Chemical Protection: Full PTFE protection system for various corrosive gases
High Vacuum Performance: 1.5mbar ultimate vacuum, far exceeding traditional pumps
Quiet Operation: 51dB low noise design maintains quiet lab environment
Safety Assurance: Multiple protection systems ensure long-term stability
Energy Efficient: Oil-free dry operation with 265W low power consumption
|
Specification |
TXCE140m |
Traditional Water Pump |
Improvement |
|
Ultimate Vacuum |
1.5mbar |
30mbar |
20x better |
|
Pumping Speed |
40L/min |
10L/min |
4x faster |
|
Chemical Compatibility |
Full resistance |
Limited |
Significant improvement |
|
Maintenance Cost |
No oil change |
Regular maintenance |
80% reduction |
Safely handles corrosive gases generated in organic synthesis reactions, ensuring operator safety.
Provides stable vacuum source for LC-MS, rotary evaporators, ensuring analytical accuracy.
Delivers oil-free clean vacuum environment for drug synthesis and purification processes.
Q1: Which chemical media is TXCE140m suitable for?
Resists most acids, alkalis, organic solvents including HCl, H₂SO₄, acetone, DCM.
Q2: Does the pump require regular diaphragm replacement?
Normal service life reaches thousands of hours, depending on usage frequency and media.
Q3: How is explosion-proof safety ensured?
ATEX-certified explosion-proof design with internationally compliant materials.
Q4: Maximum continuous operation time?
Designed for 24/7 operation with built-in overheating protection.
Q5: Advantages over traditional water pumps?
Higher vacuum, faster pumping, no water pollution, lower maintenance costs.
Q6: Installation requirements?
Only requires stable bench space and power connection, no special conditions.
Q7: Daily maintenance procedures?
Regular housing cleaning and connection checking, no special maintenance needed.
Q8: Warranty policy?
One-year full machine warranty with lifetime technical support.
Q9: Custom connection options?
Customized interfaces available based on user requirements.
Q10: Delivery time?
Standard models in stock, special customization requires 5-7 working days.
