Product features:

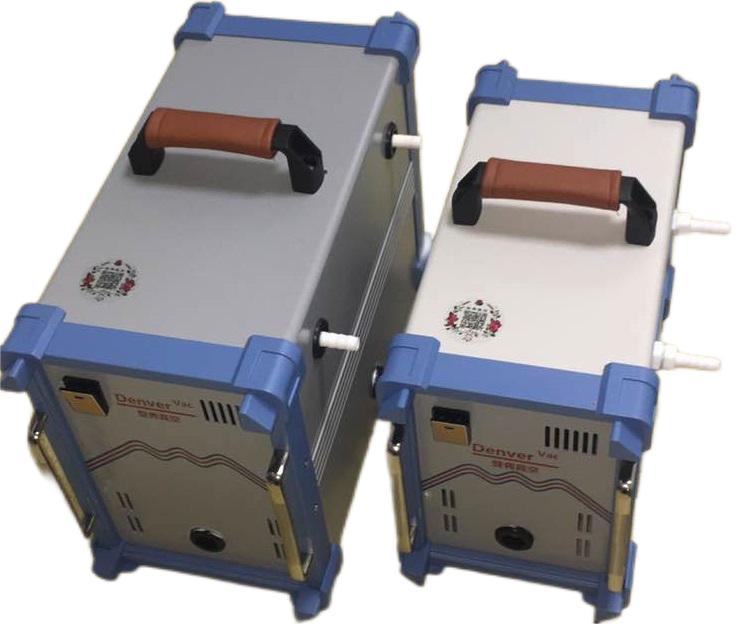

Box-type structure, safe operation, low noise
Dry operation, to ensure no oil pollution, green environmental protection
Durable and suitable for continuous operation
Motor with 4uf capacitor with overheat protection

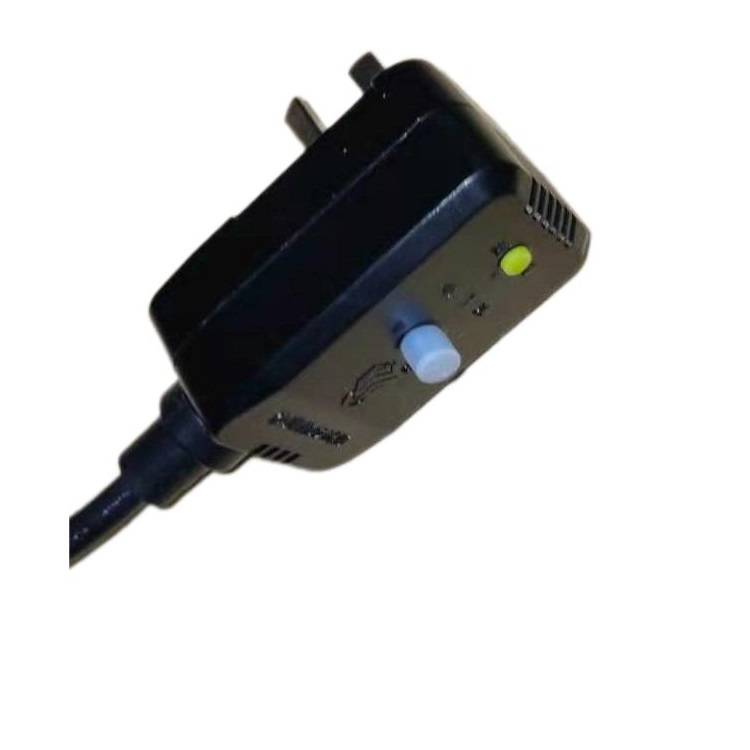

The safety plug protects the circuit part; The overflow material complies with ATEX II 2G IIB+ H2T3X explosion-proof requirements
The diaphragm is umbrella-shaped thickened EPDM rubber coated with PTFE, and the gas contact part is PTFE material and PTFE coating, which has very strong chemical corrosion resistance

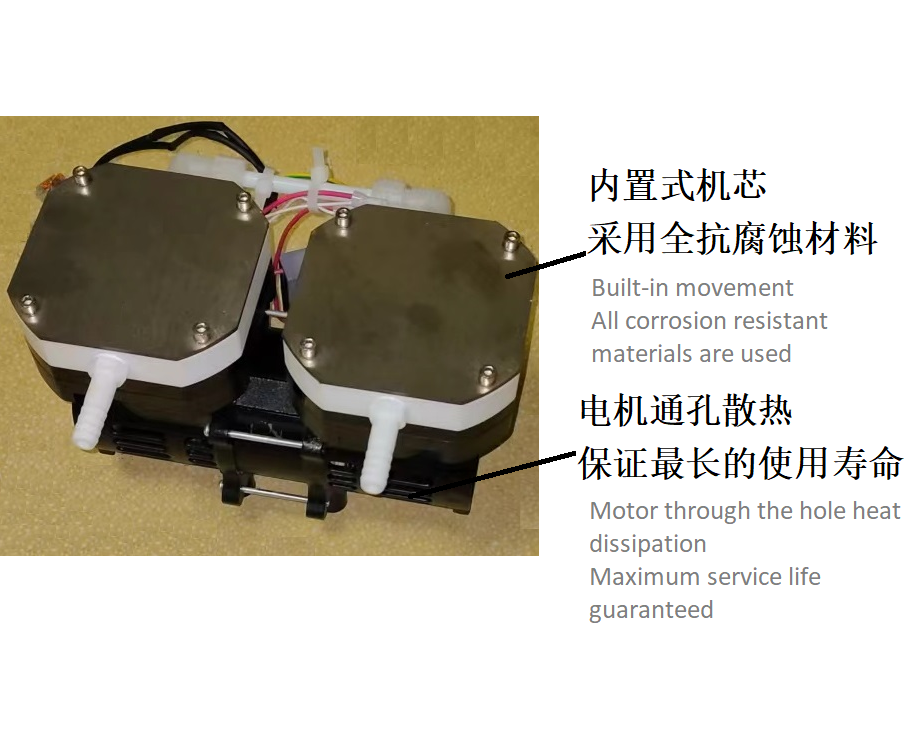

The selection of low-temperature elevator motor and the internal circulation of multiple ventilation holes and brushless fans in the box structure ensure long-term stable use
Compared with the traditional laboratory circulating pump (limit vacuum 30mbar, pumping speed 10L/min), the performance is significantly improved. Manual vacuum regulating valve, vacuum measuring instrument, etc.
Product parameters:
|
model
|
TXCE 822 TXCE 838 TXCE 5025 TXCE 5038 TXCE 240 TXCE 860 TXCE 275 TXCE 8110
|
|
Pump head form
|
Secondary secondary pump head
|
two stage
Two pump head
|
two stage
Two pump head
|
two stage
Two pump head
|
three-level
Four pump head
|
three-level
Four pump head
|
three-level
Four pump head
|
three-level
Four pump head
|
|
ultimate vacuum
|
8mbar
(800Pa)
|
8mbar (800Pa)
|
50mbar (5000Pa)
|
50mbar (5000Pa)
|
2mbar
(200Pa)
|
8mbar (800Pa)
|
2mbar
(200Pa)
|
8mbar
800Pa)
|
|
The suction speed
|
22 L/min
|
38L/min
|
25L/min
|
38L/min
|
40L/min
|
60L/min
|
75L/min
|
110L/min
|
|
Conventional application
|
Spinning evaporator
Centrifugation concentration
vacuum drying
Draw filter, exhaust
|
Draw filter, exhaust
|
Spinning evaporator
Centrifugation concentration
vacuum drying
Draw filter, exhaust
|
|
Acid and alkali resistant corrosion
|
|
Membrane size
|
diameter
68mm
|
diameter
106mm
|
diameter
68mm
|
diameter
106mm
|
diameter
68mm
|
diameter
68mm
|
diameter
106mm
|
diameter
106mm
|
|
|
100W
(220V)
|
130W
(220V)
|
100W
(220V)
|
130W
(220V)
|
205W
(220V)
|
205W
(220V)
|
265W
(220V)
|
265W
(220V)
|
|
noise
|
47dB(A) 48dB(A) 47dB(A) 48dB(A) 49dB(A) 49dB(A) 50dB(A) 50dB(A)
|
|
weight
|
9.5 kg
|
10.5 kg
|
9.5 kg
|
10.5 kg
|
18.5 kg
|
18.5 kg
|
19.5 kg
|
19.5 kg
|
|
joggle
|
NW 8-10mm (inner diameter 8 to 10mm tube)
|
|
Size (wide, long and high
|
320/175/205 mm
|
380/190/260 mm
|
320/175/205 mm
|
380/190/260 mm
|
380/480/260 mm
|
380/480/260 mm
|
380/480/260 mm
|
380/480/260 mm
|
|
