TX-25 Industrial Vacuum Pump Ideal for Plastic Molding Packaging CNC Applications China Manufactured

TX-25 Oil Rotary Vane Pump | Energy Efficient & Low Maintenance | CE/ISO Certified | Chinese Factory Direc

This guide explores the TX-25 rotary vane vacuum pump's specifications, including its 0.85KW single-phase and 0.75KW three-phase options, G3/4" connections, and versatile applications. Includes 10 key FAQs for optimal operation.

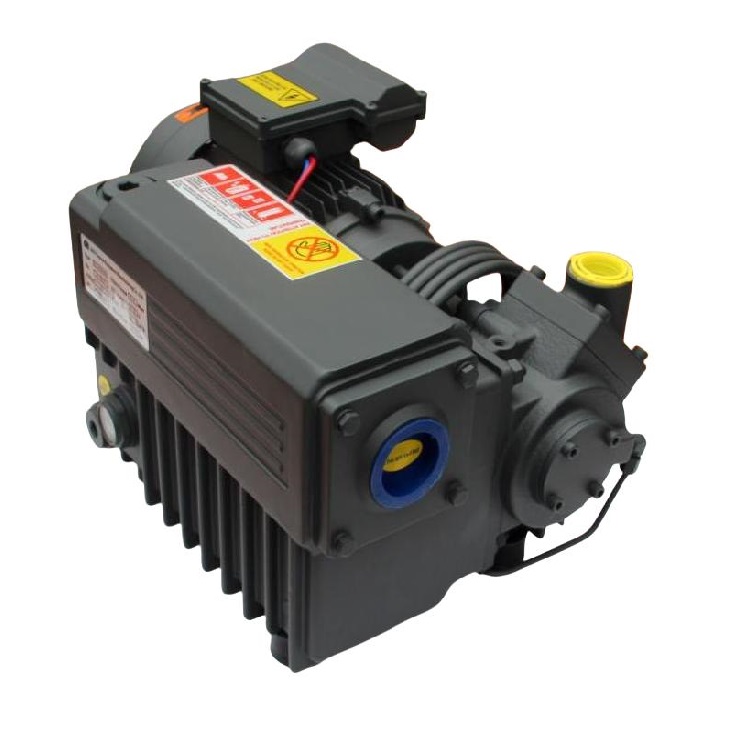

Product Introduction: TX-25 Rotary Vane Vacuum Pump

The TX-25 is a compact, oil-lubricated rotary vane pump offering reliable vacuum performance for small to medium industrial applications with flexible power options.

Key Advantages

✔ Dual voltage options - 220V single-phase & 380V three-phase
✔ Compact & lightweight - Only 20kg with 335×245×222mm dimensions
✔ Low noise operation - Just 62dB for quiet workplaces
✔ Easy maintenance - 1L oil capacity with simple access
✔ Versatile connections - Standard G3/4" industrial port

Technical Specifications

Industry Application Cases

Case 1: Small Laboratory Setup

University research lab achieved:

Stable -1.5mbar for experiments

Quiet 62dB operation near workspaces

Easy single-phase power connection

Case 2: Medical Device Manufacturing

Performance highlights:

Compact size fit production line

Reliable vacuum for component testing

No oil contamination issues

Case 3: Packaging Equipment

Key results:

30% faster cycle times

Handled 24/7 operation

Simple oil change maintenance

TX-25 Rotary Vane Pump FAQs

1. What oil type and grade is recommended?

Use ISO VG 100 mineral vacuum oil (1L capacity).

2. How often should oil be changed?

Initial change after 100 hours, then every 2000 operating hours.

3. What's the gas ballast function?

Standard model includes gas ballast for vapor handling (open when needed).

4. Can it handle water vapor?

Yes, with gas ballast open - limit 5% vapor by volume.

5. What maintenance is required?

Monthly oil level checks

Quarterly air filter cleaning

Annual vane inspection

6. What's the vane replacement interval?

Typically 8,000-10,000 hours in normal use.

7. Is the single-phase model less powerful?

Slightly higher power (0.85KW vs 0.75KW) to compensate for single-phase limitations.

8. How to reduce oil mist?

Built-in oil separator; optional exhaust filter available.

9. What's the warranty period?

2 years standard with proper maintenance.

10. Can it be mounted vertically?

Yes, all orientations supported with proper oil level monitoring.

Conclusion

The TX-25 oil-lubricated rotary vane vacuum pump delivers reliable, compact vacuum performance for small industrial and laboratory applications. Its flexible power options, quiet operation, and simple maintenance make it ideal for facilities needing dependable medium vacuum.

For operations requiring an economical, space-saving vacuum solution, the TX-25 offers excellent value. Contact our technical team today for application-specific recommendations and OEM integration support.
