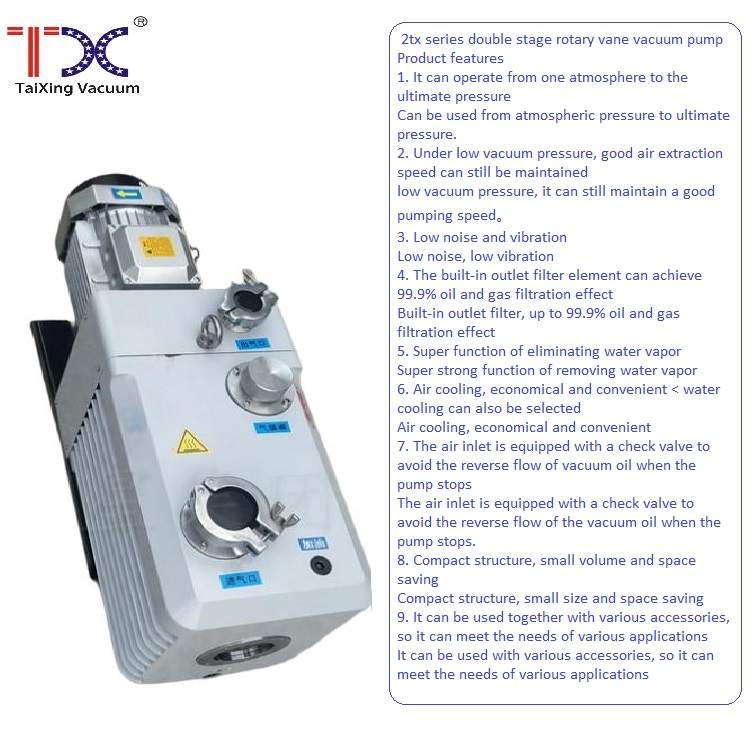

Why Choose the TX-08D Double Stage Rotary Vane Vacuum Pump?

The TX-08D from Taixing Industrial is a high-performance double stage oil-lubricated rotary vane vacuum pump engineered for demanding vacuum applications. With a pumping speed of 8 m³/h (50 Hz) and an ultimate vacuum of 3×10⁻³ mbar, it provides reliable and efficient vacuum generation. Its compact design, low noise levels (54/56 dB), and robust construction make it a top choice for industries requiring high vacuum performance, including semiconductor manufacturing, laboratory research, and refrigeration systems.

Key Features of the TX-08D Double Stage Rotary Vane Vacuum Pump

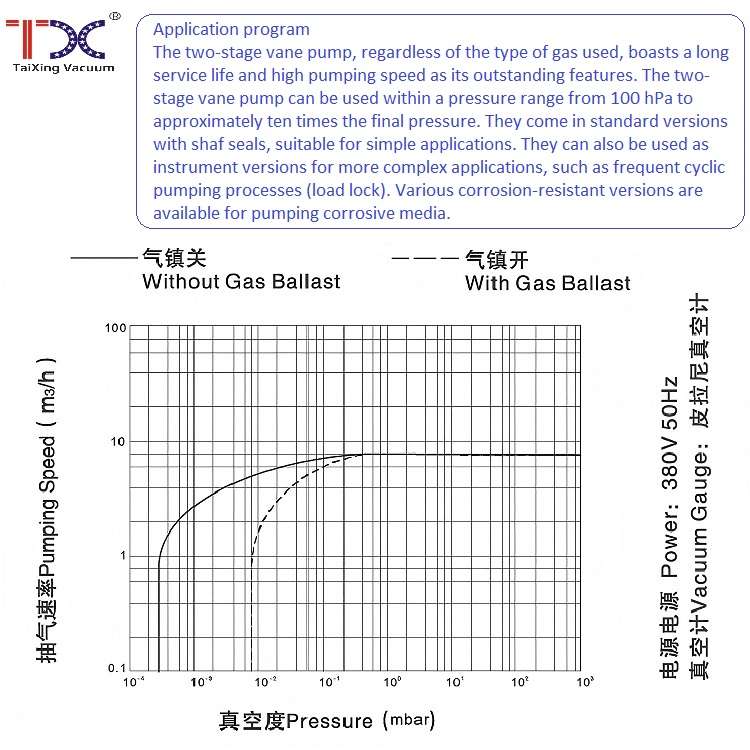

• High Pumping Speed: Achieves 8 m³/h at 50 Hz and 9.6 m³/h at 60 Hz for rapid vacuum generation.
• Ultra-Low Vacuum: Reaches a limit total pressure of 3×10⁻³ mbar and a partial pressure of 4×10⁻⁴ mbar for precise applications.
• Low Noise Operation: Operates at 54/56 dB (ENISO2151), ensuring a quiet working environment.
• Compact and Lightweight: Weighs only 27 kg with a total height of 272 mm and length of 500 mm for easy integration.
• Robust Oil System: Features a 1.0/0.7 L oil filling level for consistent lubrication and long-term reliability.
• High Water Vapor Tolerance: Handles up to 30 mbar of water vapor, ideal for humid environments.
• Flexible Power Options: Supports single-phase 220V or double-phase 380V with a 550W motor.
• Standardized Interface: Equipped with a KF25 nominal size for seamless system integration.
• Wide Operating Temperature: Functions reliably between 5°C and 40°C, suitable for diverse environments.

Applications of the TX-08D Double Stage Rotary Vane Vacuum Pump

• Semiconductor Manufacturing: Provides reliable vacuum for wafer processing and deposition systems.
• Laboratory Research: Supports high-vacuum experiments in physics, chemistry, and material science.
• Refrigeration Systems: Ensures efficient vacuum for refrigerant charging and system maintenance.
• Industrial Processes: Powers vacuum systems in coating, drying, and degassing applications.
• Medical Equipment: Facilitates vacuum generation in sterilization and analytical systems.

Case Studies: Real-World Success with the TX-08D

Semiconductor Manufacturing: Improving Wafer Processing Efficiency
A semiconductor facility in South Korea used the TX-08D to maintain vacuum integrity in their deposition chambers. The pump’s 8 m³/h speed and 3×10⁻³ mbar vacuum reduced process cycle times by 20%, improving throughput and maintaining cleanroom standards.

Laboratory Research: Supporting Quantum Physics Experiments
A research institute in Germany integrated the TX-08D into a high-vacuum setup for quantum physics experiments. Its low noise (54 dB) and 4×10⁻⁴ mbar partial pressure ensured precise control, reducing experimental setup time by 30%.

Refrigeration Systems: Enhancing HVAC Production
A U.S.-based HVAC manufacturer employed the TX-08D for refrigerant charging. The pump’s 30 mbar water vapor tolerance and quick startup minimized downtime, boosting production line efficiency by 15%.

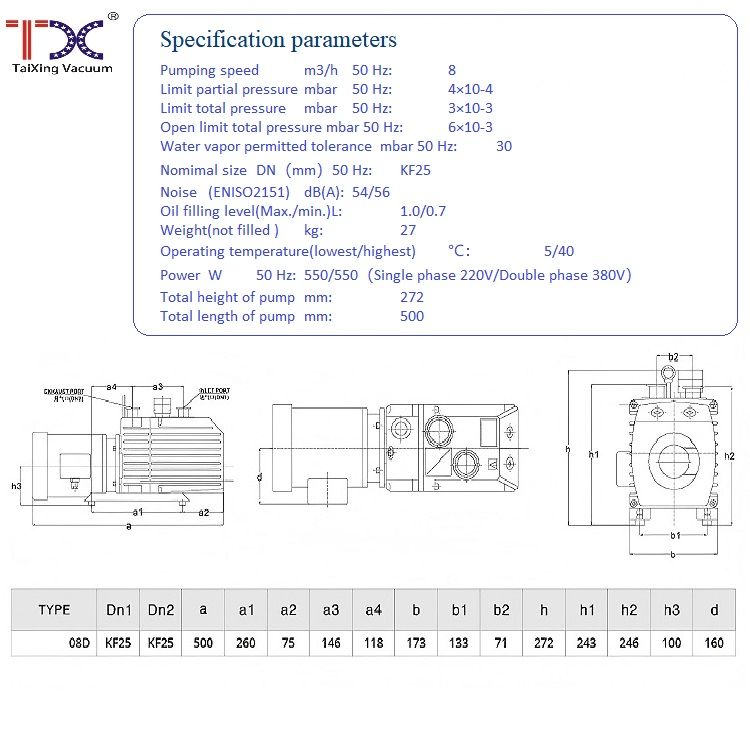

Technical Specifications

FAQ: TX-08D Double Stage Rotary Vane Vacuum Pump

What is the purpose of this vacuum pump?
It generates high vacuum for industrial, laboratory, and refrigeration applications using a double stage rotary vane design.

What is the pumping speed?
8 m³/h at 50 Hz and 9.6 m³/h at 60 Hz.

What is the minimum vacuum level?
3×10⁻³ mbar total pressure and 4×10⁻⁴ mbar partial pressure.

Is it suitable for noisy environments?
Yes, with low noise levels of 54/56 dB, it’s ideal for quiet settings.

How much oil does it require?
It uses 1.0 L maximum and 0.7 L minimum oil filling.

What power options are available?
Supports single-phase 220V or double-phase 380V with a 550W motor.

Is it easy to integrate into systems?
Yes, it features a KF25 nominal size for standard vacuum system compatibility.

What industries use this pump?
Semiconductor, laboratory, refrigeration, industrial processes, and medical equipment.

Is maintenance straightforward?
Yes, its robust design and oil system simplify maintenance and ensure durability.

Conclusion: Reliable Vacuum Performance for Critical Applications

The TX-08D Double Stage Rotary Vane Vacuum Pump delivers high pumping speed, ultra-low vacuum, and low-noise operation for demanding industrial and scientific applications. Its compact design and robust performance make it an ideal solution for semiconductor manufacturing, laboratory research, refrigeration systems, and more.
