High vacuum system
The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications
The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications
The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications
The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications

The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications

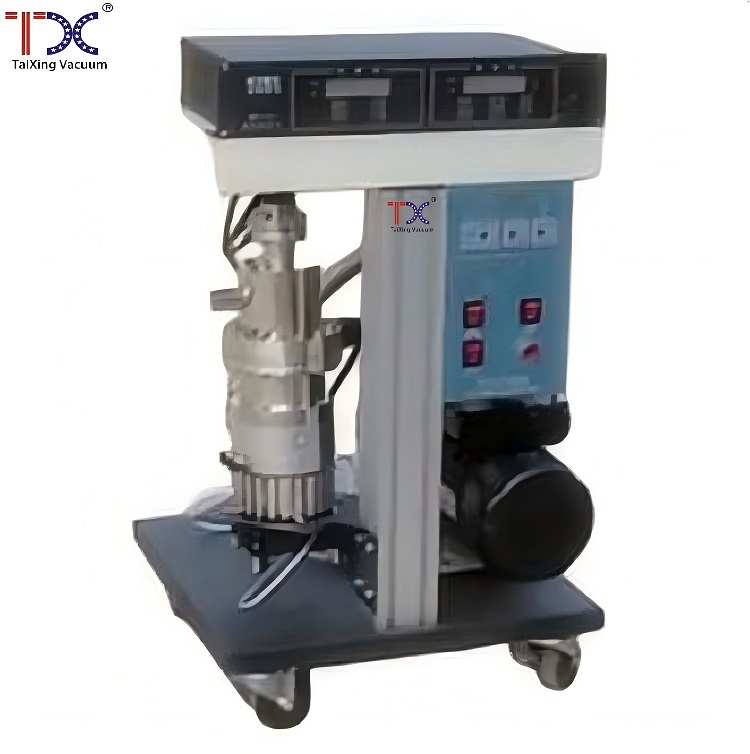

Product description FJ turbomolecular pumping station is a high vacuum acquisition equipment, which is composed of molecular pump, rotary vane vacuum pump, vacuum angle valve, stainless steel vacuum bellows, composite vacuum gauge, frame, pipeline and other accessories.
  • Item NO :

    FJ-600S
  • Motor power :

    2.5kw / Voltage: 380V, 380V /
  • Pumping speed :

    600L/S / Cable Length: 1.5m /
  • Limit vacuum :

    Ultimate pressure: 8*10-5 Pa

The 380V high-altitude molecular pump system with rotary vane pump 600L/S is particularly suitable for vacuum applications

FJ is suitable for scientific research institutions, schools and enterprises to do scientific research and production,
especially suitable for vacuum application equipment, such as: tube vacuum furnace, vacuum coating equipment, vacuum sintering furnace, vacuum smelting equipment, LNG tank vacuum pumping, xenon lamp vacuum pumping.

The standard pump station are FJ-300 (300L/S), FJ-600 (600L/S) and FJ-1200 (1200L/S).

At the same time, we supply the pump station based on customer's requirement.

 Model No.
 FJ-600S
 Pumping Speed
600 L/S
 Backing pump speed
60 m3/h
 Ultimate Pressure
 ≤8.0*10-5 Pa
 Use Pressure
 ≤5.0*10-4 Pa

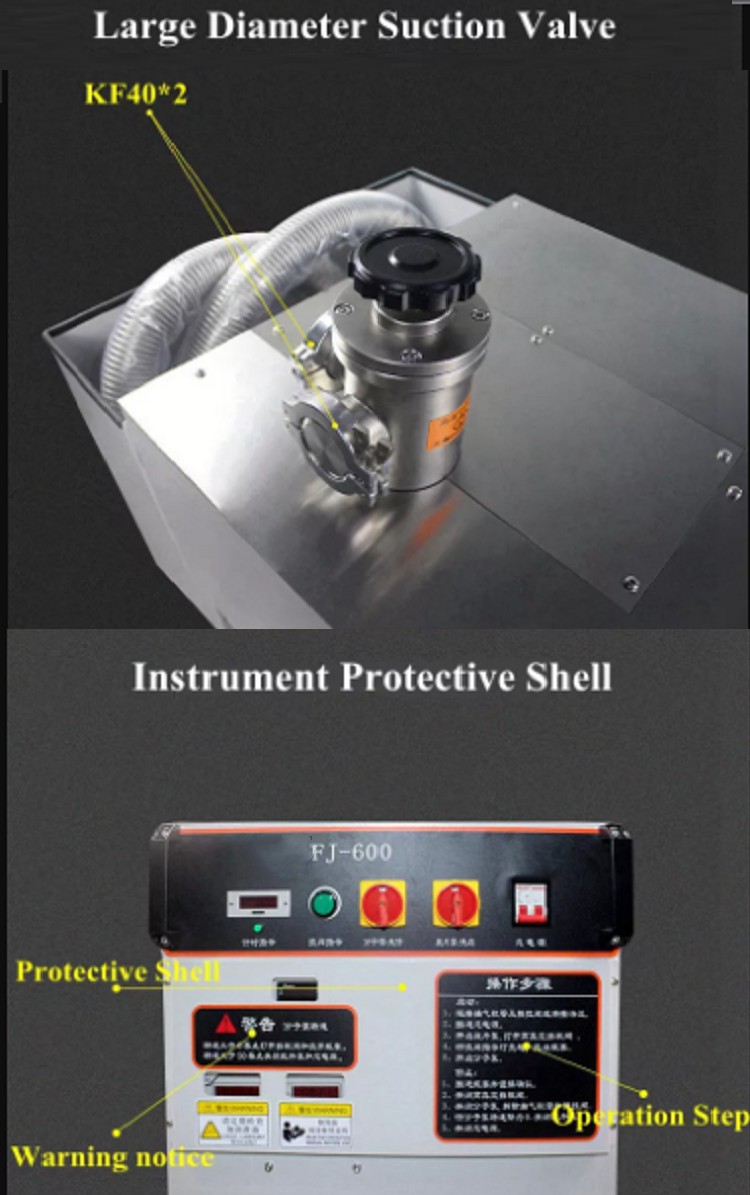

 Inlet Port
 KF40*2
 Startup time
 ˂10min
 Total Power
2.5 KW
 Power supply
380V/50HZ
 Cooling
 Air
 Weight
 195 kg
 Dimension(W*D*H) mm
770*530*1050
