Vortex air pump
The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications
The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications
The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications
The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications
The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications

The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications

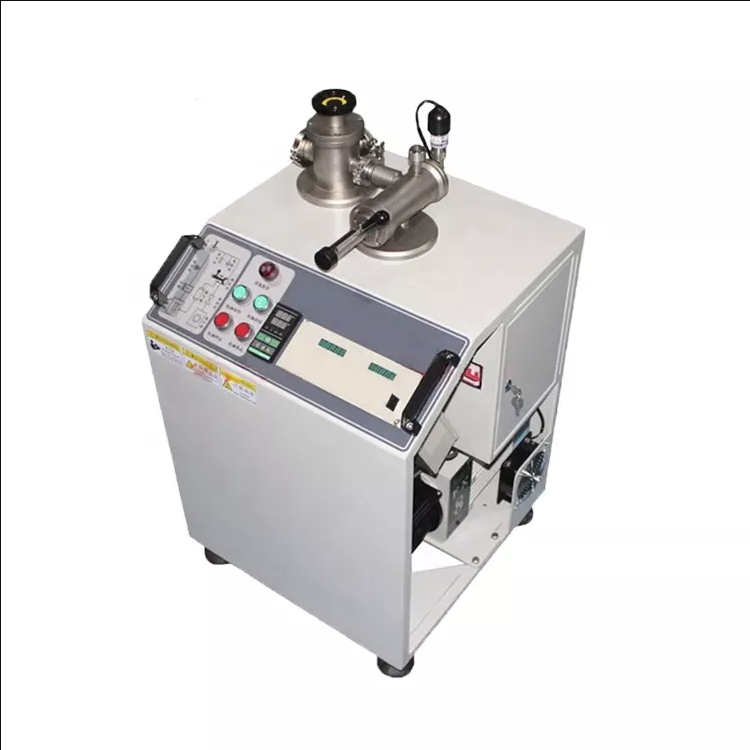

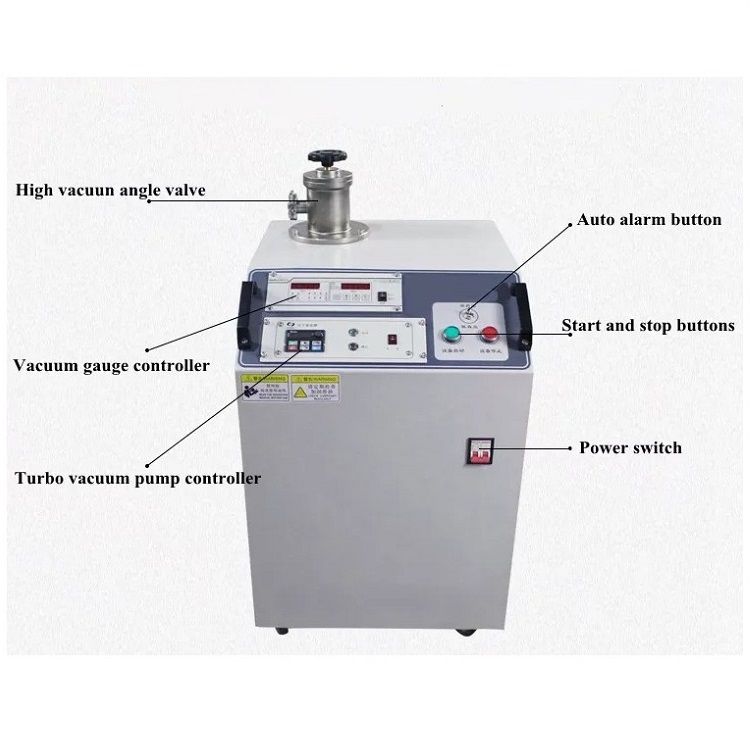

Product Description FJ turbo molecular pump system is high vacuum obtaining equipment and it is made up of molecular pump, rotary vane vacuum pump, vacuum angle valve, stainless steel vacuum bellow, compound vacuum gauge, frame, pipe and other fittings.
  • Item NO :

    Power supply: 220V/50HZ / Inlet Port :KF25
  • Payment :

    Total Power : 1.2 KW
  • Color :

    Cooling :Air
  • Type :

    500*550*850
  • Motor power :

    220V/50HZ
  • Pumping speed :

    300 L/S
  • Limit vacuum :

    ≤5.0*10-4 Pa

The 300L/S high vacuum turbo pump station with rotary vane pump is particularly suitable for vacuum applications

FJ is suitable for scientific research institutions, schools and enterprises to do scientific research and production,
especially suitable for vacuum application equipment, such as: tube vacuum furnace, vacuum coating equipment, vacuum sintering furnace, vacuum smelting equipment, LNG tank vacuum pumping, xenon lamp vacuum pumping.

The standard pump station are FJ-300 (300L/S), FJ-600 (600L/S) and FJ-1200 (1200L/S).

 Model No.
 FJ-300(FJ-I)
 Pumping Speed
300 L/S
 Backing pump speed
12 m3/h
 Ultimate Pressure
 ≤8.0*10-5 Pa
 Use Pressure
 ≤5.0*10-4 Pa
 Inlet Port
 KF25
 Startup time
 ˂10min
 Total Power
 1.2 KW
 Power supply
220V/50HZ
 Cooling
 Air
 Weight
 75kg
 Dimension(W*D*H) mm
500*550*850
