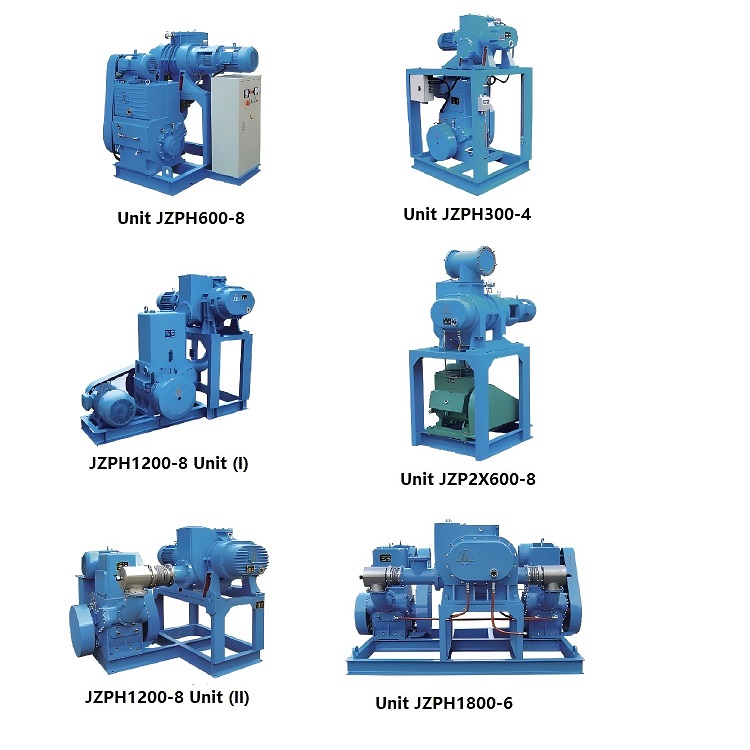

In the process of industrial production moving towards high efficiency, intelligence, and green development, high - performance application scenarios pose stringent requirements for the performance and stability of vacuum equipment. The energy - saving and high - efficiency Roots slide valve vacuum unit, with its advanced technology and excellent performance, has become a key device for many industries to ensure production efficiency and improve product quality.

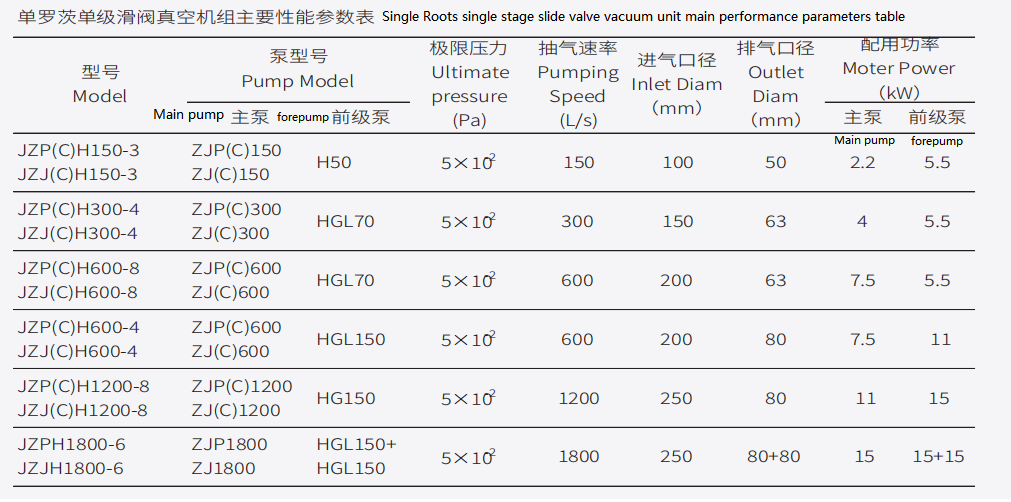

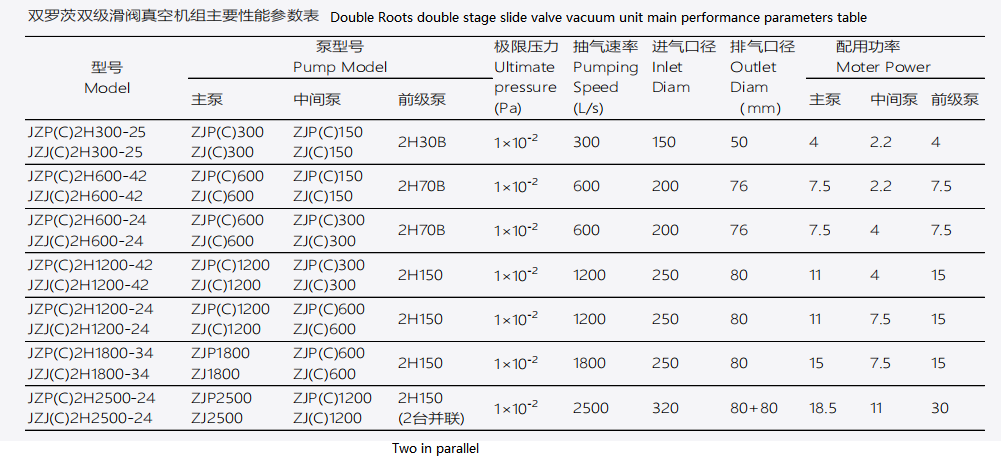

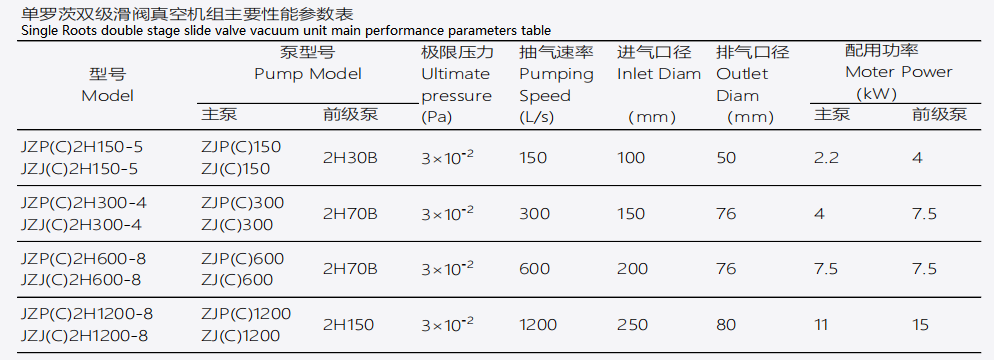

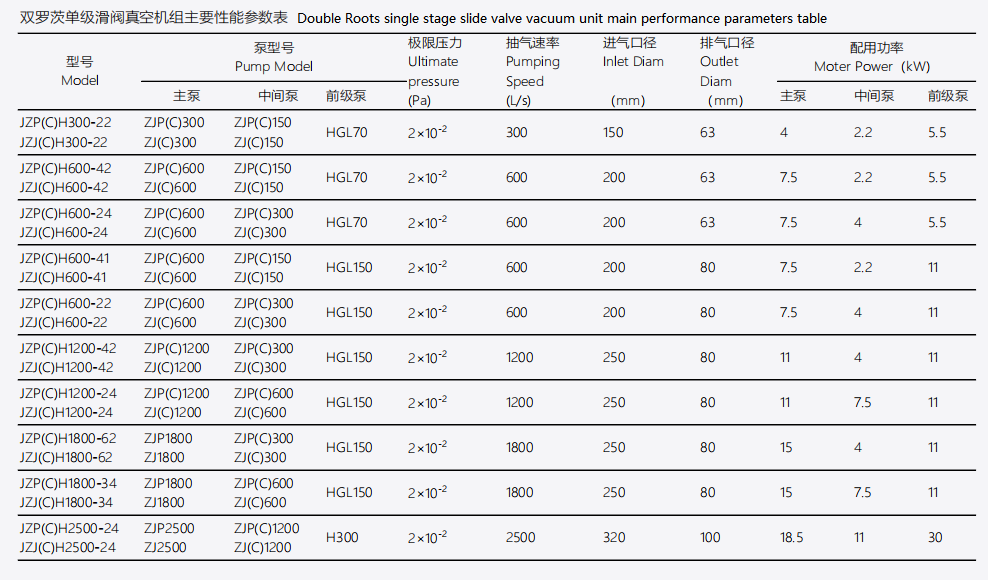

From product characteristics, actual application cases, to technical parameters and common question - answering, it presents the excellent performance and key role of the energy - saving and high - efficiency Roots slide valve vacuum unit in high - performance applications.
1. Remarkable Energy - Saving: Adopting advanced energy - saving technologies, optimizing the design of the motor and pump body, reducing energy consumption. While meeting high - performance requirements, it saves operating costs for enterprises.
2. Efficient Gas Extraction: Equipped with high - performance Roots pumps and slide valve pumps, it has a fast gas - extraction speed, can quickly reach the required vacuum degree, and greatly improves production efficiency.
3.High Vacuum Degree: It can stably reach an extremely low ultimate vacuum degree, meeting the extremely high requirements of industries such as aerospace and semiconductors for the vacuum environment.
4、Stable and Reliable: Selecting high - quality materials and exquisite manufacturing processes, the equipment operates stably, reduces the occurrence of failures, and lowers maintenance frequency.
5、Strong Adaptability: It can flexibly adjust operating parameters according to different working environments and process requirements, and adapt to a variety of complex working conditions.
1. Aerospace: Used for vacuum heat treatment, vacuum brazing, space simulation tests, etc. of aerospace components to ensure the performance of components in extreme environments.
2、Electronic Semiconductor: Provides a high - precision vacuum environment in links such as chip manufacturing, integrated circuit packaging, and liquid - crystal display panel production, ensuring product quality.
3、Chemical Industry: Applied in processes such as vacuum distillation, crystallization, drying, and polymerization to improve product purity and production efficiency.
4、Pharmaceutical Field: Used for pharmaceutical freeze - drying, vacuum concentration, aseptic filling, etc. to ensure the quality and stability of drugs.
5、Food Processing: Used for food vacuum packaging, freeze - drying, degassing, etc. to extend the shelf life of food and maintain its nutrition and flavor.
The lithography process of semiconductor chips. Lithography is the core link in chip manufacturing, and it has extremely high requirements for the stability, accuracy, and cleanliness of the vacuum environment, directly affecting the performance and yield of chips.

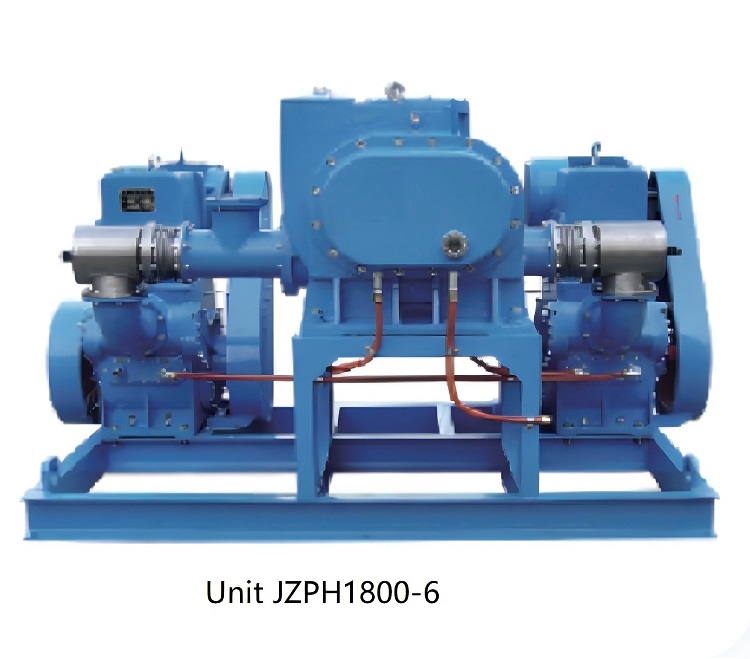

Energy - saving and high - efficiency Roots slide valve vacuum unit.
1、Preparation Stage: Place the lithography equipment and the silicon wafers to be processed in the vacuum chamber, and conduct strict cleaning and pretreatment of the equipment and silicon wafers to ensure no impurity contamination.
2、Vacuum Extraction: Start the energy - saving and high - efficiency Roots slide valve vacuum unit, and according to the preset gas - extraction program, quickly and smoothly extract the air in the vacuum chamber to make the vacuum degree reach [X] Pa required by the lithography process in a short time.
3、Lithography Process: In a stable high - vacuum environment, use the lithography equipment to accurately project the designed circuit pattern onto the silicon wafer, and irradiate the photoresist with ultraviolet light to make it undergo a chemical reaction and complete the pattern transfer.
4、Post - processing: After the lithography is completed, slowly release the vacuum, safely take out the silicon wafer, and carry out subsequent processes such as development, etching, and ion implantation.
1. Site Selection: Select an installation site that is dry, well - ventilated, far away from large - scale vibration sources and strong electromagnetic interference, and ensure that the ground bearing capacity meets the equipment requirements.
2、Foundation Construction: Pour a concrete foundation according to the equipment installation drawings, embed anchor bolts, and ensure that the errors in the levelness and perpendicularity of the foundation are within the allowable range.
3、Equipment Assembly: Install components such as Roots pumps, slide valve pumps, vacuum pipelines, valves, and control systems in sequence according to the installation manual to ensure that all components are closely connected and free of looseness.
4、Pipeline Connection: Use special vacuum pipelines and sealing parts to connect all equipment components, ensure the tightness of the pipeline system, and prevent vacuum leakage.
5、Electrical Connection: Connect the power lines and control lines of the equipment, ensure that the wiring is correct and firm, complies with electrical safety regulations, and install a grounding protection device.
6、Debugging and Operation: After the equipment installation is completed, conduct a comprehensive inspection and testing, including no - load trial operation and load trial operation, adjust the equipment parameters, and ensure the normal operation of the equipment.
1. How to select the appropriate model of the energy - saving and high - efficiency Roots slide valve vacuum unit according to the chip manufacturing process?
It is necessary to comprehensively consider factors such as the vacuum degree, gas - extraction rate, working time, and gas composition required for chip manufacturing, and select the model in combination with the equipment technical parameters.
2、What are the maintenance key points of the energy - saving and high - efficiency Roots slide valve vacuum unit in aerospace applications?
Regularly check the oil level and quality of the vacuum pump, clean the filter, check the tightness of pipelines and valves, and monitor the operating parameters of the motor.
3、What should be done if the vacuum degree fluctuates during chemical distillation with the energy - saving and high - efficiency Roots slide valve vacuum unit?
Check whether the pipeline is leaking, whether the vacuum pump is faulty, whether the valve is working properly, and whether the system is blocked.
4、How to ensure the quality of drugs in the pharmaceutical freeze - drying process with the energy - saving and high - efficiency Roots slide valve vacuum unit?
Ensure the stable operation of the equipment, maintain precise control of the vacuum degree and temperature, and regularly clean and disinfect the equipment.
5、What are the noise control measures of the energy - saving and high - efficiency Roots slide valve vacuum unit during food vacuum packaging?
Adopt measures such as sound - insulation covers and shock - absorbing pads, optimize the equipment structure design, and reduce the noise generated by mechanical vibration.
6、Which configuration factors affect the price of the energy - saving and high - efficiency Roots slide valve vacuum unit?
It is mainly affected by configuration factors such as the brand of the vacuum pump, motor power, functions of the control system, and pipeline material.
7、What are the specific requirements for the site when installing the energy - saving and high - efficiency Roots slide valve vacuum unit?
The site is required to be dry, well - ventilated, flat, and have enough space. The ground can bear the weight of the equipment and is far away from interference sources.
8、What should be done if the energy - saving and high - efficiency Roots slide valve vacuum unit suddenly stops due to excessive current during operation?
Check whether the motor is overloaded, whether the winding is short - circuited, and whether the power supply voltage is normal.
9、Can the energy - saving and high - efficiency Roots slide valve vacuum unit be used in combination with vacuum measuring equipment of other brands?
On the premise of meeting the interface and parameter matching, it can be used in combination, but attention should be paid to compatibility and calibration issues.
10、Which factors are closely related to the service life of the energy - saving and high - efficiency Roots slide valve vacuum unit?
It is closely related to factors such as equipment quality, usage frequency, working environment, and maintenance conditions.
