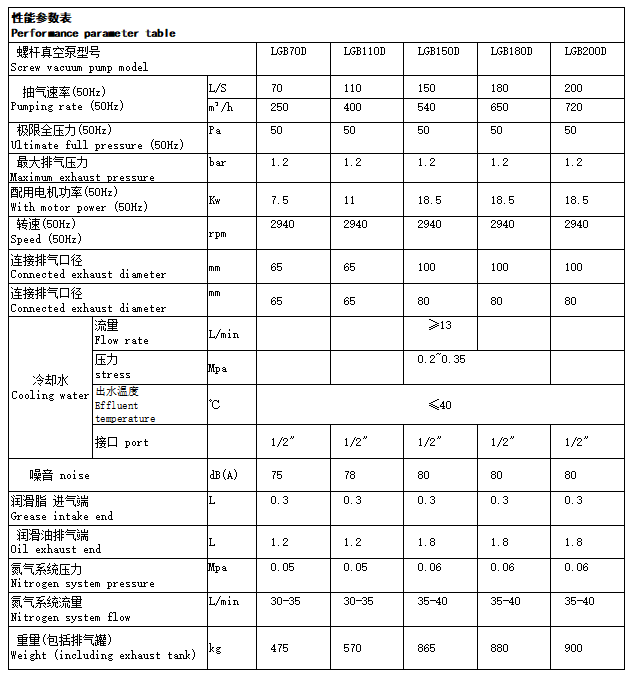

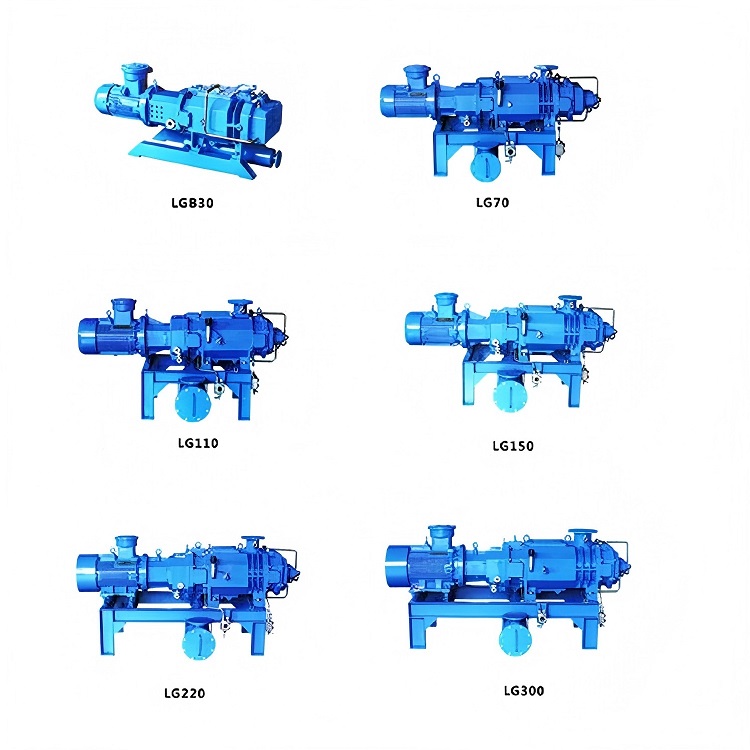

Pumping speed :
2940rpmpower :
7.5KWType :
LGB70DUltimate vacuum :
50paGain an in - depth understanding of the titanium - series screw pumps suitable for high - performance applications, covering technical specifications, product advantages, application fields, practical cases, equipment installation, and answers to common questions, to comprehensively master this industrial tool.
This article comprehensively introduces the titanium - series screw pumps, elaborates on their technical specifications such as pumping rate and ultimate pressure; highlights the advantages of TA2/TA10 materials in corrosion resistance and multi - scenario applications; shares practical cases, details application fields, equipment used, process flows, and installation key points; and answers common questions to help readers fully understand this product.
Two high - quality titanium materials, TA2 and TA10, are available. They exhibit super - strong resistance to various highly corrosive media. Whether in strong acid, strong alkali environments or working conditions with corrosive particles, the equipment can be effectively protected from corrosion, greatly extending the service life of the equipment and reducing the equipment replacement and maintenance costs of enterprises.
It can easily adapt to a variety of complex working conditions and operate stably under extreme conditions such as high temperature, high pressure, and high humidity. Whether in the reaction processes of the chemical industry, the fine processes of the pharmaceutical industry, or the waste - gas treatment in the environmental protection field, it can exert its excellent performance and meet the diverse needs of different industries.

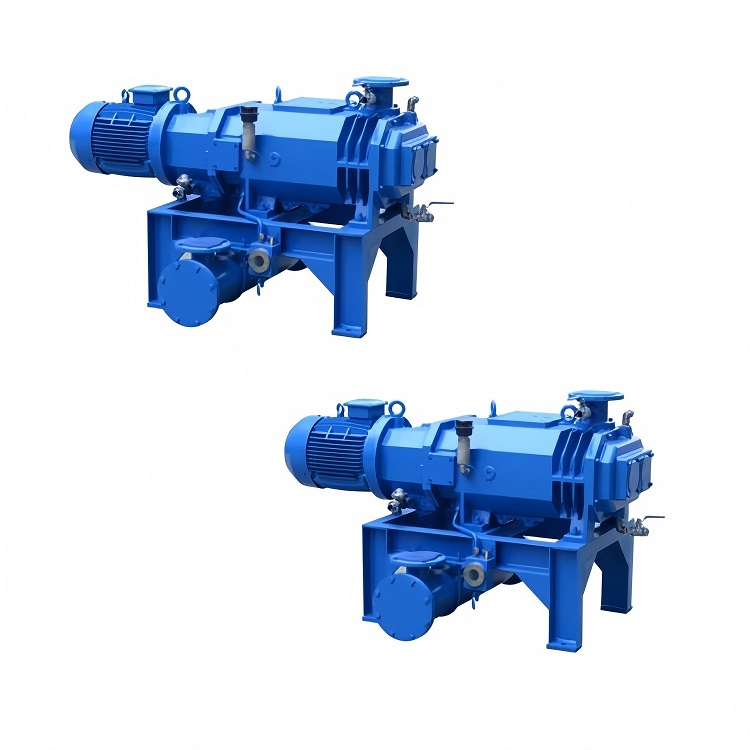

It adopts an advanced complete skid - mounted structure, integrating the screw pump and its supporting equipment on one skid. During installation, only the skid needs to be positioned as a whole, and after connecting the pipelines and lines, it can be put into use, which greatly shortens the installation period and reduces the on - site installation workload. At the same time, front/back - end condensation and recovery devices can be flexibly configured according to actual needs, achieving efficient resource recovery and utilization, reducing production costs, and conforming to the concept of green and environmental - friendly production.
It has an independently developed patented internal cooling structure. By ingeniously designing cooling channels inside the pump body, the cooling medium circulates in the channels, which can quickly and effectively take away the heat generated during the operation of the pump body. This ensures that the pump body always maintains a stable operating temperature during long - term continuous operation, avoids equipment failures and performance degradation caused by excessive temperature, and significantly improves the reliability and working efficiency of the equipment.
A large - scale chemical enterprise faced extremely harsh production conditions when producing a new chemical product. During the production process, a large amount of waste gas containing highly corrosive gases was generated, and the requirements for the corrosion - resistance of the gas - extraction equipment were extremely high. The ordinary screw pumps used in the past frequently malfunctioned due to severe corrosion shortly after being put into use, which not only affected the production progress but also led to high equipment maintenance and replacement costs.
After adopting the titanium - series screw pump (model LGB70D), the situation was fundamentally improved. The selected TA2 titanium material successfully withstood the erosion of highly corrosive gases. The equipment operated stably in the harsh working environment, and the pumping rate always remained at 70L/S (250m³/h), meeting the production demand for the rapid extraction of waste gas.
The complete skid - mounted design enabled the installation and commissioning of the equipment to be completed in a short time and put into production quickly. At the same time, the back - end condensation and recovery device configured according to the production process requirements effectively recovered the useful components in the waste gas, not only reducing production costs but also reducing environmental pollution.
The patented internal cooling structure ensured the stability of the pump body during long - term high - load operation. The motor power always remained at 7.5KW, and there was no power fluctuation or equipment failure caused by excessive temperature. The production efficiency of the chemical enterprise was greatly improved, and the equipment failure rate was significantly reduced, bringing significant economic and environmental benefits to the enterprise.
In all aspects of chemical production, such as vacuum extraction of reaction kettles, distillation, absorption, drying, and other processes, the titanium - series screw pumps, with their excellent corrosion - resistance performance and stable gas - extraction capacity, ensure the safe and efficient progress of the production process. They can be used to transport various corrosive gases and liquids, such as strong acid media like hydrochloric acid, sulfuric acid, and nitric acid, as well as strong alkali media like sodium hydroxide and potassium hydroxide.
In the research and production of pharmaceuticals, the requirements for the cleanliness and corrosion - resistance of equipment are extremely high. The titanium - series screw pumps can be used in the vacuum drying, concentration, crystallization, and other processes of pharmaceuticals. Their corrosion - resistance performance avoids the contamination of the equipment to the pharmaceuticals, ensuring the stability and safety of the pharmaceutical quality. At the same time, their stable gas - extraction performance ensures the precise control of the process, meeting the strict requirements of the pharmaceutical industry for the production environment.
In environmental protection projects such as waste - gas treatment and sewage treatment, gases and liquids containing corrosive components are often encountered. The titanium - series screw pumps can be used to extract harmful gases in industrial waste gas, such as sulfur dioxide and hydrogen sulfide, as well as to treat corrosive substances in sewage, providing reliable equipment support for the environmental protection cause. Their high - efficiency gas - extraction and transportation capabilities help to improve the operating efficiency of environmental protection facilities and reduce pollutant emissions.
In the new energy fields such as lithium - battery production and solar photovoltaic manufacturing, a high - precision vacuum environment and corrosion - resistant equipment are required during the production process. The titanium - series screw pumps can be used in the vacuum drying and liquid - injection links of lithium - battery production, as well as in the vacuum coating and diffusion processes of solar photovoltaic manufacturing, providing a stable vacuum guarantee and corrosion - resistant solutions for the development of the new energy industry.

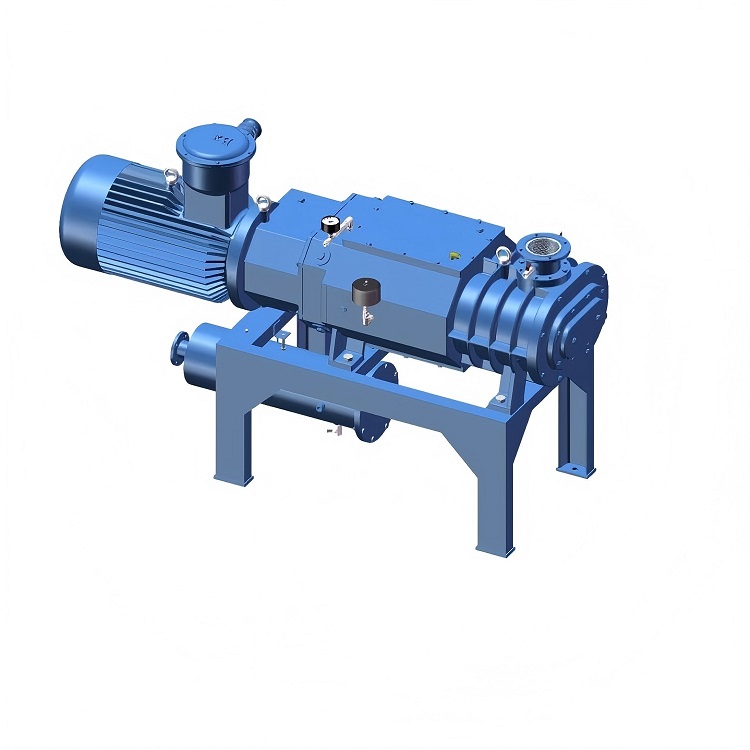

The core equipment is responsible for the extraction and transportation of gases or liquids.
Provides power for the screw pump and drives the screw to rotate.
Adjusts the output speed of the motor to enable the screw pump to reach the appropriate working speed.
Connect the screw pump to other equipment and control the flow direction and flow rate of gases or liquids.
Used to cool the extracted gas to condense it into a liquid for easy recovery or subsequent treatment.
According to the process requirements, further processes and recycles the condensed liquid or recovered gas.
Check the appearance of the screw pump and its supporting equipment to ensure they are in good condition and all components are firmly connected.
Check the oil level and quality of the lubricating oil to ensure that the lubricating oil is sufficient and meets the requirements.
Check the installation of pipelines and valves to ensure their correctness, and the valves are in the correct open or closed state.
Connect to the power supply and check whether the motor wiring is correct and the insulation performance is good.
First, start the cooling system (if available) to ensure the normal circulation of the cooling medium.
Start the motor, and the screw pump starts to operate driven by the reducer. During the start - up process, observe the operating status of the motor and the screw pump for any abnormal noise, vibration, or stalling.
Real - time monitor parameters such as the pumping rate, vacuum degree (or pressure), motor current, and temperature to ensure that the equipment operates within the normal range.
Regularly check the oil level and quality of the lubricating oil and replenish or replace it in a timely manner if necessary.
Observe whether there are any leakage phenomena in the pipelines and valves and deal with them promptly if there are.
According to the process requirements, control the flow rate and pressure of gases or liquids by adjusting the valves.
First, close the inlet valve to stop the input of gases or liquids.
Stop the operation of the motor and let the screw pump gradually stop rotating.
Close the cooling system (if available).
Clean and maintain the equipment, check the wear of vulnerable parts such as screws and seals, and replace them in a timely manner if there is wear.

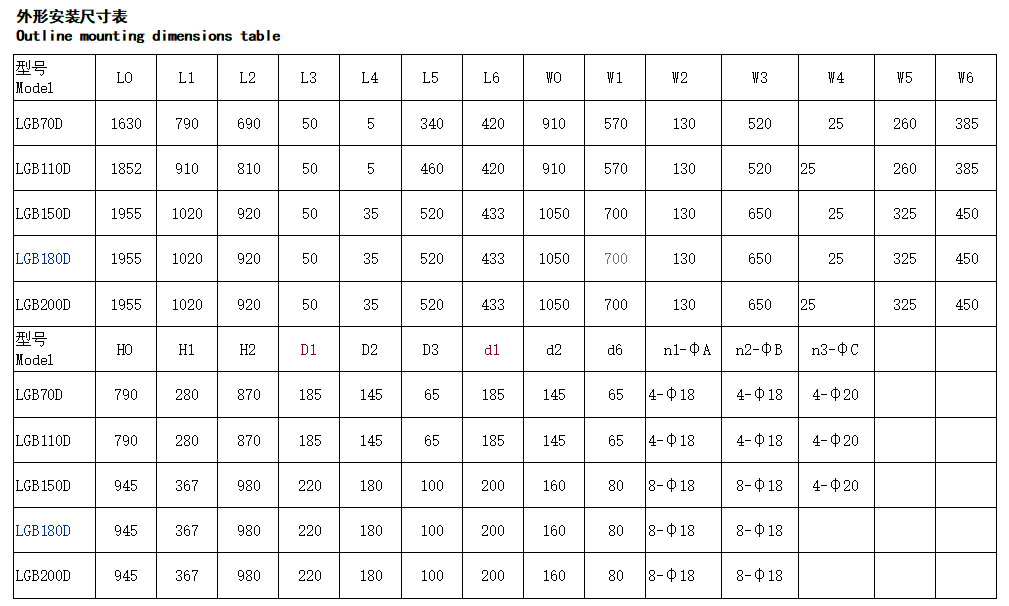

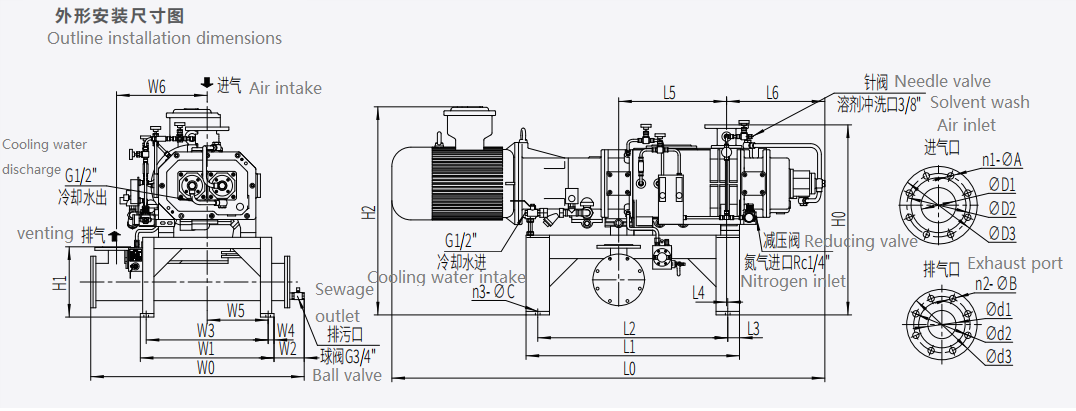

Make a suitable concrete foundation according to the weight and size of the screw pump. The foundation should have sufficient strength and stability to withstand the vibration and weight generated during the operation of the equipment.
Reserve anchor bolt holes on the foundation surface to install anchor bolts for fixing the equipment.
Use lifting equipment to hoist the screw pump and its supporting equipment onto the foundation, and adjust the position and levelness of the equipment according to the installation drawings.
Fix the equipment to the foundation with anchor bolts, tighten the nuts, and ensure that the equipment is firmly installed.
Install the inlet and outlet pipelines according to the process flow and equipment layout. The pipelines should be made of suitable materials to ensure their corrosion - resistance and tightness.
Use sealing gaskets or sealants at the pipeline connection parts to prevent gas or liquid leakage.
Install valves and ensure that the valves operate flexibly and can accurately control the flow of gases or liquids.
Connect the power lines and control lines of the motor according to the electrical schematic diagram. Ensure that the electrical connections are correct and firm, and the wire insulation performance is good.
Install a grounding device to reliably connect the metal shell of the equipment to the grounding electrode to prevent electrical accidents.
After completing the equipment installation and connection, conduct commissioning and operation. Check the operating status of the equipment, such as whether the rotation direction of the motor is correct, whether the screw pump operates smoothly, and whether there are any abnormal noises and vibrations.
Gradually adjust the operating parameters of the equipment, such as the pumping rate, vacuum degree (or pressure), etc., to make them meet the design requirements.
During the commissioning process, conduct a comprehensive inspection of the equipment. Only after ensuring that all performance indicators of the equipment meet the requirements can it be officially put into use.
Determine the key parameters according to the actual application requirements. For example, the pumping rate should meet the requirements of the process for the extraction volume of gases or liquids; the ultimate total pressure should meet the required vacuum degree or pressure conditions of the process; consider the corrosiveness of the working medium. If the corrosiveness is strong, preferentially select models with TA2/TA10 materials; and then comprehensively select considering factors such as installation space and budget. For example, the LGB70D model is suitable for scenarios where the pumping rate requirement is 70L/S (250m³/h) and the ultimate total pressure requirement is 50Pa.
First, check whether the inlet pipeline is blocked and clean the impurities and foreign objects in the pipeline; check whether the seals are damaged and replace them in a timely manner if there is damage to prevent gas leakage from affecting the pumping; check the wear of the screws. Severe wear will reduce the pumping efficiency, and the screws need to be repaired or replaced; in addition, confirm whether the motor speed is normal. A decrease in the motor speed caused by a motor failure will also reduce the pumping rate.
Regularly check the quality and oil level of the lubricating oil and replace the lubricating oil at the specified time; check the sealing performance of the seals and replace the worn seals in a timely manner; clean the filter to prevent impurities from entering the pump body; check the wear and corrosion of the screws and repair or replace them if necessary; clean the appearance of the equipment to keep the equipment clean.
Select the appropriate titanium material (TA2/TA10) and reasonably select according to the strength of the medium's corrosiveness; avoid the over - temperature and over - pressure operation of the equipment, because extreme working conditions will accelerate corrosion; regularly inspect the equipment to check for signs of corrosion. If local corrosion is found, deal with it in a timely manner; use corrosion - resistant pipelines and connecting parts to ensure the consistent corrosion - resistance performance of the entire system.
Ensure that the installation foundation is flat and firm and can withstand the weight and vibration during the operation of the equipment; accurately position the skid - mounted equipment according to the installation drawings and adjust the levelness; pay attention to sealing when connecting the pipelines to prevent leakage; the electrical connection should be standardized and the grounding protection should be well done; after the installation is completed, check each component to ensure that the connections are firm and there are no loose phenomena.
The patented internal cooling structure can effectively reduce the operating temperature of the pump body, avoid equipment failures caused by excessive temperature, such as motor burnout and seal aging; a stable operating temperature can extend the service life of the equipment and reduce equipment maintenance and replacement costs; it helps to maintain the stable performance of the equipment, ensure the stability of the pumping rate and vacuum degree (or pressure), and improve production efficiency.
The pump body is made of titanium materials that meet the requirements of pharmaceutical production, with a smooth surface that is not easy to breed bacteria and retain impurities; regularly clean and disinfect the equipment to ensure that there are no pollutants remaining inside the equipment; strictly control the equipment operating parameters to ensure the stability and consistency of the process, and meet the strict requirements of the pharmaceutical industry for the production environment and process.
Use professional vacuum degree or pressure measuring instruments and connect them to the exhaust port or relevant detection points of the equipment; after the equipment operates stably, read the data of the measuring instruments and compare it with the ultimate total pressure (50Pa) in the technical specifications of the equipment. If the measured value is within the allowable error range, it indicates that the ultimate total pressure meets the standard; otherwise, check whether there are malfunctions in the equipment, such as sealing leakage and screw wear.
Connect the pipelines and valves reasonably according to the environmental protection process requirements to ensure the smooth transportation of gases or liquids; when cooperating with condensers, recovery devices, etc., adjust the operating parameters of the equipment, such as the pumping rate and temperature, according to the nature of the medium and process parameters to achieve effective resource recovery and up - to - standard treatment of pollutants; connect with the control system to achieve automated control and improve the operating efficiency and stability of environmental protection equipment.
Although the initial purchase price is relatively high, considering its excellent corrosion - resistance performance, it can reduce equipment replacement and maintenance costs; its multi - scenario applicability can meet the needs of different industries and improve equipment utilization; the convenient installation and stable operation brought by the complete skid - mounted design and the patented internal cooling structure can improve production efficiency. In terms of long - term use costs and production benefits, it has a high cost - performance ratio.
