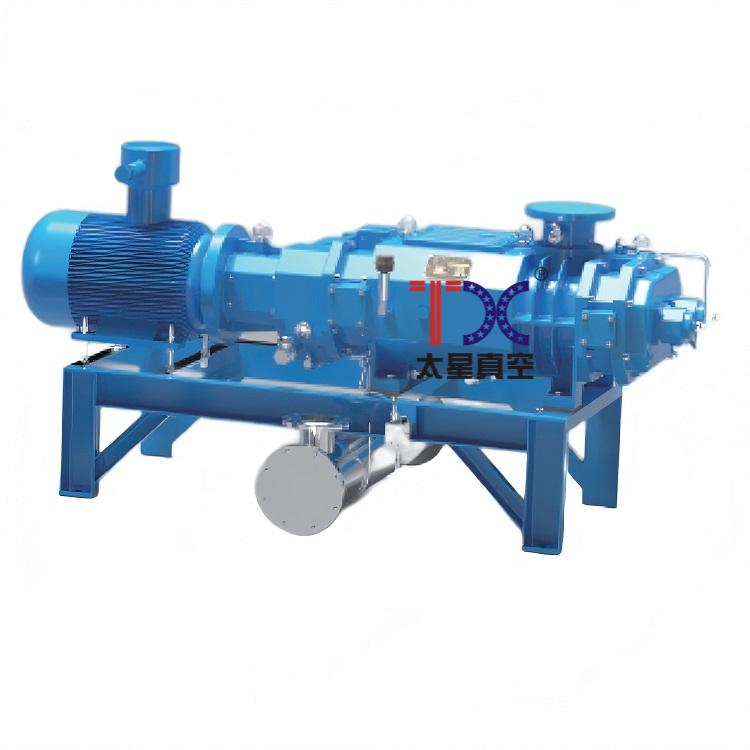

LGB 230 Screw Vacuum Pump High-Performance Vacuum Solution for Industrial Applications

Dry Screw Vacuum Pump for Pharmaceutical Industry  LGB Series

The LGB Series Dry Screw Vacuum Pumps are tailored for pharmaceutical applications, offering clean, oil-free operation to support critical processes like freeze-drying and solvent recovery. With advanced variable pitch technology, these pumps ensure precise and efficient vacuum performance.

Notes

Oil-Free Screw Vacuum Pump – Energy-Efficient and Eco-Friendly Solution
This screw vacuum pump features two precisely machined screws with opposite rotations, separated by a 0.5–1mm gap, allowing small dust particles to pass through. Its frictionless operation compresses and discharges gases efficiently. The pump includes a cooling water jacket for enhanced temperature control, making it an ideal replacement for traditional pump systems like water ring pumps, rotary vane pumps, reciprocating pumps, and sliding valve pumps.

Key Features:

o Oil-free and frictionless design for reduced maintenance and environmental compliance

o Dust-resistant capability for handling small particles

o Equipped with a cooling water jacket for stable performance

o Energy-saving and eco-friendly, with no hazardous emissions

o Perfect for industrial applications requiring high-efficiency vacuum technology

o A robust alternative to traditional vacuum systems, ensuring sustainability

The image should display the pump in an industrial or environmental setting, with close-ups of the screws, cooling water jacket, and exhaust systems, emphasizing its advanced and sustainable design.

This optimized setup will help the Oil-Free Screw Vacuum Pump gain higher visibility in search results and attract attention from industries focused on energy efficiency and sustainability. Let me know if further refinement is needed!

Application Fields

Semiconductor and Microelectronics Industry

It is used in links such as lithography, etching, and film coating during chip manufacturing to provide a high - vacuum and pollution - free environment.

Pharmaceutical Industry

In processes such as drug drying, concentration, crystallization, and sterile preparation production, it ensures the cleanliness and stability of the vacuum environment.

Photovoltaic Industry

It is suitable for processes such as silicon wafer production and battery module packaging, ensuring the vacuum requirements during the production process.

Chemical Industry

In chemical reactions, distillation, drying, and other processes, it maintains stable vacuum conditions to promote the progress of reactions.

Equipment Used

In addition to the main equipment of the conventional dry screw vacuum pump, it also includes supporting motors, cooling systems, nitrogen supply systems, control systems, etc. According to different application scenarios and process requirements, auxiliary equipment such as filters and buffer tanks may also be equipped.

Process Flow

Preparation before Start - up

Check whether the connections of all components of the equipment are firm, whether the supplies of lubricating oil, cooling water, nitrogen, etc. are normal, and whether the electrical system is safe and reliable.

Starting the Equipment

First, turn on the cooling system to ensure the normal circulation of cooling water, and then start the motor to make the vacuum pump start running.

Operation Monitoring

During the operation of the equipment, the pumping rate, vacuum degree, motor current, temperature, and other parameters are monitored in real - time through the remote control system or on - site instruments to ensure the normal operation of the equipment.

Stopping the Equipment

First, stop the motor, then turn off the cooling system and other auxiliary equipment, and finally carry out necessary equipment maintenance and upkeep.

Equipment Installation

Foundation Preparation

According to the weight and size of the vacuum pump, a suitable concrete foundation is made to ensure that the foundation is flat and firm and can withstand the vibration and weight during the operation of the equipment.

Equipment Placement

Use lifting equipment to hoist the vacuum pump onto the foundation and adjust the position of the equipment to make its levelness meet the requirements.

Pipeline Connection

Connect the intake pipeline, exhaust pipeline, cooling water pipeline, nitrogen pipeline, etc. according to the design requirements to ensure that the pipeline connections are tight and leak - free.

Electrical Connection

Connect the motor power cables, control lines, etc. of the vacuum pump to ensure that the electrical connections are correct and safe, and carry out necessary grounding protection.

Commissioning and Operation

After completing the equipment installation and connection, conduct commissioning and operation to check whether the equipment operates normally and whether all parameters meet the requirements.

Common Question Answers of Conventional Dry Screw Vacuum Pump

1. How to Select a Model of the Conventional Dry Screw Vacuum Pump to Meet High - Performance Applications?

When selecting a model, factors such as pumping rate, ultimate full pressure, special requirements of the application scenario, and budget need to be comprehensively considered. For example, semiconductor manufacturing has high requirements for vacuum degree and cleanliness, so models with low ultimate full pressure and oil - free flow - through can be selected; if large - scale chemical production requires rapid gas extraction, specifications with high pumping rates should be emphasized.

2. What to Do if the Vacuum Degree of the Dry Screw Vacuum Pump is Insufficient during Operation?

First, check whether there is leakage in the intake pipeline, which can be detected by methods such as applying soapy water; secondly, check whether the seals inside the vacuum pump are worn, and if so, replace them in a timely manner; in addition, check whether the motor speed is normal, as a decrease in motor speed caused by motor failure will also affect the vacuum degree.

3. What are the Key Points of the Maintenance of the Conventional Dry Screw Vacuum Pump?

Regularly check the quantity and quality of lubricating oil and replace the grease according to the specified time; check whether the cooling water pipeline is unobstructed and whether there is any water leakage; regularly clean the filter to prevent impurities from entering the pump body; check whether the connection parts of the equipment are loose to ensure the stable operation of the equipment.

4. How to Realize the Remote Control Function of the Dry Screw Vacuum Pump?

By installing an intelligent control system, connect the vacuum pump to the remote control terminal and use network technology to achieve data transmission. Operators can monitor the operating parameters of the equipment in real - time through terminals such as computers or mobile phones and perform operations such as starting, stopping, and adjusting the speed.

5. How to Ensure Compliance with Pharmaceutical Production Specifications when the Conventional Dry Screw Vacuum Pump is Applied in the Pharmaceutical Industry?

Its oil - free and pollution - free characteristics themselves meet the cleanliness requirements of pharmaceutical production. In addition, the materials and surface treatment of the equipment should meet the standards of the pharmaceutical industry, and the equipment should be regularly cleaned and disinfected to ensure that it does not affect the quality of drugs.

6. What are the Requirements for the Foundation during the Installation of the Dry Screw Vacuum Pump?

The foundation should have sufficient strength and stability to withstand the vibration and weight generated during the operation of the equipment. The flatness error of the foundation should be controlled within the specified range to ensure the levelness of the equipment installation and avoid operating failures caused by equipment tilting.

7. What Factors will Affect the Pumping Rate of the Conventional Dry Screw Vacuum Pump?

Motor speed, gas temperature, gas composition, and pipeline resistance will all affect the pumping rate. When the motor speed decreases, the pumping rate will follow suit; if the gas temperature is too high, the gas volume will expand, reducing the pumping efficiency; if the gas contains impurities or viscous substances, it may block the internal channels of the pump body; excessive pipeline resistance will hinder gas flow and also reduce the pumping rate.

8. In What Aspects are the Advantages of the Dry Screw Vacuum Pump Reflected Compared with Other Types of Vacuum Pumps?

Compared with water - ring pumps and reciprocating pumps, the dry screw vacuum pump has a higher vacuum degree, is oil - free and pollution - free, and can meet higher - requirement processes; compared with other dry vacuum pumps, it has complete specifications, a wider application range, high - efficiency and stability, easy maintenance, and lower operating costs.

9. In Which Specific Links is the Conventional Dry Screw Vacuum Pump Mainly Applied in the Photovoltaic Industry?

It is mainly applied in the silicon wafer crystal pulling process to maintain the vacuum state in a high - temperature environment and ensure the growth quality of silicon wafers; in the battery module packaging link, rapid gas extraction realizes vacuum packaging, improving the stability and service life of battery modules.

10. What is the Relationship between the Price and Performance of the Dry Screw Vacuum Pump?

Although the initial purchase price may be relatively high, considering factors such as the improvement in production efficiency, reduction in maintenance costs, and long service life brought about by its high performance, in the long run, it has a higher cost - performance ratio and can save the overall operating costs for enterprises.
