KYKY FF160/700 bearings

Technical Manual for Custom Bearings in KYKY FF160/700 Turbomolecular Pumps

1. Product Value Proposition

Engineered specifically for KYKY FF160/700 vacuum pumps, our custom bearings offer:

100% OEM compatibility

Material customization (stainless steel/ceramic hybrid options)

P4-grade ultra precision machining

Vacuum-optimized low-vapor lubricants

High-temperature resistance (-50℃ to +180℃)

2.Precision Technical Specifications

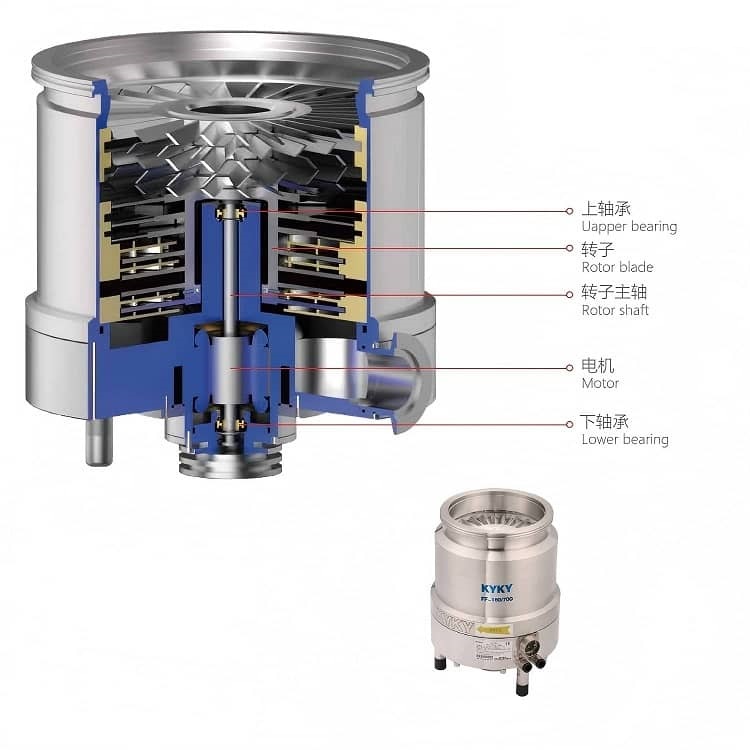

Parameter	Upper Bearing (U-700C)	Lower Bearing (L-700C)	Technical Notes
Bearing Type	Angular Contact	Deep Groove	Special contact angle design
Bore Tolerance(mm)	18±0.002	20±0.002	Ultra-precision grinding
OD Tolerance(mm)	40±0.003	45±0.003	Mirror-grade polishing
Width Tolerance(mm)	12±0.1	14±0.1	Optimized structural strength
Speed Limit(rpm)	42,000	36,000	Under grease lubrication
Dynamic Load(kN)	7.8	8.5	ISO 281 standard
Static Load(kN)	4.2	5	1.8x safety factor
Grease Type	KYKY-VG9 Special Grease	KYKY-VG9 Special Grease	Vapor pressure <3×10⁻¹⁰Pa
Clearance Grade	C3	C3	High-temperature operation

3. Application Case Studies

Case 1: PV Coating Equipment Vacuum System

Issue: Standard bearings corroded within 3 months in process gas environment

Solution: Stainless steel base + PTFE coated bearings

Result: 18-month service life, 60% reduction in downtime

Case 2: Research-Grade Mass Spectrometer Maintenance

Challenge: Required UHV (10⁻⁸Pa) and low-vibration bearings

Custom Solution: Ceramic hybrid bearings + special damping design

Outcome: 45% noise reduction, 30% sensitivity improvement

4. Expert Q&A (10 Critical Questions)

Q1: What is the production lead time?
A: 3-4 weeks for standard configurations, 4-6 weeks for special designs (express service available in 10 working days)

Q2: How to verify bearing compatibility?
A: Required information: ① OEM bearing model/drawings ② Shaft/housing dimensions ③ Installation space ④ Operating parameters

Q3: Recommended materials for corrosive environments?
A: Preferred options: ① Stainless steel/ceramic hybrid ② Special coatings ③ Full ceramic bearings (extreme conditions)

Q4: How to adjust bearing preload?
A: Use specialized preload tools: 8-15N for upper bearing, 5-10N for lower bearing (with torque wrench)

Q5: Will lubricant evaporate in UHV?
A: KYKY-VG9 grease maintains vapor pressure below 3×10⁻¹⁰Pa for long-term stability

Q6: How to address abnormal vibration?
A: Recommended steps: ① Spectrum analysis ② Check alignment ③ Adjust preload ④ Replace if necessary

Q7: Can you provide bearing life prediction?
A: Computerized life simulation available based on operational parameters (speed, load, temperature etc.)

Q8: Precautions for bearing removal?
A: Must use proper pullers - no hammering. Check shaft roundness (<0.005mm deviation) after removal

Q9: Storage requirements?
A: Store in controlled environment (20±5℃, RH<40%), clean and free of corrosive gases

Q10: On-site installation support?
A: Available: ① Installation guidance ② Vibration testing ③ Operational commissioning

Conclusion

Custom KYKY bearings deliver high precision, durability, and excellent heat resistance, making them the ideal choice for KYKY FF160/700 vacuum pumps. Whether for industrial manufacturing or scientific research, they provide a reliable bearing solution. For more information or to place an order, contact our sales team today!
