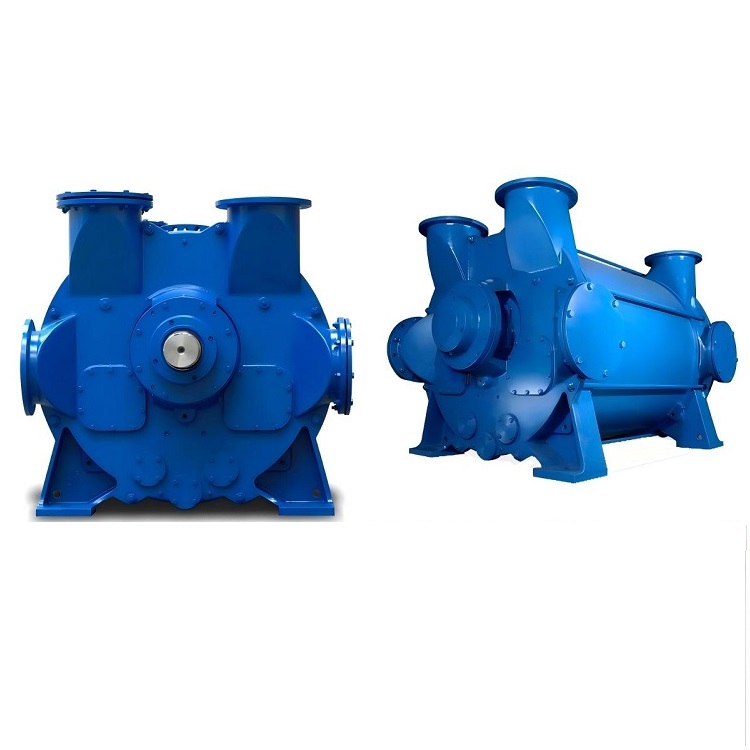

2BE3 Series Water Ring Vacuum Pump: A Robust and Versatile Solution

Product Introduction



Features

1. Inspection - friendly Design: Large inspection openings on both sides of the pump cover simplify the process of checking for gaps, corrosion, and fouling.
2. Installation Versatility: Reserved top and side suction and exhaust flanges with identical diameters provide enhanced flexibility during on - site installation.
3. Premium Bearings: Imported bearings ensure accurate impeller positioning and stable operation of the 2BE3 vacuum pump.
4. Rugged Impeller: Constructed from ductile iron casting or a combination of steel and stainless - steel plates, the impeller can withstand harsh working conditions, thus extending the pump's lifespan.
5. Durable Body: The pump body, made of steel or stainless - steel plates, contributes to long - term reliability.
6. Long - lasting Shaft Sleeve: The stainless - steel shaft sleeve, crafted by our company, has a lifespan five times longer than that of standard materials.
7. Efficient Pulley (for Belt - drive): The high - precision taper - sleeve pulley offers reliable operation, extended belt life, and easy disassembly.
8. Space - saving and Quiet: The upper - mounted air - water separator not only saves space but also effectively reduces noise.
9. Quality Castings: All castings are made of resin - sand casting with excellent surface quality, eliminating the need for greasing and improving heat dissipation.
10. Leak - proof Operation: Imported mechanical seals (optional) guarantee leak - free performance during long - term operation.

Product Details

Drive Compatibility: Compatible with a diverse range of drive devices such as belt drive, reduction gearbox, synchronous motor, and variable frequency governor. It also supports a series operation mode, where a single motor can drive up to four pumps in series, optimizing space utilization

Dual - functionality: When equipped with an intermediate partition plate, and if the suction pressure difference between the left and right parts of the 2BE3 is less than 80kPa, it can function as two independent vacuum pumps, enhancing operational flexibility.

Key Features

· Medium Capacity Range: Suited for industrial operations requiring moderate suction volumes.

· Energy Efficiency: Minimizes operational costs with optimized power usage.

· Industry-Specific Adaptability: Tailored for food processing, pharmaceutical manufacturing, and more.

· Robust Construction: Withstands demanding industrial environments with durability and reliability.

· Low Maintenance: Designed to reduce downtime and simplify operations.

Keywords

2BE1 medium capacity liquid ring vacuum pump; Liquid ring vacuum pump for food processing; Liquid ring pump for pharmaceutical manufacturing; Liquid ring pump for environmental technology; Liquid ring vacuum pump for plastics industry; Liquid ring pump for paper and printing; Energy-efficient liquid ring pump; Moisture handling vacuum pump; High-performance liquid ring vacuum pump; Industrial liquid ring solutions; Reliable vacuum pump for industries; Vacuum pump for paper manufacturing; Food processing vacuum technology; Environmental vacuum pump solutions; Industrial process vacuum systems;

 Industry-Specific Applications

 Food Processing

· Hygienic and efficient vacuum systems for food production, packaging, and processing.

· Ensures compliance with food safety standards.

 Pharmaceutical Manufacturing

· Reliable vacuum systems for tablet drying, mixing, and packaging.

· Clean and contamination-free vacuum operations.

 Environmental Technology

· Effective for wastewater treatment, vapor recovery, and gas handling.

· Supports sustainable and environmentally compliant operations.

 Plastics Industry

· Vacuum solutions for molding, forming, and extrusion processes.

· Enhances productivity and product quality.

 Paper and Printing

· Moisture control and vacuum-assisted drying for improved efficiency.

· Supports high-speed printing and paper production.

 Advantages

· Energy-efficient operation across diverse industrial applications.

· Customizable solutions to meet specific industry requirements.

· Handles wet and vapor-laden processes with ease.

· Low maintenance design ensures reliability and long-term performance.

    Notes

2BE1 Medium Capacity Liquid Ring Vacuum Pump – Versatile Solutions for Industrial Applications
The 2BE1 liquid ring vacuum pump is a trusted choice for medium-scale industrial processes requiring reliability and efficiency. It excels in industries such as food, pharmaceuticals, plastics, and environmental technology.

Applications:

o Food processing plants.

o Pharmaceutical production facilities.

o Environmental and wastewater treatment systems.

o Plastic molding and extrusion setups.

o Paper and high-speed printing operations.

The image should showcase the pump in action within these industrial settings, highlighting its medium capacity, energy-efficient design, and moisture handling features. Use labels or icons to denote its versatility across industries.
