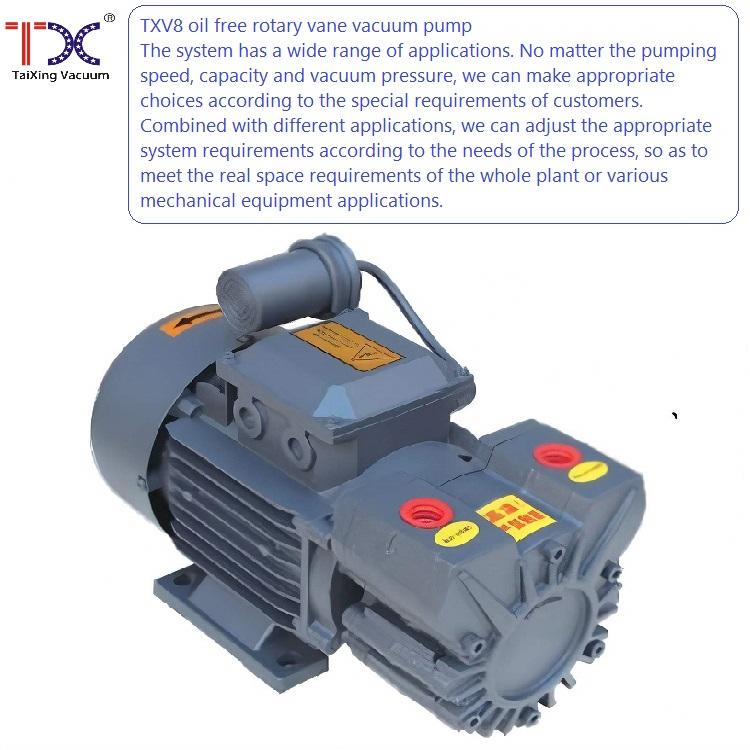

TXV8 Single-Stage Oil-Free Rotary Vane Vacuum Pump for Clean and Quiet Operation
The TXV8 vacuum pump is a single-stage, oil-free rotary vane pump engineered for clean, quiet, and reliable vacuum generation. Its oil-free design eliminates the risk of oil contamination, making it ideal for sensitive applications in laboratories, medical facilities, and light industry. The TXV8 offers a pumping speed of 6.8 m³/h at 50 Hz and 8.6 m³/h at 60 Hz, supported by a robust 0.28 kW motor and quiet operation at only 62 dB.
Key Features of the TXV8 Oil-Free Rotary Vane Vacuum Pump
- Oil-Free Operation
Ensures clean vacuum with zero oil contamination, ideal for high-cleanliness environments.
- Low Noise Level
Operates at just 62 dB, providing a quiet working environment.
- Compact and Lightweight Design
Measures only 271.3 × 138 × 168.5 mm, saving valuable workspace.
- Reliable Performance
Achieves a vacuum of up to 100 mbar, suitable for a wide range of applications.
- User-Friendly Connections
Features G3/8" single-phase inlet and exhaust ports for easy integration.
- Efficient Motor
Equipped with a 0.28 kW motor for stable and energy-efficient operation.
- Flexible Voltage
Supports 220/240V single-phase power, compatible with standard electrical systems.
Applications of the TXV8 Oil-Free Rotary Vane Vacuum Pump
- Laboratories
Provides clean vacuum for filtration, aspiration, and sample preparation.
- Medical Equipment
Powers suction devices, sterilizers, and diagnostic instruments without oil contamination.
- Industrial Processes
Supports light manufacturing, packaging, and automation systems requiring reliable vacuum.
- Environmental Analysis
Used in air sampling and analytical instruments for accurate, contamination-free results.
- Research and Development
Delivers consistent vacuum for experimental setups and prototype testing.

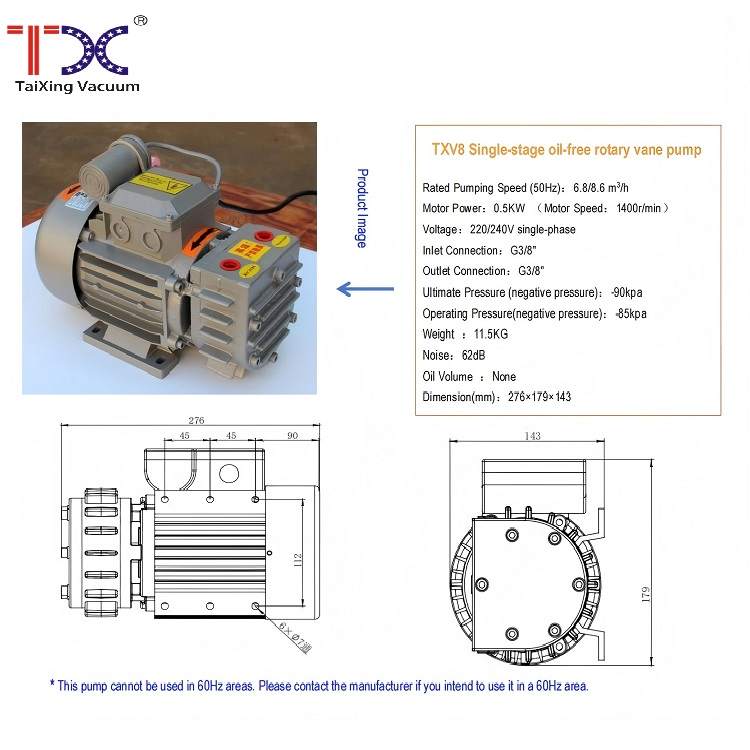

Technical Specifications
| Specification |
Value |
| Product Type |
Single-stage Oil-Free Rotary Vane Vacuum Pump |
| Model |
TXV8 |
| Pumping Speed (50/60Hz) |
6.8 / 8.6 m³/h |
| Motor Power |
0.28 kW |
| Voltage |
220/240V (Single-phase) |
| Inlet Connection |
G3/8" |
| Exhaust Connection |
G3/8" |
| Ultimate Vacuum |
100 mbar |
| Noise Level |
62 dB |
| Dimensions (L×W×H) |
271.3 × 138 × 168.5 mm |
FAQ: TXV8 Oil-Free Rotary Vane Vacuum Pump
- What is the main advantage of oil-free operation?
It eliminates oil contamination, making the pump suitable for cleanroom and sensitive applications.
- How quiet is the TXV8 during operation?
It operates at a low noise level of 62 dB, quieter than most traditional vacuum pumps.
- What is the maximum vacuum achievable?
The TXV8 can achieve a vacuum of up to 100 mbar.
- Is the pump easy to install?
Yes, with standard G3/8" inlet and exhaust ports, installation is straightforward.
- What applications is this pump best suited for?
Laboratories, medical devices, light industrial processes, and any setting requiring oil-free, quiet vacuum.
Conclusion: Clean, Quiet, and Reliable Vacuum Performance
The TXV8 single-stage oil-free rotary vane vacuum pump is the ideal solution for applications where cleanliness, low noise, and maintenance-free operation are essential. Its compact design, efficient motor, and user-friendly features make it a top choice for laboratories, medical facilities, and industrial environments seeking reliable vacuum performance.
