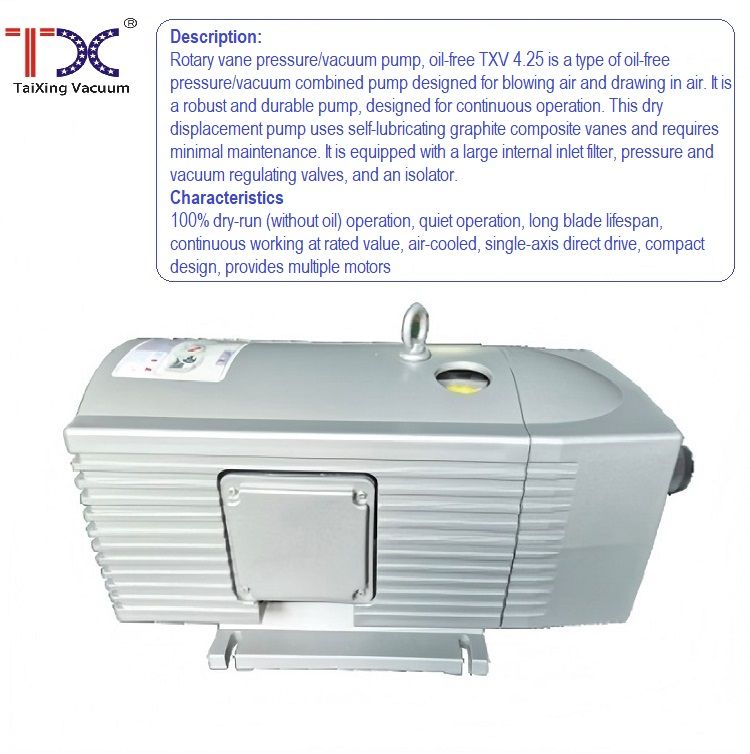

TXV4.25 Dry-Running Rotary Vane Vacuum Pump – High-Performance, Oil-Free Solution
The TXV4.25 from Taixing is a robust, dry-running rotary vane vacuum pump engineered for environments where oil contamination must be avoided. With oil-free technology, integrated air filtration, and simple controls, it provides a clean and efficient solution for vacuum generation in laboratories, industrial production, and scientific research. Its low noise operation and maintenance-free design make it a preferred choice for high-cleanliness applications.
Key Features of the TXV4.25 Vacuum Pump
- Oil-Free, Dry-Running Design
Eliminates oil contamination, ensuring clean vacuum generation and minimal maintenance.
- Rotary Vane Technology
Delivers consistent vacuum performance and reliability.
- Integrated Suction Air Filter
Protects the pump and downstream equipment from airborne particulates.
- Vacuum Regulating Valve & Blow-Off Valve
Enables precise vacuum control and quick system venting.
- Low Noise Operation
Emission sound pressure level as low as ≈57.3–63.9 dB(A) for quiet environments.
- Flexible Motor Options
Available in multiple voltages (single-phase and three-phase) and international certifications (UL, CSA, ISO).
- Compact & Lightweight
Dimensions optimized for easy installation; weight with motor approx. 62–67 lbs.
- Wide Operating Temperature Range
Suitable for ambient temperatures from 41°F to 135°F.
- User-Friendly Connections
Standard G 3/4 vacuum connection for easy integration.
- Maintenance-Free Operation
No oil changes required, reducing downtime and operational costs.
Applications of the TXV4.25 Rotary Vane Vacuum Pump
- Laboratory Vacuum Systems
Ideal for analytical equipment, filtration, and sample preparation.
- Industrial Manufacturing
Supports vacuum forming, packaging, and automation processes.
- Medical & Pharmaceutical
Provides clean vacuum for sterilization, drying, and material handling.
- Food Processing
Ensures contamination-free vacuum for packaging and dehydration.
- Scientific Research
Reliable vacuum source for experiments and pilot projects.
Technical Specifications
| Specification |
Value |
| Pump Type |
Dry-Running Rotary Vane |
| Suction Air Rate (CFM) |
4.9–10.6 (50/60 Hz) |
| Ultimate Vacuum (in. HgV/Torr) |
Up to 29.5 in. HgV / 0.1 Torr |
| Noise Level |
≈57.3–63.9 dB(A) |
| Weight with Motor |
62–67 lbs |
| Vacuum Connection |
G 3/4 |
| Motor Power |
1.0–1.3 hp |
| Voltage Options |
230V, 400V, 460V, etc. |
| Operating Temp Range |
41°F–135°F |

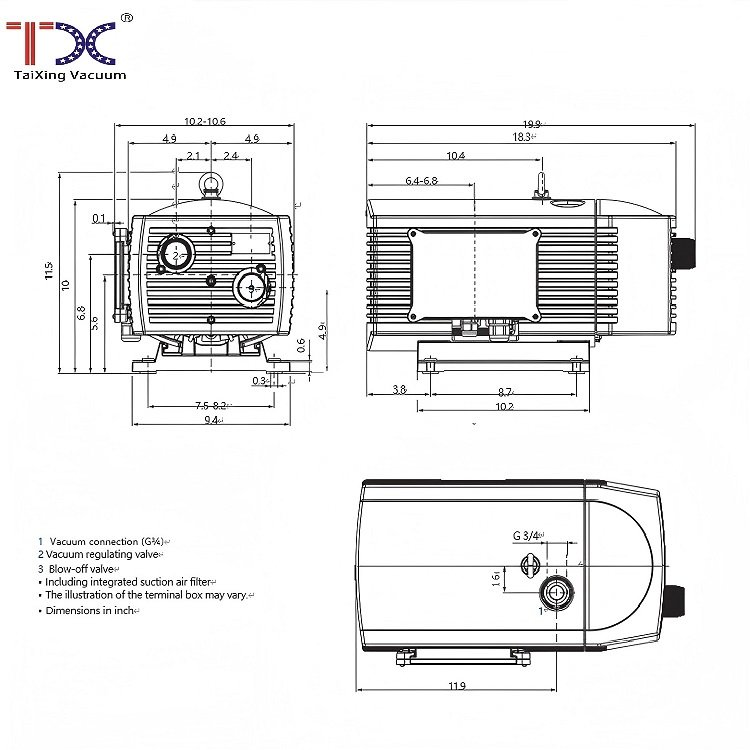

| Dimensions |
Compact, varies by model |
| Certifications |
UL, CSA, ISO, IP54/IP55 |
FAQ: TXV4.25 Dry-Running Rotary Vane Vacuum Pump
- Is the TXV4.25 truly oil-free?
Yes, it operates without oil, preventing contamination and reducing maintenance.
- What is the maximum vacuum level?
Up to 29.5 in. HgV (0.1 Torr).
- Can it be used in cleanroom environments?
Yes, its oil-free design is ideal for high-cleanliness applications.
- Is installation easy?
Standard G 3/4 connection and compact size ensure simple setup.
- What certifications are available?
UL, CSA, ISO, and IP54/IP55 for international compliance.
- How loud is the pump?
Operates at approximately 57–64 dB(A), suitable for quiet environments.
- Does it require regular maintenance?
Maintenance-free design; no oil changes needed.
- What motor options are available?
Multiple voltages and configurations for global compatibility.
- Can it handle continuous operation?
Yes, designed for reliable, long-term use.
- Where can I find more information?
Visit www.taixingpump.com for details.
Conclusion: Clean, Reliable Vacuum Generation for Demanding Applications
The TXV4.25 dry-running rotary vane vacuum pump combines oil-free technology, integrated filtration, and quiet operation for superior performance in industrial, laboratory, and scientific settings. Its maintenance-free design and flexible installation make it the ideal solution for clean, efficient vacuum generation.
For more information, visit www.taixingpump.com
