Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box

Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box
Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box
Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box
Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box
Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box

Semi Automatic Helium Leak Test Chamber Stainless Steel Leak Detection Box

Stainless steel semi automatic helium leak test chamber with direct communication start to the leak detector, multi interface compatibility, minimum test level to minus 12 mbar, and customizable design for varied workpieces and fixtures.

Inquire Now



Semi-automatic Leak Detection Box

Introducing our advanced Semi-automatic Leak Detection Box, a crucial component for precision leak testing in various industrial applications. Designed for seamless integration with your existing leak detectors, this robust unit ensures accurate and efficient leak testing, enhancing the reliability of your products and systems. Explore our range of high-quality vacuum solutions at Taixing Pump.

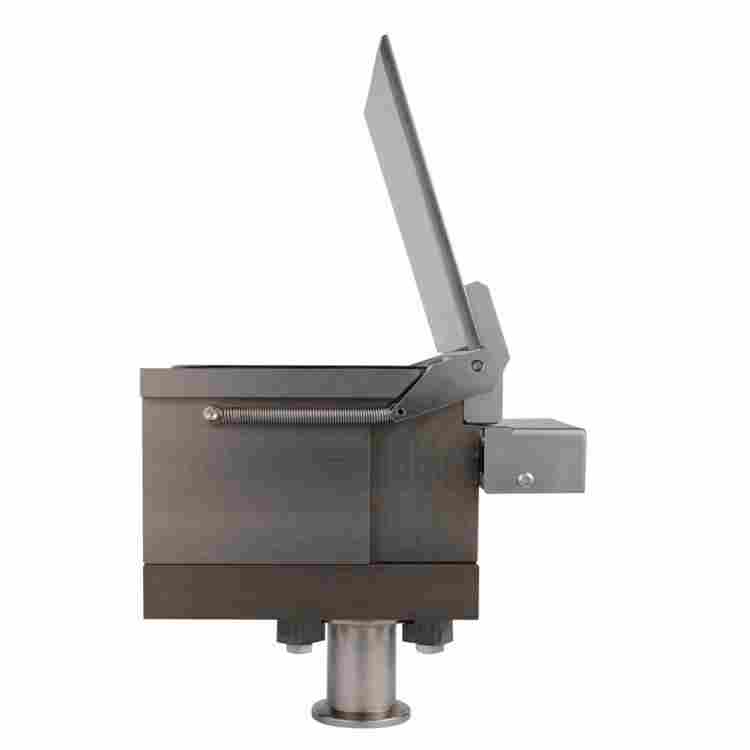

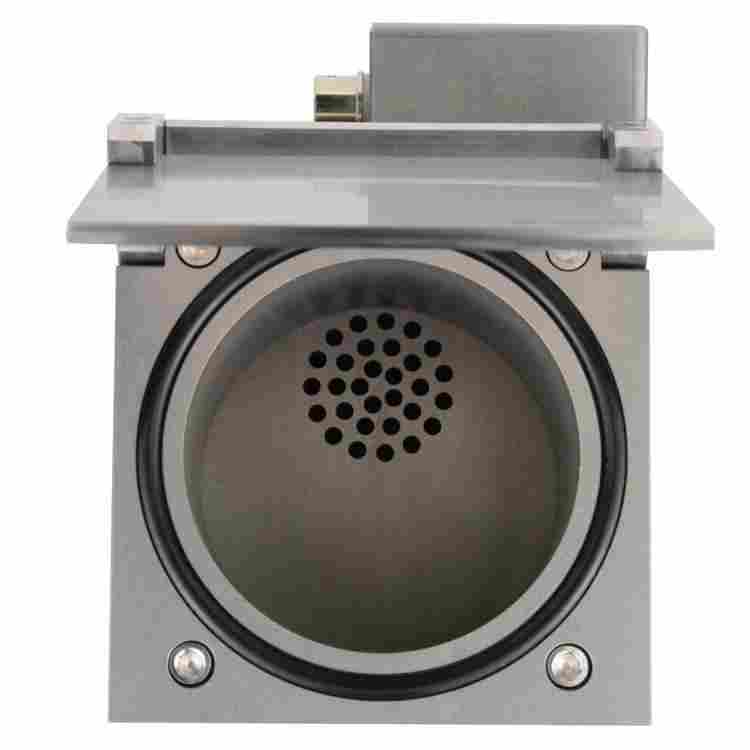

Product Images

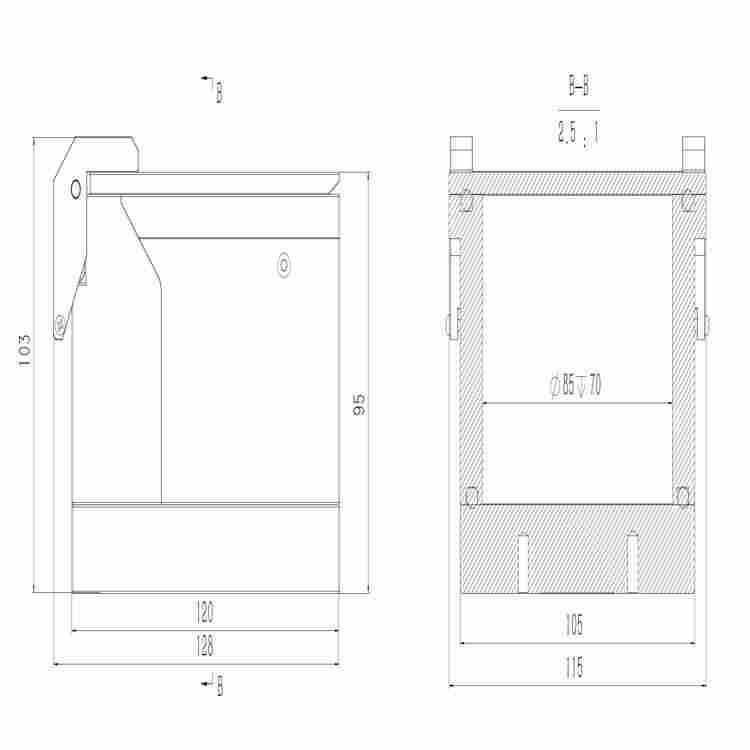

Appearance Parameters

The detailed appearance parameters and dimensions of the Semi-automatic Leak Detection Box are illustrated below, showcasing its compact and ergonomic design for easy integration into various workspaces.

Semi-automatic Leak Detection Box - Appearance Parameters

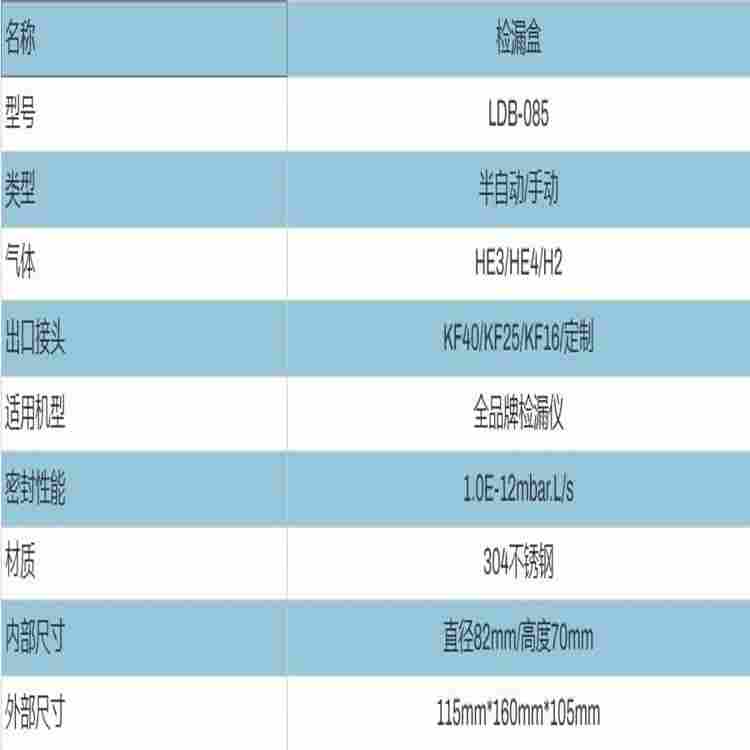

Technical Specifications

Our Semi-automatic Leak Detection Box is engineered with precision to meet demanding industrial standards. Below are the key technical specifications that highlight its performance capabilities and robust construction. For more information on our vacuum accessories, visit our accessories page.

Item Parameter Unit
Leak Detection Range -12 mbar
Interface Type DN16 ISO-KF / DN25 ISO-KF / DN40 ISO-KF -
Operating Temperature 5~40 ℃
Operating Humidity <80 %
Power Supply 220V±10% 50Hz -
Power 100 W
Dimensions (L x W x H) 400x300x250 mm
Weight 15 kg
Material Stainless Steel -

Key Technical Highlights

This Semi-automatic Leak Detection Box is packed with features designed to optimize your leak testing processes:

  • Semi-automatic Operation: Directly communicates with the leak detector to automatically initiate testing upon chamber lid closure, streamlining your workflow.
  • Versatile Interface Options: Supports multiple standard and customized interfaces to ensure compatibility with a wide range of leak detectors from various brands. Discover our comprehensive range of vacuum components.
  • High Sensitivity: Capable of detecting leaks down to -12 mbar, ensuring even the smallest leaks are identified.
  • Customization Support: Offers customizable solutions to accommodate diverse test piece geometries and requirements.
  • Durable Construction: Crafted from high-quality all-stainless steel, guaranteeing extended service life and robust performance in demanding environments. For durable vacuum equipment, trust Taixing Pump's expertise.

Application Scenarios

The versatility and precision of our Semi-automatic Leak Detection Box make it an indispensable tool across numerous industries:

  • Helium leak detection methods using various brands of helium leak detectors.
  • Semiconductor industry, for critical component integrity checks.
  • Vacuum systems, ensuring the reliability and performance of vacuum chambers and components.
  • Aerospace, medical, and material science sectors, where precise leak detection is paramount.

For further details on how our products can enhance your operations, feel free to contact us.
