ASM Helium Leak Detector Internal Calibration Leak Standard Replacement Orifice

ASM Helium Leak Detector Internal Calibration Leak Standard Replacement Orifice

Internal calibrated leak replacement for ASM helium leak detectors, using micro channel capillary design for stable and precise leak rate. Fits ASM182 ASM192 ASM1002 and KF16 based units, with standard or custom fittings, customizable leak rates, and optional gas selection in an all aluminum alloy body.

Inquire Now

Product Details

Internal Calibration Leak for ASM Helium Leak Detector Repair and Replacement

Discover our high-quality internal calibration leak standards, specifically designed for the repair and replacement needs of ASM helium leak detectors. These precision components are crucial for maintaining the accuracy and reliability of your leak detection systems. Our products ensure your equipment operates at peak performance, providing accurate and consistent results for critical applications. For more details on our comprehensive range of vacuum solutions, visit our main page: Vacuum Pump Solutions.

Product Images

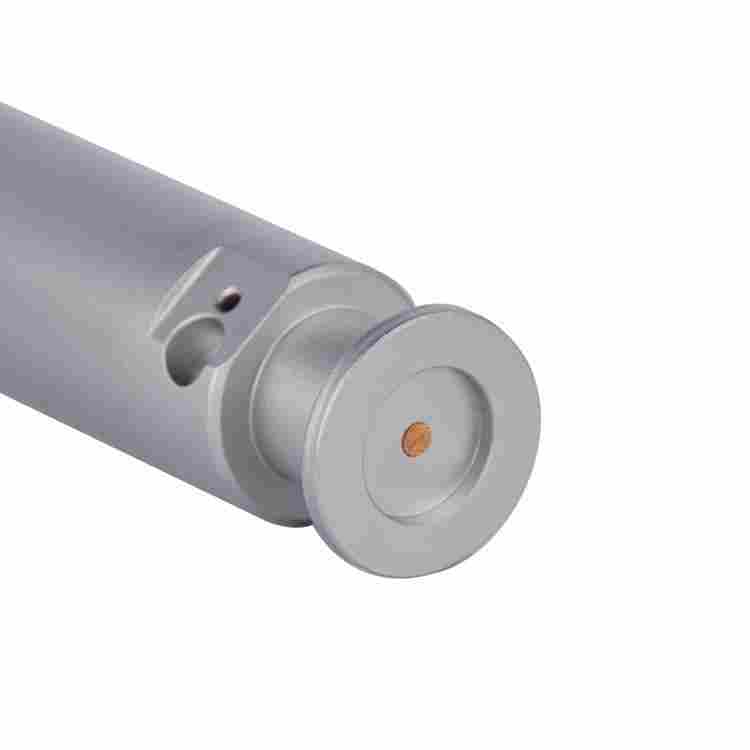

ASM Helium Leak Detector Internal Calibration Leak - Main Image 1

ASM Helium Leak Detector Internal Calibration Leak - Main Image 2

Appearance Parameters

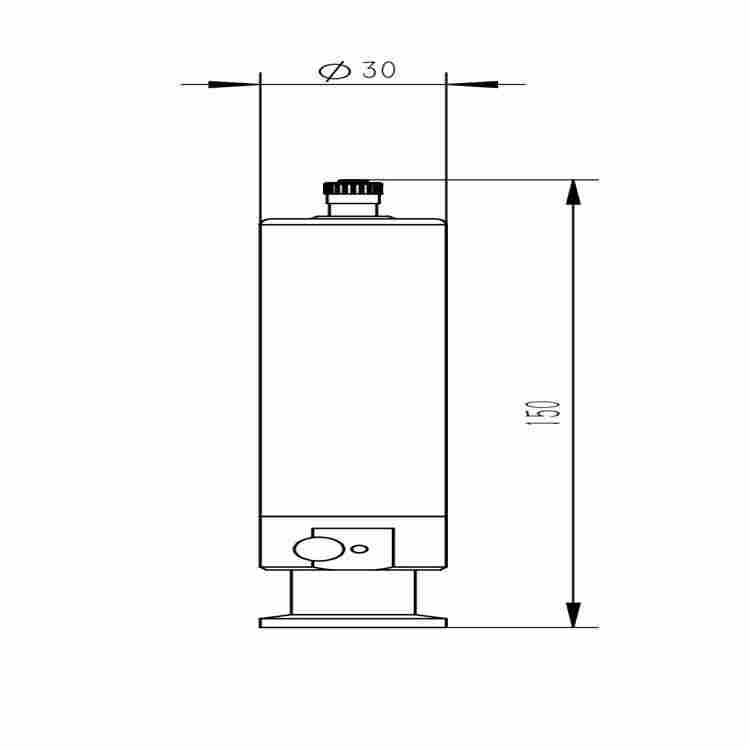

Our internal calibration leaks feature a robust and compact design, engineered for seamless integration into various helium leak detector models. The detailed diagram below illustrates the precise dimensions and structural integrity, ensuring a perfect fit and reliable operation. Each unit is crafted with attention to detail, reflecting our commitment to quality and performance.

Technical Specifications

Engineered for precision and durability, our internal calibration leaks boast superior technical specifications. These parameters ensure optimal performance and compatibility with your existing ASM helium leak detection systems. Explore the table below for detailed technical data.

ASM Helium Leak Detector Internal Calibration Leak - Technical Parameters

Model	Leak Rate (Pa·m³/s)	Interface	Gas Type	Accuracy	Material
TLK-01	1.0E-07	KF16	Helium (He)	±5%	Aluminum Alloy
TLK-02	5.0E-08	KF16	Helium (He)	±5%	Aluminum Alloy
TLK-03	1.0E-06	KF16	Helium (He)	±5%	Aluminum Alloy
TLK-04	1.0E-07	Custom	Helium (He)	±5%	Aluminum Alloy
TLK-05	5.0E-08	Custom	Helium (He)	±5%	Aluminum Alloy
TLK-06	1.0E-06	Custom	Helium (He)	±5%	Aluminum Alloy

Our commitment to quality extends to every component, ensuring reliable operation for your vacuum pump accessories.

Key Features

Micro-channel Capillary Technology: Ensures precise and stable leak rates, providing highly consistent and reliable calibration.
Versatile Interface Options: Available with multiple standard interfaces and support for customized interfaces to match a wide range of application scenarios.
Customizable Leak Rates: We offer the flexibility to customize leak rates to meet your specific testing requirements.
Support for Various Gas Types: Beyond helium, our calibration leaks can be customized for different gas types, expanding their utility.
Full Aluminum Alloy Construction: Manufactured with high-quality aluminum alloy for enhanced durability and an extended service life, reducing the need for frequent replacements.

These features make our internal calibration leaks an ideal choice for maintaining the integrity of your leak detection processes. Learn more about our manufacturing standards at Taixing Pump Manufacturing.

Application Scenarios

Our internal calibration leaks are perfectly suited for a variety of critical applications:

Internal calibration for ASM 182/192/1002 series helium leak detectors during repair and replacement procedures.
Internal calibration for KF16 interface series helium leak detectors, ensuring accurate and consistent performance.

Whether you're performing routine maintenance or critical system overhauls, our calibration leaks provide the accuracy you need. Explore other related products like our vacuum components for a complete solution.
