Pfeiffer Adixen 2G1 Main Board P0520E1 for ASM142 ASM182 ASM192 Leak Detector

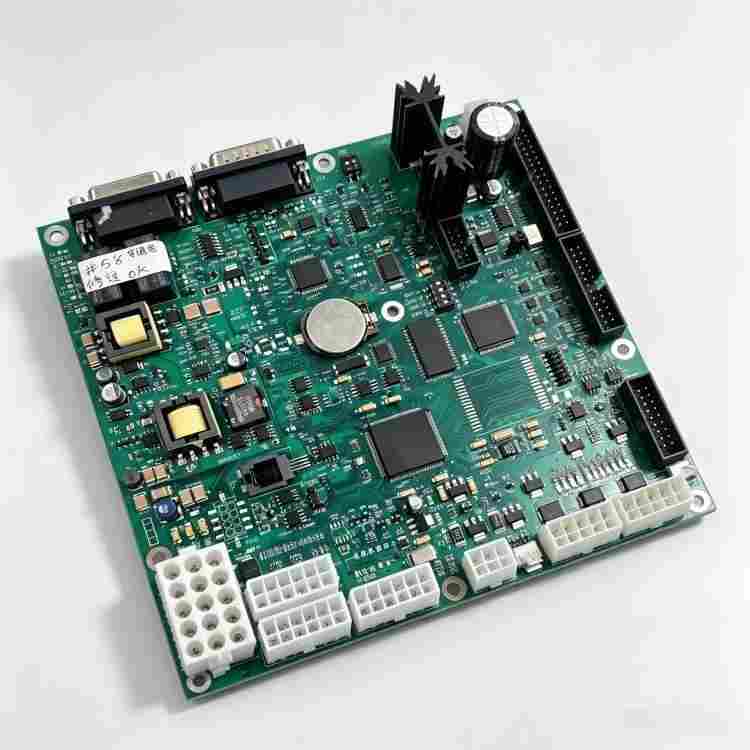

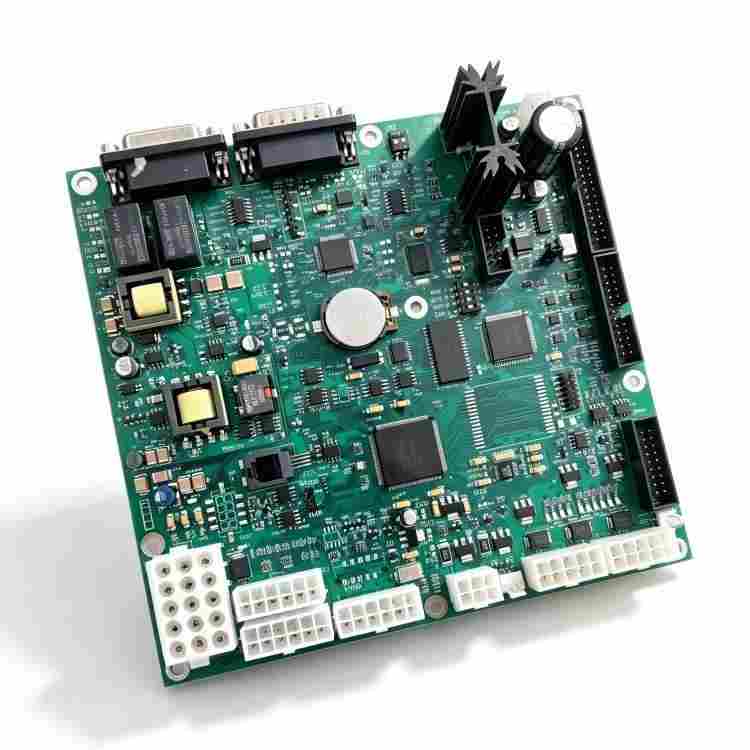

The Pfeiffer Adixen 2G1 Cell Main Board OEM (Part No. P0520E1) is a high-precision electronic control component specifically engineered for the analyzer cells of helium mass spectrometer leak detectors. As a critical part of the vacuum measurement system, this board is designed to match the performance of original equipment, ensuring seamless integration with Adixen ASM series detectors. For professionals seeking reliable leak detector accessories, this main board provides a cost-effective yet high-performance solution for maintaining system sensitivity and accuracy.

Technical Specifications

Core Advantages & Features

• Original-Grade Signal Processing: Utilizing the same 2G.1 signal control architecture as the original manufacturer, this board features a low-noise circuit design. It effectively filters electromagnetic interference, ensuring linear stability across both high and low leak rate ranges, meeting the stringent requirements of semiconductor and new energy industries.
• Universal Compatibility: This single board is compatible with three major oil-sealed helium leak detector models: ASM142, ASM182, and ASM192. This versatility simplifies inventory management for maintenance facilities and repair shops.
• Non-Destructive Installation: The PCB dimensions, mounting hole positions, and multi-channel wiring terminals are a 1:1 replica of the original P0520E1. It allows for a "plug-and-play" replacement without the need for cutting wires, welding, or modifying the analyzer chamber.
• Industrial-Grade Durability: Built with high-temperature resistant and anti-interference industrial electronic components, the board is designed for 24/7 production line environments. It withstands the electromagnetic noise from vacuum pumps and motors, preventing gain decay or short circuits.
• High-Voltage Protection: Integrated voltage stabilization and current-limiting circuits ensure a steady high-voltage output to the ion source. This protects sensitive leak detector accessories like filaments and electron multipliers from voltage spikes.

Detailed Design & Build

The P0520E1 OEM board is meticulously crafted to address common equipment failures such as sensitivity loss, fluctuating leak rate values, and communication errors within the analyzer cell. By choosing high-quality leak detector accessories, users can significantly reduce maintenance costs and minimize production downtime.

Key Component Areas:

• Main PCB: Complete 2G.1 analyzer control board with component layout identical to the original standard.
• Signal Terminal Zone: Standard multi-channel ribbon cable sockets for direct connection to the ion source, multiplier, and host communication lines.
• High-Voltage Control: Integrated protection components for stable and controllable output voltage.
• Mounting Holes: Precision-aligned screw holes for a perfect fit within the analyzer housing.

Application Scenarios

This main board is essential for various high-tech sectors and maintenance services, including:

1. Maintenance of analyzer cells in semiconductor automation lines using ASM142/182/192 equipment.
2. Airtightness testing for power batteries, valves, and pipeline systems.
3. Repairing laboratory-grade Pfeiffer Adixen oil-sealed vacuum leak detectors.
4. Core spare parts for vacuum equipment repair facilities and leak detector rental providers.
5. Export supply for international leak detector accessories markets.
