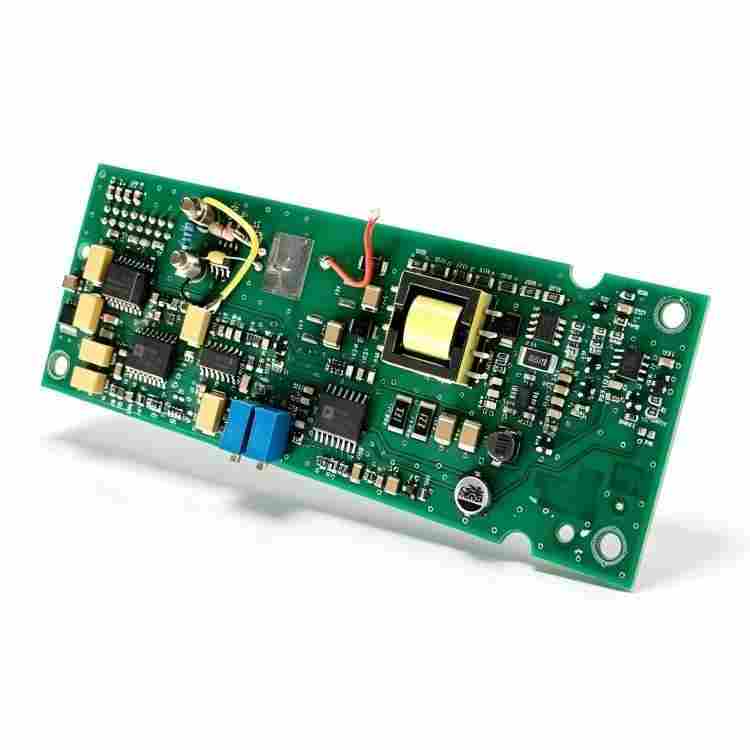

Pfeiffer Adixen 2G1 Cell Main Preamp Board P0492E1 for ASM142 Leak Detector

The Pfeiffer Adixen 2G1 Cell Main Preamp Board (OEM) is a critical electronic component designed specifically for the Adixen / Pfeiffer ASM142 helium mass spectrometer leak detector. As a high-performance replacement part, the P0492E1 is engineered to fully replace the legacy P0320E1 board, ensuring seamless compatibility with both older and newer generations of the ASM142 series.

This upgraded 2G1 ion source preamplifier motherboard is tailored for the analysis chamber system of oil-sealed helium leak detectors. It meets the original factory hardware circuit standards, providing a cost-effective yet high-reliability solution for maintaining your leak detector accessories and ensuring peak performance of the mass spectrometry unit.

Technical Specifications

Core Advantages & Features

• Universal Compatibility: A single P0492E1 board covers the requirements of two different generations. It directly replaces the P0320E1, simplifying inventory management for maintenance facilities and Pfeiffer ASM142 parts suppliers.
• Low-Noise Signal Processing: Equipped with a dedicated low-noise preamplifier chip, the board performs lossless amplification and multi-stage filtering of weak helium ion signals from the electron multiplier. This eliminates baseline drift and numerical fluctuations in leak rate readings.
• High-Voltage Stability: The integrated voltage regulation and current-limiting protection circuit ensure a stable high-voltage output to the ion source. This prevents voltage spikes from damaging sensitive vacuum leak detector components like filaments and multipliers.
• Industrial-Grade Durability: Built with high-temperature resistant and anti-interference electronic components, this board is designed for 24/7 continuous operation in demanding industrial environments, such as semiconductor and new energy production lines.
• Easy Installation: The PCB contour, mounting holes, and multi-channel cable terminals are a 1:1 replica of the original standard. No wiring modifications or chamber alterations are required—simply plug and play to reduce downtime.

Detailed Component Breakdown

The P0492E1 motherboard is meticulously organized into functional zones to ensure maximum efficiency:

• Preamplifier Zone: Features high-precision operational amplifiers for stable linear signal output even at low leak ranges.
• Multi-Channel Terminal Area: Standardized sockets for seamless connection to the ion source, electron multiplier, and main unit communication lines.
• Mounting & Positioning: Precise hole spacing ensures a perfect fit within the ASM142 chassis, matching both P0492E1 and P0320E1 mounting positions.

Application Scenarios

This board is essential for various high-precision industries and service providers:

Whether you are performing routine helium leak detector maintenance or emergency repairs on an ASM142 unit, this OEM-quality board ensures your equipment returns to factory-spec sensitivity and stability.

Related Maintenance Parts

To ensure the comprehensive health of your vacuum system, we recommend pairing this motherboard with other essential leak detector accessories, including turbo molecular pump controllers, ion source filaments, electron multipliers, and vacuum gauges. We provide a one-stop procurement solution for all your Adixen/Pfeiffer maintenance needs.
