TXSL Series Oil-Free Scroll Vacuum Pump - Ultra-Clean Vacuum Solution

This guide explores TXSL scroll vacuum pumps' oil-free design, advanced technical specifications, and diverse applications in sensitive environments. Includes 10 critical FAQs about installation, maintenance, and performance optimization.

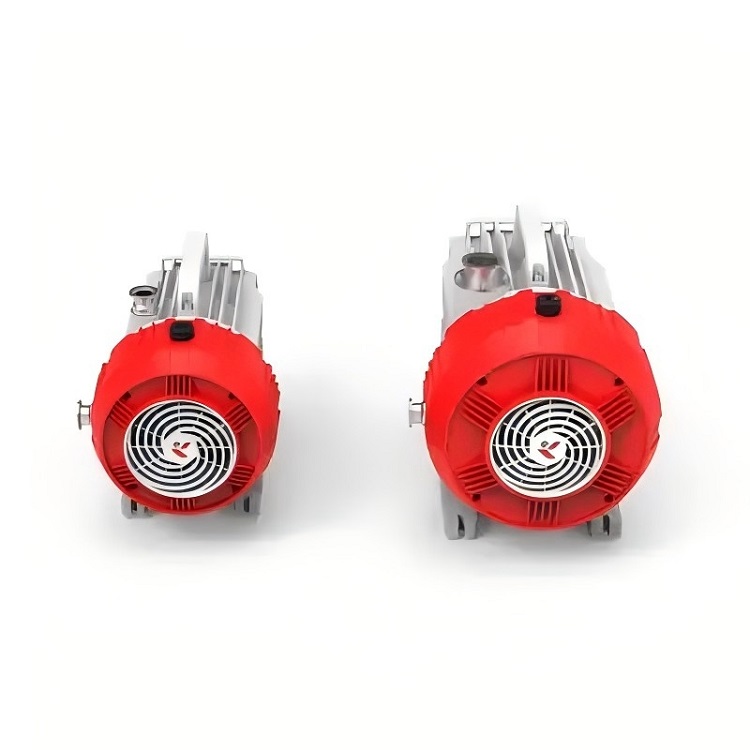

Product Introduction: TXSL Oil-Free Scroll Vacuum Pumps

The TXSL Series represents cutting-edge scroll vacuum technology with complete oil-free operation, making it ideal for contamination-sensitive applications requiring ultra-high vacuum.

Key Advantages

✔ Bellows isolation - Complete separation of compression chamber and bearings
✔ Intelligent control - Built-in controller for speed/pressure regulation
✔ Ultra-high vacuum - Achieves 0.007mbar ultimate pressure
✔ Quiet operation - As low as 53dB(A) noise level
✔ Water vapor handling - Special gas ballast for wet processes

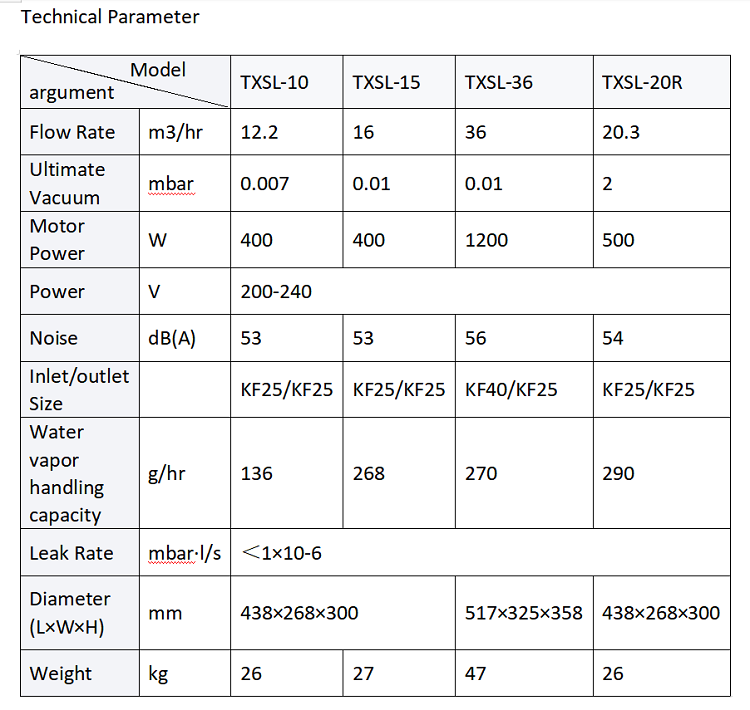

Technical Specifications

Industry Application Cases

Case 1: Semiconductor Fabrication

Leading chip manufacturer achieved:

99.999% cleanroom compatibility

Zero hydrocarbon contamination

3-year maintenance-free operation

Case 2: Medical Mass Spectrometry

Performance highlights:

Stable 0.01mbar operating pressure

40% noise reduction vs competitors

Passed FDA GMP validation

Case 3: Research Laboratory

Key results:

Handled 150g/hr water vapor load

Continuous 8000-hour operation

Reduced energy use by 35%

TXSL Scroll Vacuum Pump FAQs

1. What maintenance is required?

Only annual inspection of bellows and bearings - no oil changes needed.

2. How does bellows isolation work?

Metal bellows completely separate compression chamber from motor bearings.

3. Can it handle corrosive gases?

No - only non-corrosive, non-flammable gases as specified.

4. What's the controller functionality?

Provides speed regulation, current limiting, and pressure control.

5. How often to replace scroll set?

Typically 30,000+ hours in normal operation.

6. Is water cooling available?

Standard models are air-cooled only.

7. What's the startup procedure?

Gradual ramp-up via controller recommended for long life.

8. Can it run continuously?

Yes, designed for 24/7 operation within temperature limits.

9. How to verify performance?

Built-in controller monitors pressure and power draw.

10. What's the warranty period?

2 years standard, extendable to 3 years.

Conclusion

The TXSL Series oil-free scroll vacuum pumps deliver uncompromising clean vacuum performance for critical applications in semiconductor, medical and research environments. Their innovative bellows isolation and intelligent control set new standards for reliability and contamination-free operation.

For facilities requiring ultra-high vacuum without hydrocarbon risk, the TXSL offers the ideal solution. Contact our vacuum specialists today for application engineering support and system integration services.
